KE-3020_KE-3020R-Rev05 - 第139页

- - REF.NO NOTE PARTNO DESCRIP TION Qty 1 400-11046 NOZZLEASSEMBLY500 1 2 400-01339 NOZZLEASSEMBLY501 1 3 400-01340 NOZZLEASSEMBLY502 1 4 400-01341 NOZZLEASSEMBLY503 1 5 400-01342 NOZZLEASSEMB…

- -

66.NOZZLEASSEMBLY&SUPPORTPINCOMPONENTS

3 4

1 2

1 3 1 4 1 5

1 6

1 7

1 2

7 8 9

1 8

1 0

1 1

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-11046 NOZZLEASSEMBLY500 1

2 400-01339 NOZZLEASSEMBLY501 1

3 400-01340 NOZZLEASSEMBLY502 1

4 400-01341 NOZZLEASSEMBLY503 1

5 400-01342 NOZZLEASSEMBLY504 1

6 400-01343 NOZZLEASSEMBLY505 1

7 400-01344 NOZZLEASSEMBLY506 1

8 400-01345 NOZZLEASSEMBLY507 1

9 400-44239 NOZZLEASSEMBLY508C 1

10 400-25165 NOZZLEASSEMBLY509 1

11 E3615-729-0A0 NOZZLEASSEMBLY510 1

12 E3616-729-0A0 NOZZLEASSEMBLY511 1

13 400-10999 NOZZLEASSEMBLY500CVS 1

14 400-10995 NOZZLEASSEMBLY502CVS 1

15 400-10996 NOZZLEASSEMBLY503CVS 1

16 400-10997 NOZZLEASSEMBLY504CVS 1

17 400-10998 NOZZLEASSEMBLY505CVS 1

18 401-05854 NOZZLEASSEMBLY509CVS 1

- -

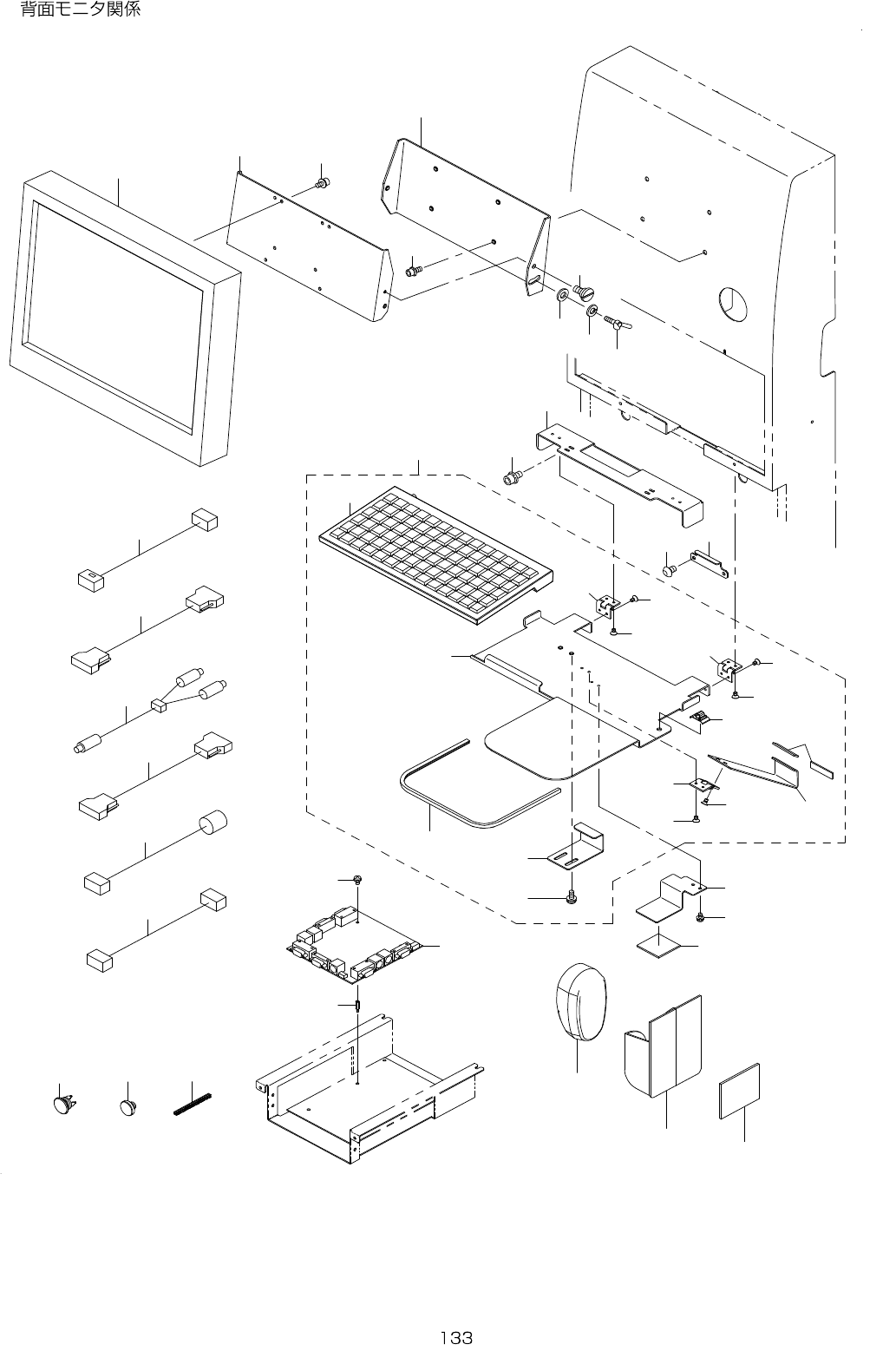

67.REARMONITORCOMPONENTS

2 6

2 9

3 1

3 3

3 2

2 8

3 7

2 2

2 1

2 3

1 3

1 4

1 1

1 0

1 4

1 3

1 4

1 5

1 2

1 6

3 9

3 5

1 7

1 8

1 9

3 8

2 4

2 0

4 1

4 2

4 0

1 4

1 3

1 4

3 6

3 4

3 0

2 7

2 5
