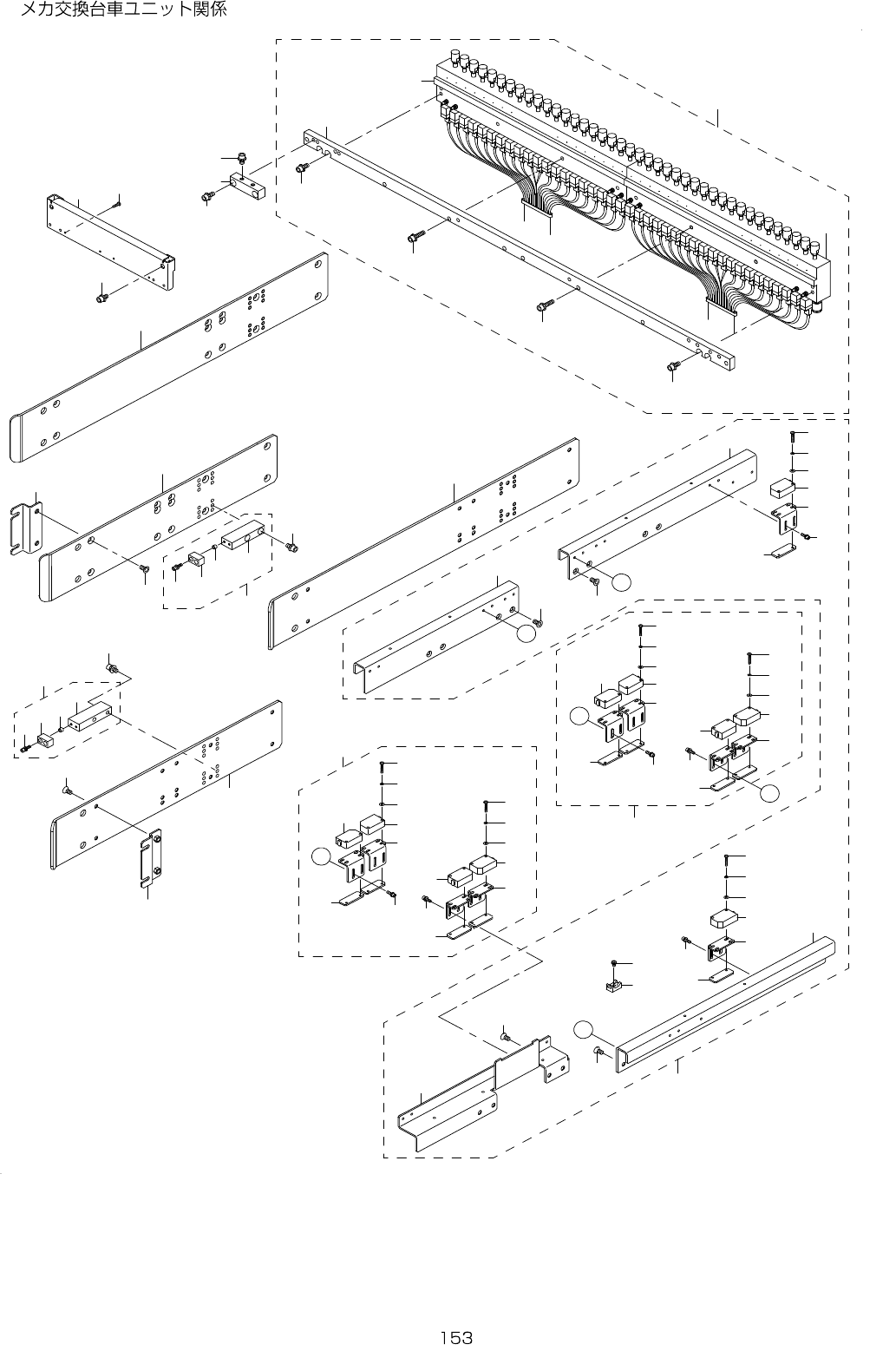

- - 77. MCHANGERTRU CKUNITCOMPON ENTS 7 6 5 4 8 3 8 4 6 5 7 3 9 1 1 1 3 9 1 2 1 4 2 2 1 1 2 0 1 9 1 8 2 2 2 2 2 1 2 1 1 7 1 0 2 3 3 2 3 1 3 3 3 4 3 4 3 4 3 5 3 6 3 8 3 9 2 9 2 9 2 5 2 7 2 6 2 6 2 7 2 5 3 9 2 8 2 8 …

100%1 / 206
- -

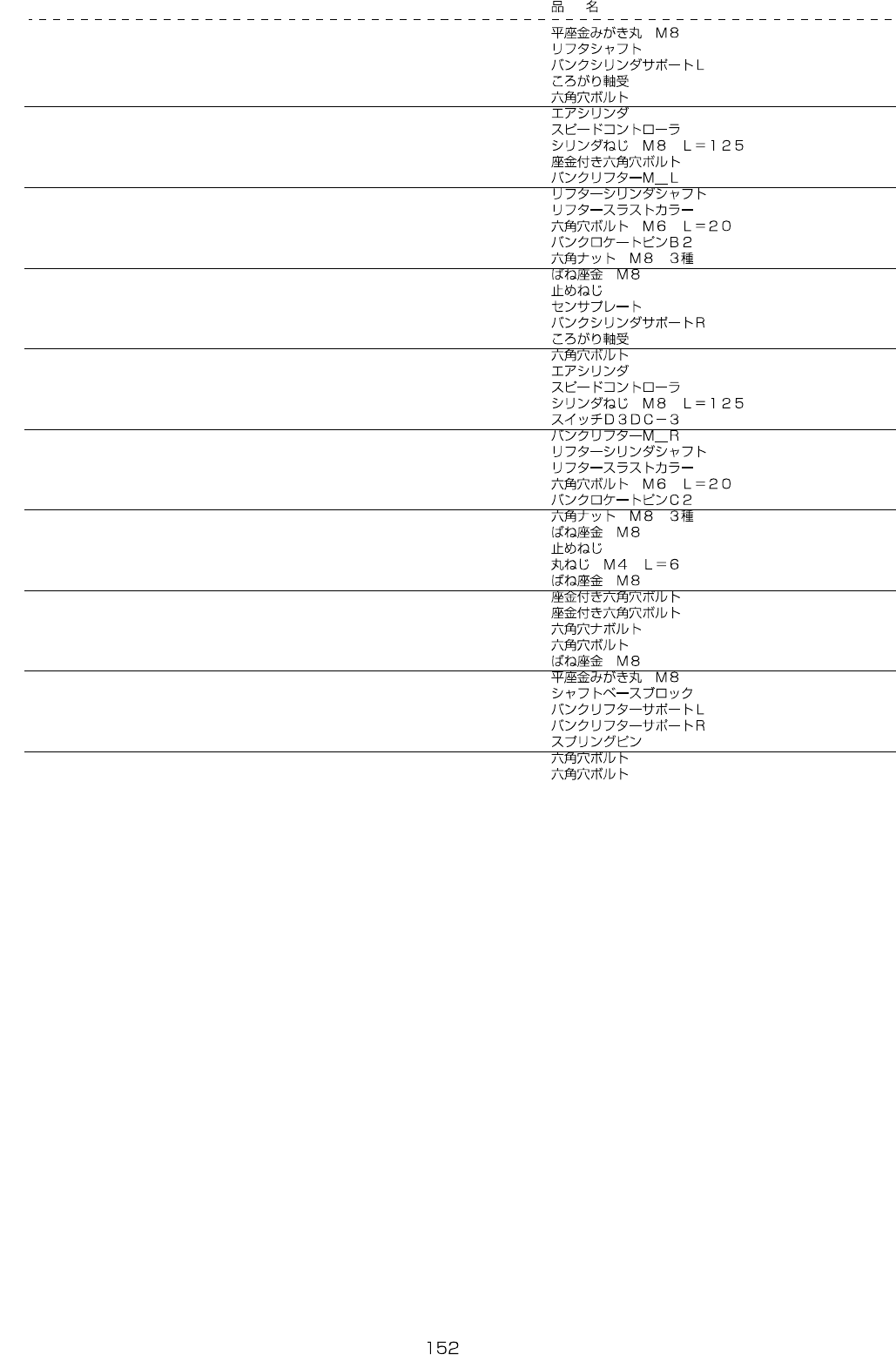

REF.NO NOTE PARTNO DESCRIPTION Qty
1 WP-0841601-SC WASHER8.4X17.4X1.6 8
2 400-93838 LIFTER_SHAFT 4
3 400-71360 BANK_SYL_SPT_L 1
4 SB-8200003-00 BEARING 2
5 SM-6051002-TN BOLT 8
6 PA-6307503-00 AIRCYLINDER 1
7 PC-0152030-00 SPEEDCONTROLLER 2
8 400-93854 CYLINDER_SCREW_M8_L=125 4
9 SL-6083092-TN SCREW 4
10 400-93984 BANK_LIFTER_M_L 1
11 400-00589 LIFTERCYLINDERSHAFT 1
12 E2622-729-000 LIFTERTHRUSTCOLLAR 1
13 SM-1062052-TP SCREWM6L=20 1
14 400-93839 BANK_LOCATE_PIN_B2 1
15 NM-6080003-SC NUTM8 1
16 WS-0820002-KN SPRINGWASHERM8 1
17 SM-8060552-TP SCREWM6L=5 2
18 400-93849 SENSOR_PLATE 2
19 400-71362 BANK_SYL_SPT_R 1
20 SB-8200003-00 BEARING 2
21 SM-6051002-TN BOLT 8
22 PA-6307503-00 AIRCYLINDER 1
23 PC-0152030-00 SPEEDCONTROLLER 2
24 400-93854 CYLINDER_SCREW_M8_L=125 4
25 400-92511 SWITCHD3DC-3 2
26 400-93985 BANK_LIFTER_M_R 1
27 400-00589 LIFTERCYLINDERSHAFT 1
28 E2622-729-000 LIFTERTHRUSTCOLLAR 1
29 SM-1062052-TP SCREWM6L=20 1
30 400-93840 BANK_LOCATE_PIN_C2 1
31 NM-6080003-SC NUTM8 1
32 WS-0820002-KN SPRINGWASHERM8 1
33 SM-8060552-TP SCREWM6L=5 2
34 SM-3040652-TN SCREWM4L=6 4
35 WS-0820002-KN SPRINGWASHERM8 8
36 SL-6083092-TN SCREW 2
37 SL-6084092-TN BOLT 2
38 SM-6083502-TN SCREW 2
39 SM-6085002-TN BOLT 2
40 WS-0820002-KN SPRINGWASHERM8 4
41 WP-0841601-SC WASHER8.4X17.4X1.6 4
42 400-93835 SHAFT_BASE_BLOCK 2
43 400-71356 BANK_LIFTER_SPT_L 1
44 400-71358 BANK_LIFTER_SPT_R 1
45 PS-0500142-KP SPRINGPIN 4
46 SM-6083502-TN SCREW 4
47 SM-6085002-TN BOLT 4
- -
77.MCHANGERTRUCKUNITCOMPONENTS
7
6
5
4
8
3
8
4
6
5
7
3
9
1 1
1 3
9
1 2
1 4
2
2
1
1
2 0
1 9
1 8
2 2
2 2
2 1
2 1
1 7
1 0
2 3
3 2
3 1
3 3
3 4
3 4
3 4
3 5
3 6
3 8
3 9
2 9
2 9
2 5
2 7
2 6
2 6
2 7
2 5
3 9
2 8
2 8
3 0
4 6
4 8
4 5
4 1
5 0
4 9
5 0
4 1
5 7
5 6
5 2
6 0
6 1
4 2
4 4
4 3
4 2
4 4
4 3
4 5
5 9
6 1
5 2
5 3
5 5
5 4
5 6
5 3
5 5
5 4
3 4
3 7
4 7
A
A
B
5 8
B
C
C
4 0
5 1
1 6
2 4
1 5
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93850 ROLLER_GUIDE_F 2
2
#01
400-93851 ROLLER_GUIDE_R 2
3 E2777-721-0A0 BANKSTOPPERASM. 2
4 E2777-721-000 BANKSTOPPER (1)
5 E2778-721-000 STOPPERRUBBER (1)
6 E2779-721-000 STOPPERCOLLAR (2)
7 SL-6031292-TN SCREWM3L=12 (2)
8 SL-6051042-TN SCREW 4
9 SM-1051052-TN PLATESCREWM5L=10 12
10 400-00598 DRIVERBRACKETSUPPORTC 2
11 SL-6051042-TN SCREW 4
12 SL-6051242-TN SCREW 4
13 SL-6051092-TN BOLT 2
14 400-26804 DSCONNECTORBRACKET 1
15 400-93852 ROLLER_GUIDE_SUPPORT_FL 1
16 400-93853 ROLLER_GUIDE_SUPPORT_FR 1
17 400-93831 DRIVECYLINDERUNIT 1
18 400-93843 DRIVER_SUPPORT (1)
19 400-00575 DRIVECYLINDERL (1)
20 400-00576 DRIVECYLINDERR (1)
21 SL-6051292-TN BOLT (2)
22 SL-6052592-TN BOLT (6)
23 SM-4861001-SC SCREWM2.6L=10 4
24 400-93605 SENSORBRASM 1
25 SM-6851602-TN BOLT (4)
26 WP-0280501-SC WASHERM2.6 (4)
27 WS-0270002-KN SPRINGWASHERM2.6 (4)
28 SL-6031092-TN SCREW (4)
29 400-93993 NUT_PLATE (2)
30 400-93986 S_BR_FR (1)
31 400-93987 S_BR_FL (1)
32 400-93988 S_BR_RR (1)
33 400-93989 S_BR_RL (1)
34 SM-1051052-TN PLATESCREWM5L=10 (16)
35 HX-0029400-00 FIXEDBASE (12)
36 SL-4030691-SC SCREWM3L=6 (12)
37 400-92523 FEEDERDETECTSENSOR(EMISSION)ASM (1)
38 400-92524 FEEDERDETECTSENSOR(RECEIVING)ASM (1)
39 400-93991 S_BR_B (2)
40 400-93606 MBANKFSENSORASM 1
41 400-93993 NUT_PLATE (4)
42 SM-6851602-TN BOLT (8)
43 WP-0280501-SC WASHERM2.6 (8)
44 WS-0270002-KN SPRINGWASHERM2.6 (8)
45 SL-6031092-TN SCREW (8)
46 400-92515 FD-FLOAT(FF)EMISSINSENSASM (1)
47 400-92516 FD-FLOAT(FF)RECEIVESENSASM (1)
48 400-92517 FD-FLOAT(FR)EMISSINSENSASM (1)
49 400-92518 FD-FLOAT(FR)RECEIVESENSASM (1)
50 400-93991 S_BR_B (4)
51 400-93608 MBANKRSENSORASM 1
52 400-93993 NUT_PLATE (4)
53 SM-6851602-TN BOLT (8)
54 WP-0280501-SC WASHERM2.6 (8)
55 WS-0270002-KN SPRINGWASHERM2.6 (8)
56 SL-6031092-TN SCREW (8)
57 400-92519 FD-FLOAT(RF)EMISSINSENSASM (1)
58 400-92520 FD-FLOAT(RF)RECEIVESENSASM (1)
59 400-92521 FD-FLOAT(RR)EMISSINSENSASM (1)
60 400-92522 FD-FLOAT(RR)RECEIVESENSASM (1)
61 400-93991 S_BR_B (4)
