- - 78. EFIXEDBAN KUNITCOMPONEN TS(1) 1 2 4 6 2 2 4 7 1 0 9 1 2 1 3 1 6 1 5 3 3 4 4 3 1 7 1 8 1 7 1 8 2 3 1 8 1 7 1 7 1 8 5 8 1 4 1 1

100%1 / 206
- -

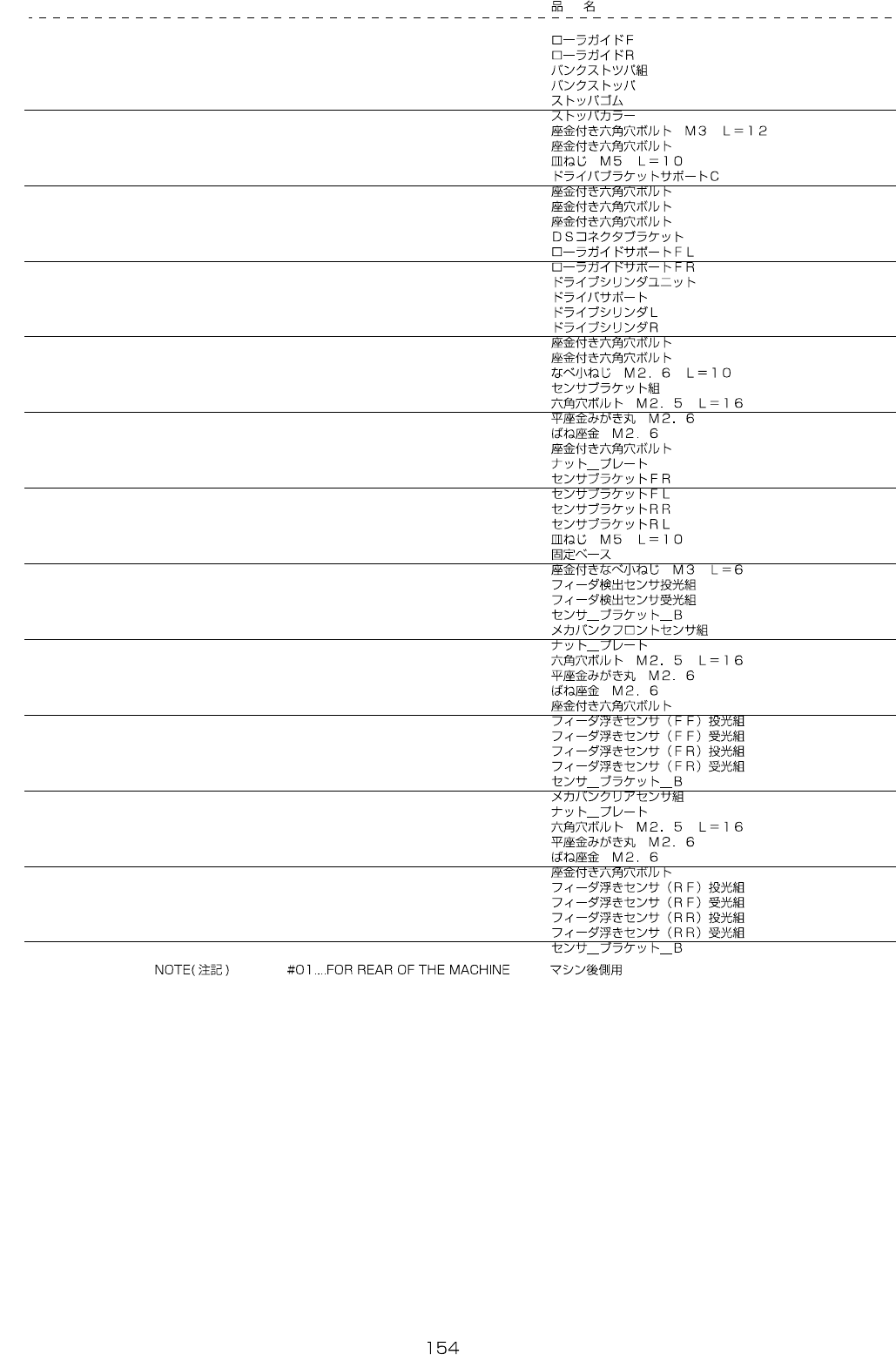

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93850 ROLLER_GUIDE_F 2
2
#01
400-93851 ROLLER_GUIDE_R 2
3 E2777-721-0A0 BANKSTOPPERASM. 2
4 E2777-721-000 BANKSTOPPER (1)
5 E2778-721-000 STOPPERRUBBER (1)
6 E2779-721-000 STOPPERCOLLAR (2)
7 SL-6031292-TN SCREWM3L=12 (2)
8 SL-6051042-TN SCREW 4
9 SM-1051052-TN PLATESCREWM5L=10 12
10 400-00598 DRIVERBRACKETSUPPORTC 2
11 SL-6051042-TN SCREW 4
12 SL-6051242-TN SCREW 4
13 SL-6051092-TN BOLT 2
14 400-26804 DSCONNECTORBRACKET 1
15 400-93852 ROLLER_GUIDE_SUPPORT_FL 1
16 400-93853 ROLLER_GUIDE_SUPPORT_FR 1
17 400-93831 DRIVECYLINDERUNIT 1
18 400-93843 DRIVER_SUPPORT (1)
19 400-00575 DRIVECYLINDERL (1)
20 400-00576 DRIVECYLINDERR (1)
21 SL-6051292-TN BOLT (2)
22 SL-6052592-TN BOLT (6)
23 SM-4861001-SC SCREWM2.6L=10 4
24 400-93605 SENSORBRASM 1
25 SM-6851602-TN BOLT (4)
26 WP-0280501-SC WASHERM2.6 (4)
27 WS-0270002-KN SPRINGWASHERM2.6 (4)
28 SL-6031092-TN SCREW (4)
29 400-93993 NUT_PLATE (2)
30 400-93986 S_BR_FR (1)
31 400-93987 S_BR_FL (1)
32 400-93988 S_BR_RR (1)
33 400-93989 S_BR_RL (1)
34 SM-1051052-TN PLATESCREWM5L=10 (16)
35 HX-0029400-00 FIXEDBASE (12)
36 SL-4030691-SC SCREWM3L=6 (12)
37 400-92523 FEEDERDETECTSENSOR(EMISSION)ASM (1)
38 400-92524 FEEDERDETECTSENSOR(RECEIVING)ASM (1)
39 400-93991 S_BR_B (2)
40 400-93606 MBANKFSENSORASM 1
41 400-93993 NUT_PLATE (4)
42 SM-6851602-TN BOLT (8)
43 WP-0280501-SC WASHERM2.6 (8)
44 WS-0270002-KN SPRINGWASHERM2.6 (8)
45 SL-6031092-TN SCREW (8)
46 400-92515 FD-FLOAT(FF)EMISSINSENSASM (1)
47 400-92516 FD-FLOAT(FF)RECEIVESENSASM (1)
48 400-92517 FD-FLOAT(FR)EMISSINSENSASM (1)
49 400-92518 FD-FLOAT(FR)RECEIVESENSASM (1)
50 400-93991 S_BR_B (4)
51 400-93608 MBANKRSENSORASM 1
52 400-93993 NUT_PLATE (4)
53 SM-6851602-TN BOLT (8)
54 WP-0280501-SC WASHERM2.6 (8)
55 WS-0270002-KN SPRINGWASHERM2.6 (8)
56 SL-6031092-TN SCREW (8)
57 400-92519 FD-FLOAT(RF)EMISSINSENSASM (1)
58 400-92520 FD-FLOAT(RF)RECEIVESENSASM (1)
59 400-92521 FD-FLOAT(RR)EMISSINSENSASM (1)
60 400-92522 FD-FLOAT(RR)RECEIVESENSASM (1)
61 400-93991 S_BR_B (4)
- -

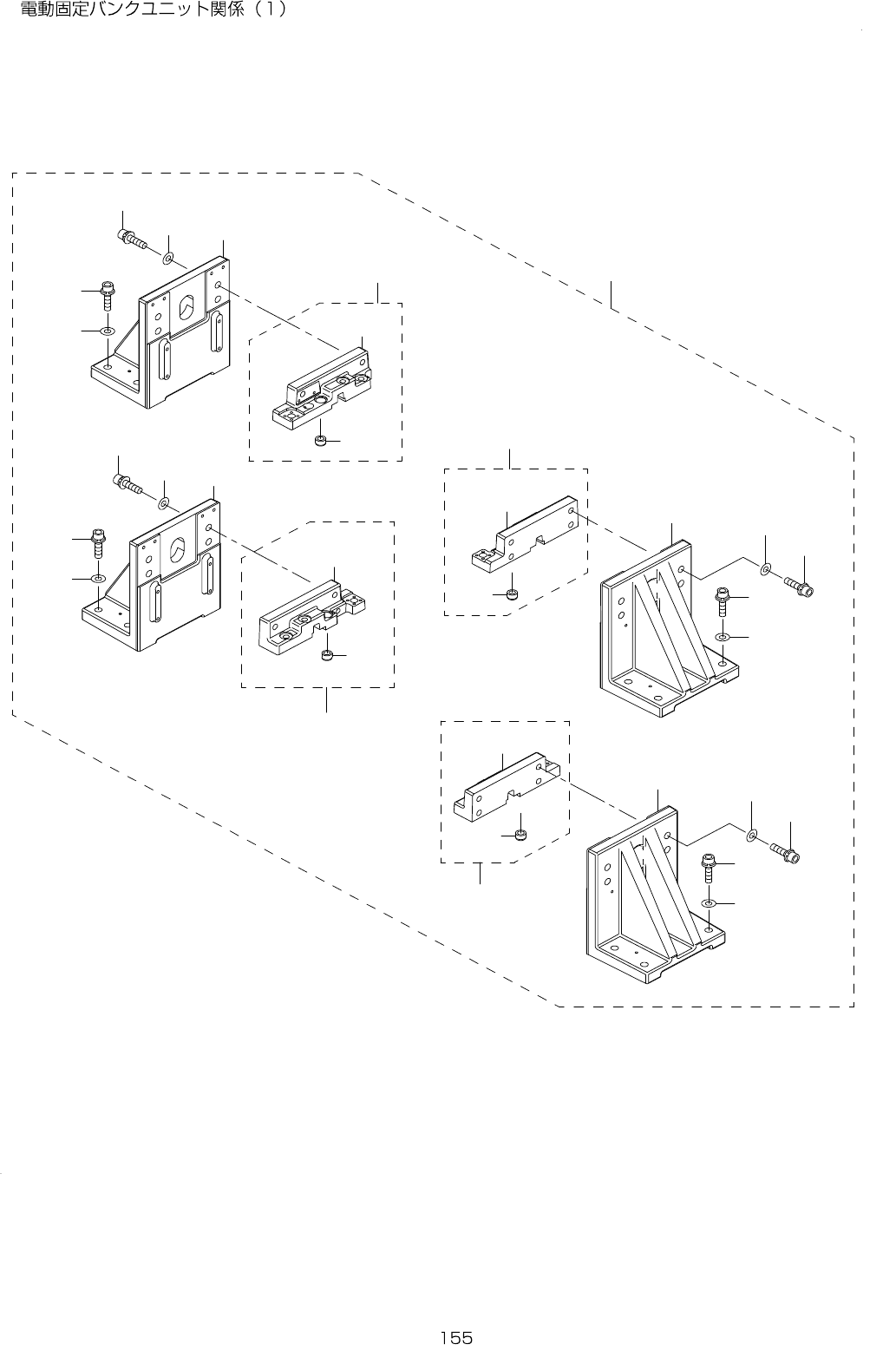

78.EFIXEDBANKUNITCOMPONENTS(1)
1
2
4
6
2
2
4
7
1 0
9
1 2
1 3
1 6
1 5
3
3
4
4
3
1 7
1 8
1 7
1 8
2
3
1 8
1 7
1 7
1 8
5
8
1 4
1 1
- -

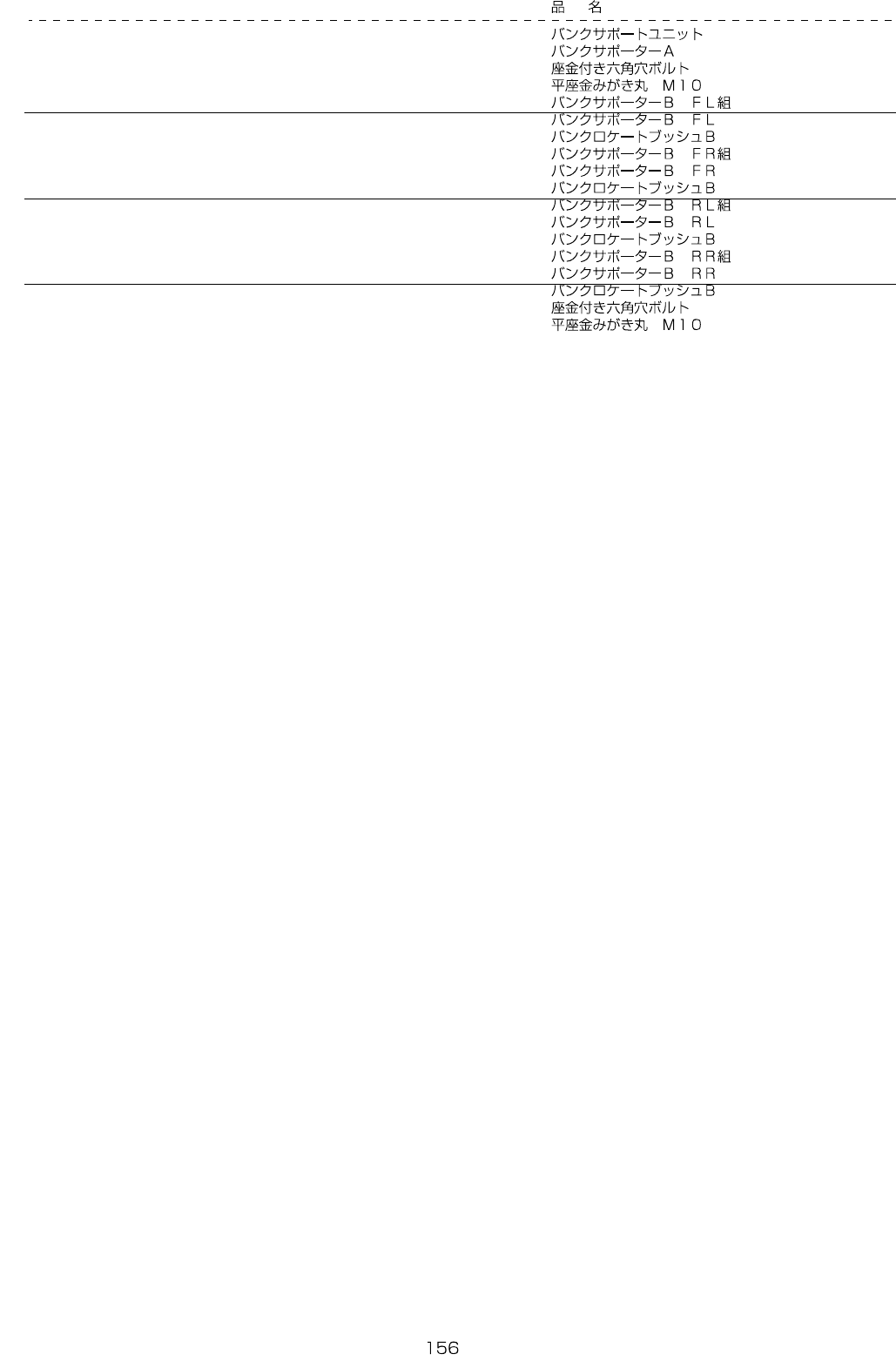

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93596 BANKSUPPORTUNIT 1
2 400-71339 BANK_SUPPORTER_A (4)
3 SL-6104042-TN BOLT (16)
4 WP-1052001-SC WASHER10,5X21X2 (16)
5 400-93613 BANK_SUPPORTER_B_FL_ASM (1)
6 400-71341 BANK_SUPPORTER_B_FL (1)
7 E2623-721-000 BANKLOCATEBUSHB (1)
8 400-93614 BANK_SUPPORTER_B_FR_ASM (1)
9 400-71344 BANK_SUPPORTER_B_FR (1)
10 E2623-721-000 BANKLOCATEBUSHB (1)
11 400-93615 BANK_SUPPORTER_B_RL_ASM (1)
12 400-71345 BANK_SUPPORTER_B_RL (1)
13 E2623-721-000 BANKLOCATEBUSHB (1)
14 400-93616 BANK_SUPPORTER_B_RR_ASM (1)
15 400-71342 BANK_SUPPORTER_B_RR (1)
16 E2623-721-000 BANKLOCATEBUSHB (1)
17 SL-6104042-TN BOLT (16)
18 WP-1052001-SC WASHER10,5X21X2 (16)
