KE-3020_KE-3020R-Rev05 - 第186页

- - 90. CONNECTORBRA CKETCOMP ONENTS(TYPEMFIXE DBANK) 2 4 1 6 2 3 1 7 4 3 5 6 7 9 1 0 1 1 1 2 1 3 1 4 1 5 8 9 8 2 2 1 9 2 0 2 1 2 9 2 8 1 8 2 7 2 6 2 7 2 5 1 2

100%1 / 206
- -

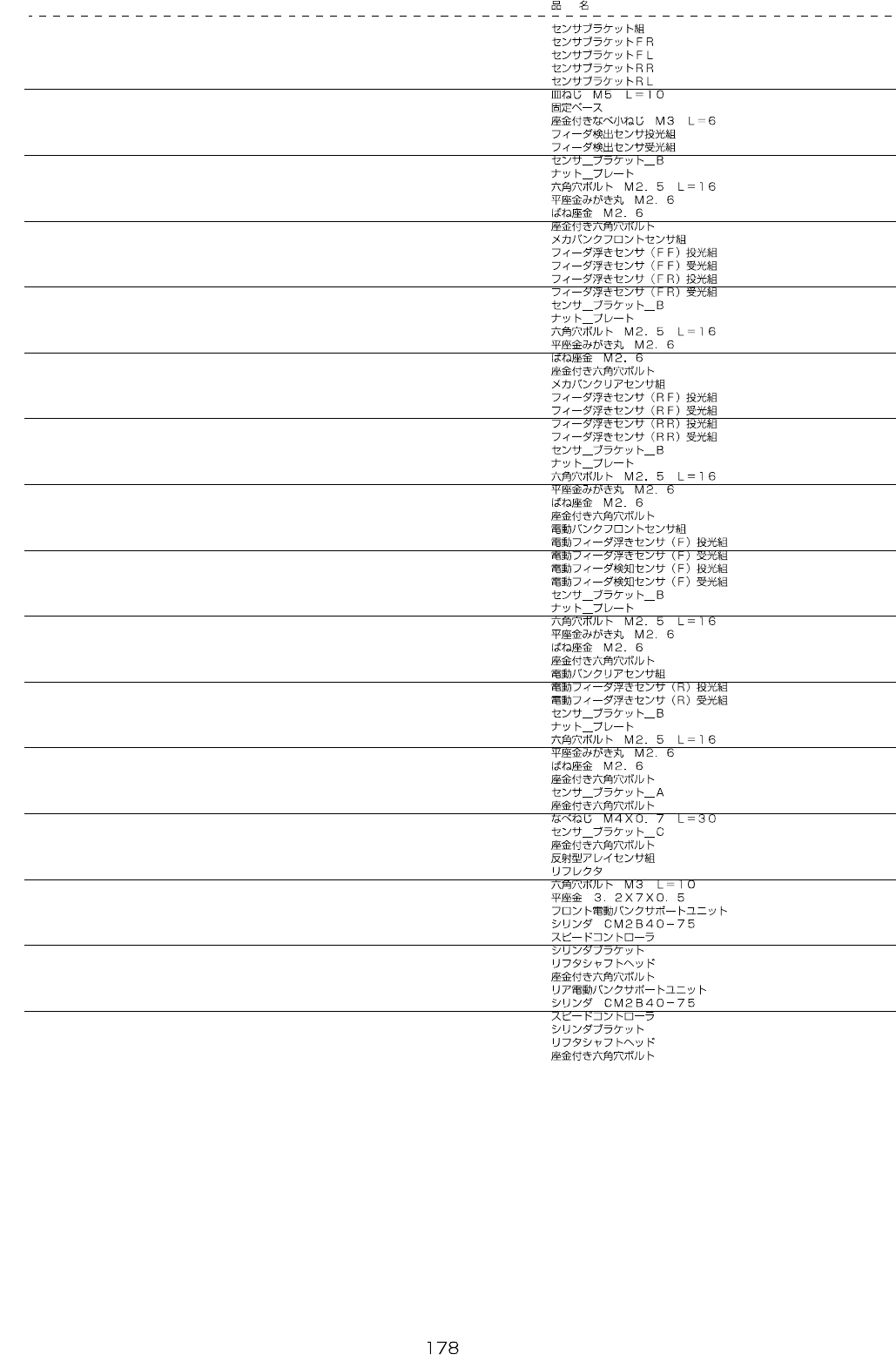

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93605 SENSORBRASM 1
2 400-93986 S_BR_FR (1)
3 400-93987 S_BR_FL (1)
4 400-93988 S_BR_RR (1)
5 400-93989 S_BR_RL (1)
6 SM-1051052-TN PLATESCREWM5L=10 (16)
7 HX-0029400-00 FIXEDBASE (12)
8 SL-4030691-SC SCREWM3L=6 (12)
9 400-92523 FEEDERDETECTSENSOR(EMISSION)ASM (1)
10 400-92524 FEEDERDETECTSENSOR(RECEIVING)ASM (1)
11 400-93991 S_BR_B (2)
12 400-93993 NUT_PLATE (2)
13 SM-6851602-TN BOLT (4)
14 WP-0280501-SC WASHERM2.6 (4)
15 WS-0270002-KN SPRINGWASHERM2.6 (4)
16 SL-6031092-TN SCREW (4)
17 400-93606 MBANKFSENSORASM 1
18 400-92515 FD-FLOAT(FF)EMISSINSENSASM (1)
19 400-92516 FD-FLOAT(FF)RECEIVESENSASM (1)
20 400-92517 FD-FLOAT(FR)EMISSINSENSASM (1)
21 400-92518 FD-FLOAT(FR)RECEIVESENSASM (1)
22 400-93991 S_BR_B (4)
23 400-93993 NUT_PLATE (4)
24 SM-6851602-TN BOLT (8)
25 WP-0280501-SC WASHERM2.6 (8)
26 WS-0270002-KN SPRINGWASHERM2.6 (8)
27 SL-6031092-TN SCREW (8)
28 400-93608 MBANKRSENSORASM 1
29 400-92519 FD-FLOAT(RF)EMISSINSENSASM (1)
30 400-92520 FD-FLOAT(RF)RECEIVESENSASM (1)
31 400-92521 FD-FLOAT(RR)EMISSINSENSASM (1)
32 400-92522 FD-FLOAT(RR)RECEIVESENSASM (1)
33 400-93991 S_BR_B (4)
34 400-93993 NUT_PLATE (4)
35 SM-6851602-TN BOLT (8)
36 WP-0280501-SC WASHERM2.6 (8)
37 WS-0270002-KN SPRINGWASHERM2.6 (8)
38 SL-6031092-TN SCREW (8)
39 400-93607 EBANKFSENSORASM 1
40 400-92525 E-FD-FLOAT(F)EMISSINSENSASM (1)
41 400-92526 E-FD-FLOAT(F)RECEIVESENSASM (1)
42 400-92529 E-FD-DETECT(F)EMISSINSENSASM (1)
43 400-92530 E-FD-DETECT(F)RECEIVESENSASM (1)
44 400-93991 S_BR_B (4)
45 400-93993 NUT_PLATE (4)
46 SM-6851602-TN BOLT (8)
47 WP-0280501-SC WASHERM2.6 (8)
48 WS-0270002-KN SPRINGWASHERM2.6 (8)
49 SL-6031092-TN SCREW (8)
50 400-93609 EBANKRSENSORASM 1
51 400-92527 E-FD-FLOAT(R)EMISSINSENSASM (1)
52 400-92528 E-FD-FLOAT(R)RECEIVESENSASM (1)
53 400-93991 S_BR_B (2)
54 400-93993 NUT_PLATE (2)
55 SM-6851602-TN BOLT (4)
56 WP-0280501-SC WASHERM2.6 (4)
57 WS-0270002-KN SPRINGWASHERM2.6 (4)
58 SL-6031092-TN SCREW (4)
59 400-93990 S_BR_A (1)
60 SL-6041092-TN SCREW (2)
61 SM-4043001-SF SCREWM4X30 (2)
62 400-93992 S_BR_C (1)
63 SL-6031092-TN SCREW (2)
64 400-97588 REFLEXARRAYSENSORASM (1)
65 400-93804 REFLEKTOR (1)
66 SM-6031002-TN SCREWM3L=10 (2)
67 WP-0320501-SC WASHERM3 (2)
68 400-93601 FRONTEBANKSUPPORTUNIT 1
69 400-94347 CYLINDERCM2B40-75 (2)
70 PC-0152030-00 SPEEDCONTROLLER (4)
71 400-93841 CYLINDER_BR (4)
72 400-93842 LIFTER_SHAFT_HEAD (2)
73 SL-6061292-TN SCREW (8)
74 400-93602 REAREBANKSUPPORTUNIT 1
75 400-94347 CYLINDERCM2B40-75 (2)
76 PC-0152030-00 SPEEDCONTROLLER (4)
77 400-93841 CYLINDER_BR (4)
78 400-93842 LIFTER_SHAFT_HEAD (2)
79 SL-6061292-TN SCREW (8)
- -

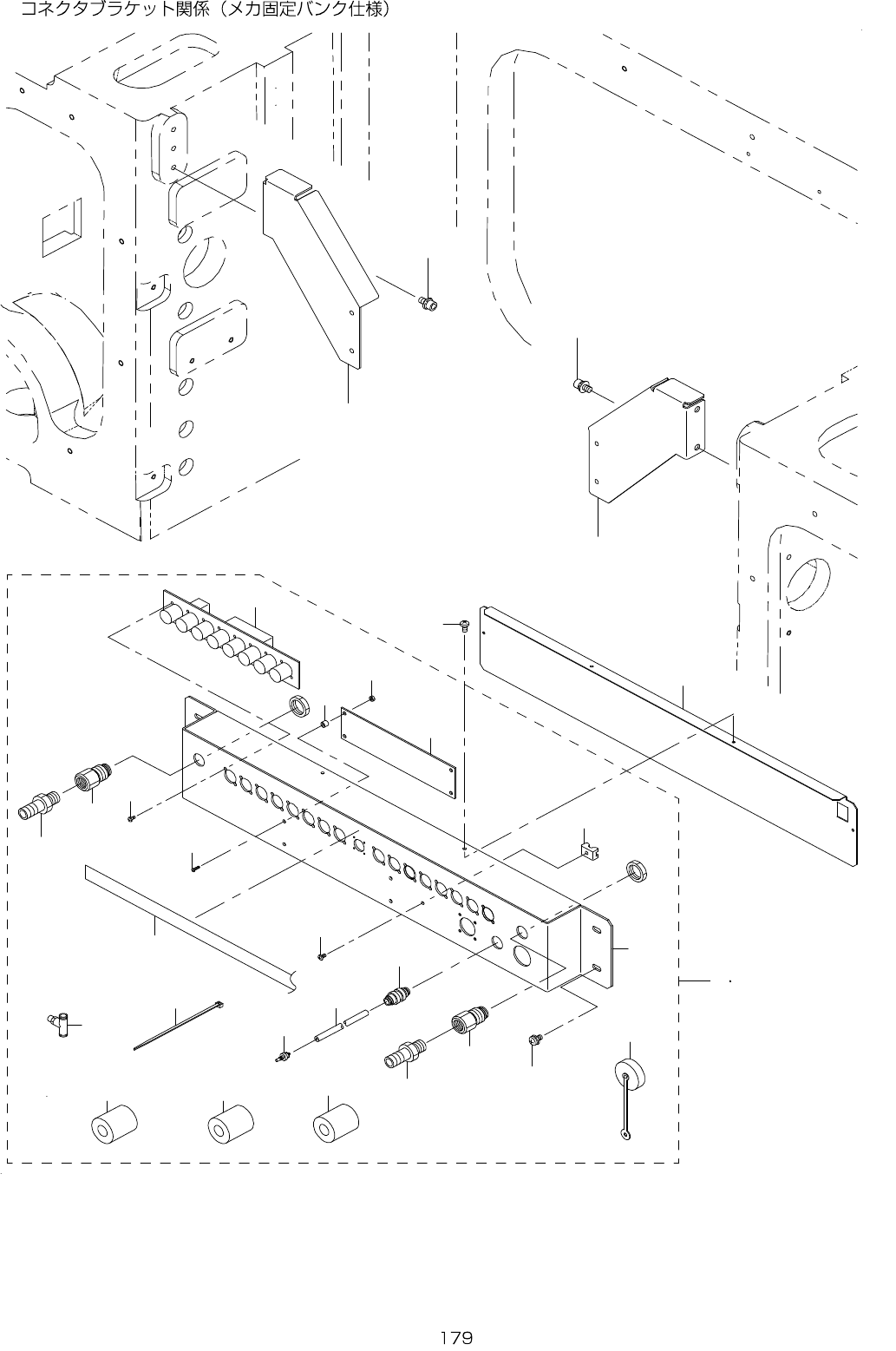

90.CONNECTORBRACKETCOMPONENTS(TYPEMFIXEDBANK)
2 4
1 6
2 3
1 7
4
3
5
6
7
9
1 0
1 1
1 2
1 3
1 4
1 5
8
9
8
2 2
1 9 2 0
2 1
2 9
2 8
1 8
2 7
2 6
2 7
2 5
1 2
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 E2508-729-0A0 CONNECTORBRACKET(30)ASM. 1
2
#01
E2508-729-AA0 CONNECTORBRACKETASM. 1
3 B4011-210-000 SPACER (4)
4 NM-6030003-SC NUTM3X0.5TYPE3 (4)
5 SM-4020801-SC SCREWM2X8 (4)
6 HX-0029400-00 FIXEDBASE (1)
7 SM-4030601-SC SCREWM3X6 (1)
8 PJ-3010651-06 KNIFEUNION (2)
9 E2904-700-000 SOCKET (2)
10 PJ-2300061-00 UNION06 (1)
11 PJ-3050600-04 TEE (1)
12 PJ-0320090-05 NIPPLE (1)
13 E2642-721-000 CONNECTORNO.LABEL (1)
14 BT-0600400-EC TUBEHOSE,BLUE (1.3)
15 EA-9500B01-00 CABLEBAND (4)
16 E8615-715-0A0 FEEDERBANKCIRCUITBOARDASM. (2)
17 E8618-721-0A0 FEEDERI/FBOARDASM. (1)
18 E2508-729-000 CONNECTORBRACKET(30) (1)
19
#01
HN-0017900-0B NOISEFILTER (2)
20
#01
HN-0017900-0D FERRITECLAMP (4)
21
#01
HK-0429900-8A CAP (1)
22
#01
HN-0014900-00 CLAMPFILTER(L) (3)
23 SM-4860601-SC SCREWM2.6L=6 (16)
24 SL-4051091-SC SCREWM5X0.8L=10 (4)
25 400-94494 CONN_ASM_FIX_BR_L 1
26 400-94495 CONN_ASM_FIX_BR_R 1
27 SL-6061292-TN SCREW 4
28 E2737-721-000 BRACKETCOVER 1
29 SM-4030601-SC SCREWM3X6 2
