KE-3020_KE-3020R-Rev05 - 第28页

- - 11. ATC&CALBLOC KCOMPONENTS 1 1 8 2 6 2 0 2 1 2 2 2 4 1 2 1 5 1 4 1 3 2 3 2 5 6 1 6 0 5 9 5 8 A 3 0 3 5 3 6 3 7 3 8 4 7 4 5 4 6 5 3 5 1 5 4 5 6 5 7 3 3 3 4 3 2 3 1 4 0 3 9 4 1 4 1 4 4 4 2 4 8 4 9 3 4 4 2 6 …

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-94705 VACUUM_PUMP_ASM 1

2 NM-3060810-SF NUTM6 2

3 WP-0651646-SC WASHER 2

4 SM-3061252-TN SCREWM6L=12 2

5 400-94707 BREAKERASSY 1

6 SL-6061492-TN BOLT 4

7 400-98152 REGENERATIVERESISTOR_ASM_XL 1

8 400-94498 REGISTOR_BR_XL (1)

9 400-98147 DUCTASSYXL 1

10 400-94365 DUCT_60_60_150 (4)

11 SL-4040891-SC SCREWM4L=8 (8)

12 400-94366 DUCT_60_60_750 (4)

13 SL-4040891-SC SCREWM4L=8 (8)

14 400-94367 DUCT_30_60_400 (3)

15 SL-4040891-SC SCREWM4L=8 (6)

16 400-94368 DUCT_60_60_400 (1)

17 SL-4040891-SC SCREWM4L=8 (2)

18 400-94476 DUCT_60_60_250 (4)

19 SL-4040891-SC SCREWM4L=8 (8)

20 400-77201 DUCT60-60-200 (2)

21 SL-4040891-SC SCREWM4L=8 (4)

22 400-94369 DUCT_30_60_350 (2)

23 SL-4040891-SC SCREWM4L=8 (4)

24 400-94496 DRIVER_BASE_XL 1

25 400-94713 XYDRIVERUNIT 1

26 400-94471 BASE_SUPPORT 4

27 SL-6061492-TN BOLT 4

28 400-98150 CTRLBOXBASEUNITXL 1

29 400-71380 CTRL_SUPPORT_BASE_XL (1)

30 400-94712 ATX_BATTERY_UNIT 1

- -

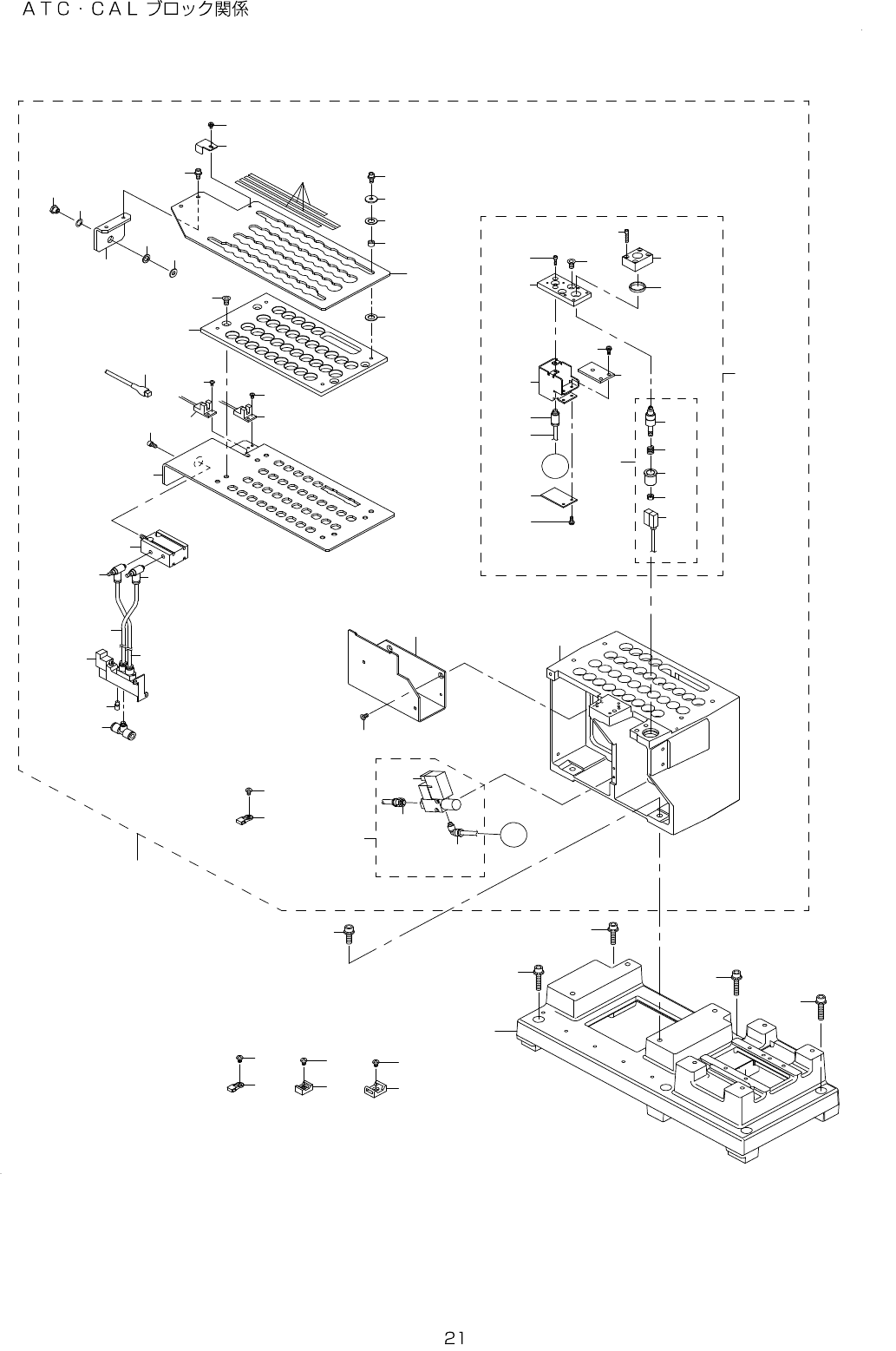

11.ATC&CALBLOCKCOMPONENTS

1 8

2 6

2 0

2 1

2 2

2 4

1 2

1 5

1 4

1 3

2 3

2 5

6 1

6 0

5 9

5 8

3 0

3 5

3 6

3 7

3 8

4 7

4 5

4 6

5 3

5 1

5 4

5 6

5 7

3 3

3 4

3 2

3 1

4 0

3 9

4 1

4 4

4 2

4 8

4 9

6 4

6 3

5 2

1 9

4 3

1 7

2 7

2 8

2 9

1 0

5 6

6 2

1 6

1 1

5 5

5 0

6 5

6 6

4 4

- -

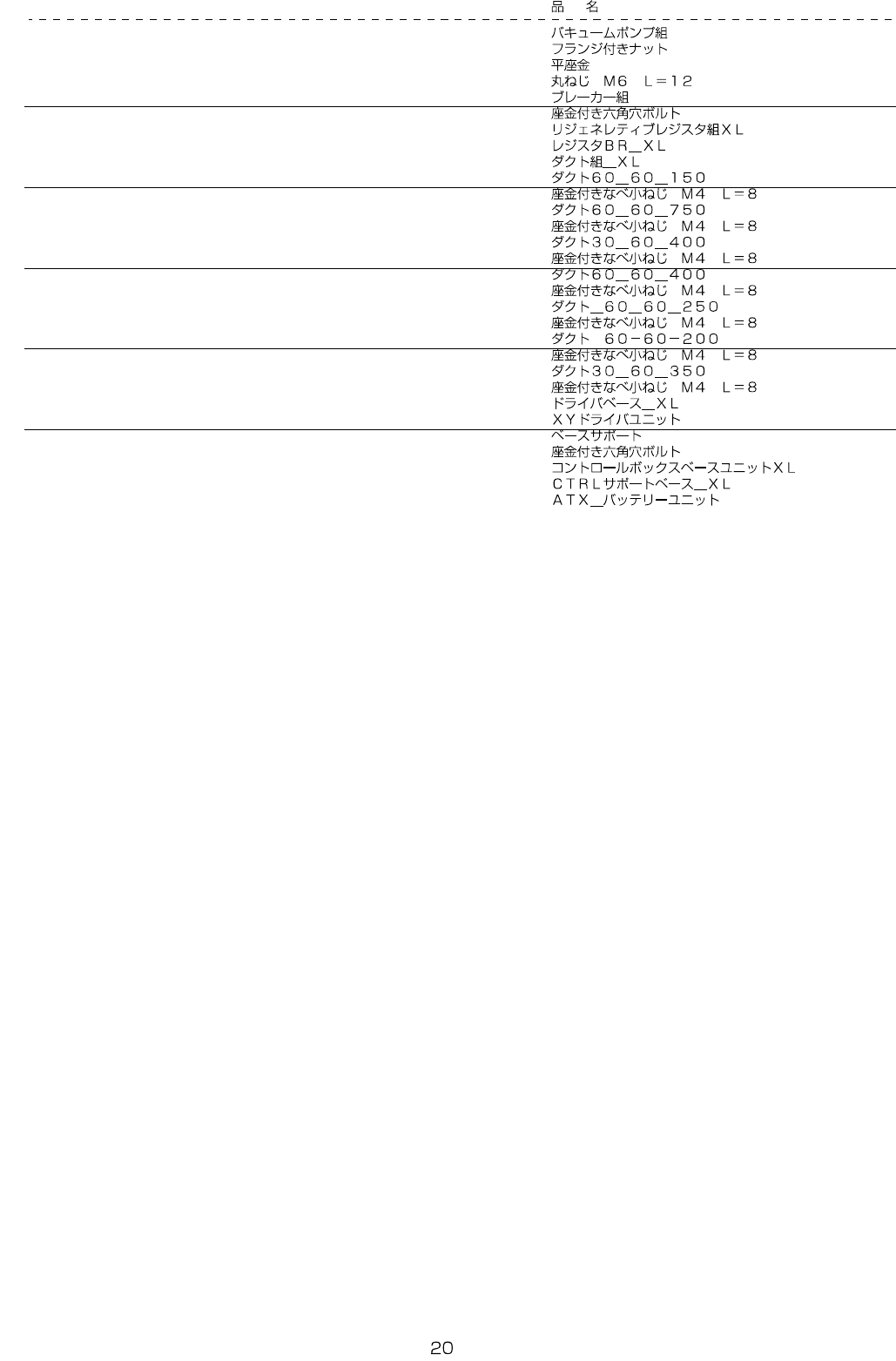

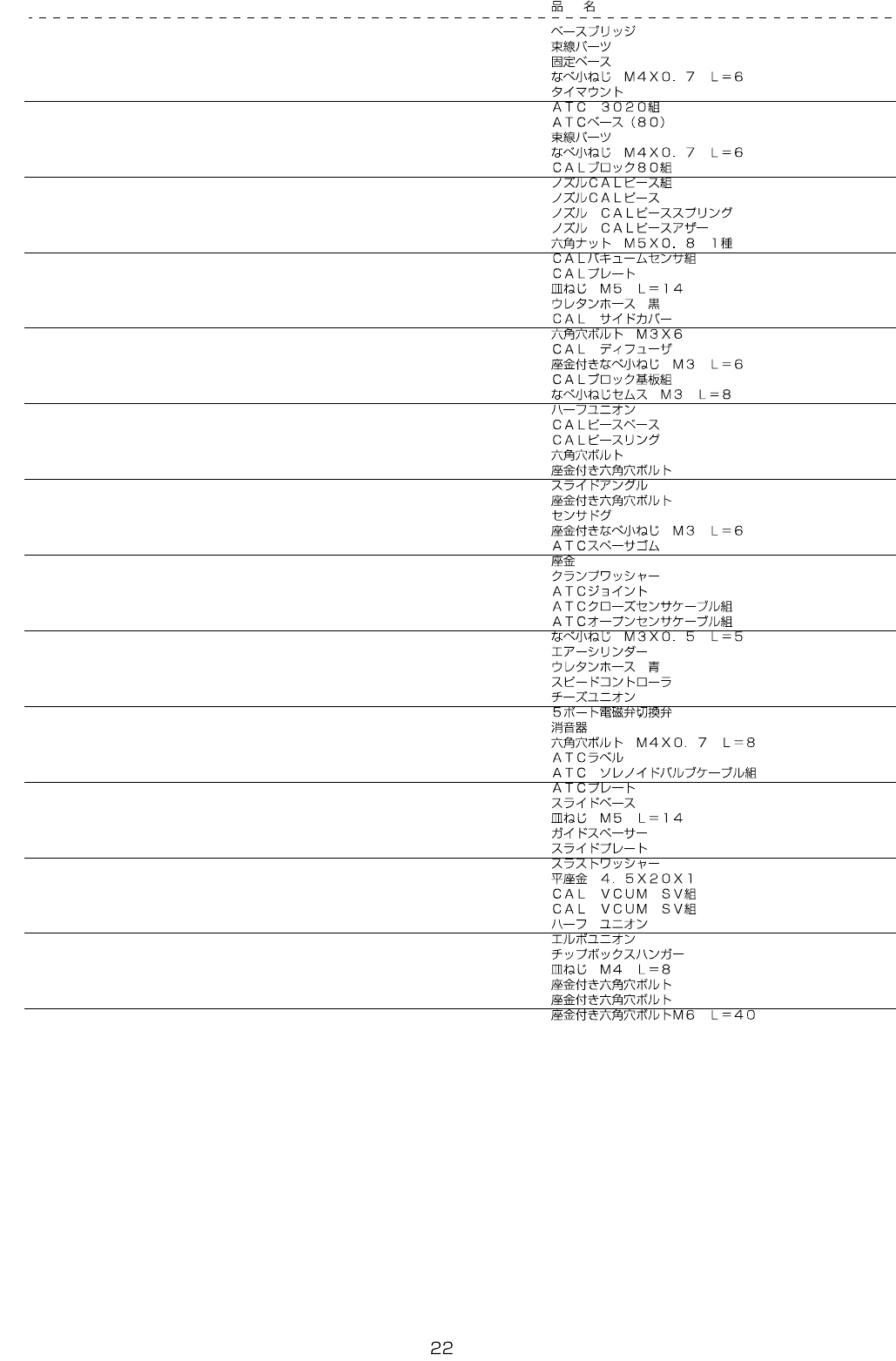

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-71309 BASEBRIDGE 1

2 HX-0034400-00 HARNESSPARTS 2

3 HX-0029400-00 FIXEDBASE 5

4 SM-4040601-SC SCREWM4X0.7L=6 12

5 HX-0045400-00 TIEMOUNT 5

6 400-93929 ATC3020ASSY 1

7 400-45972 ATCBASE(80) (1)

8 HX-0034400-00 HARNESSPARTS (3)

9 SM-4040601-SC SCREWM4X0.7L=6 (3)

10 400-50377 CALBLOCK80ASM (1)

11 400-57039 NOZZLECALPIECEASM (1)

12 400-45979 NOZZLECALPIECE (1)

13 L203E-121-000 NOZZLECALPIECEOUTERSP (1)

14 L203E-021-000 NOZZLECALPIECEOUTER (1)

15 NM-6050001-SC NUTM5X0.8TYPE1 (1)

16 400-02126 CALVACUUMSENSORASSY (1)

17 L202E-421-000 CALPLATE (1)

18 SM-1051452-TN PLATESCREWM5L=14 (2)

19 BT-0400251-EB URETHANEHOSE,BLACK (0.3)

20 L202E-521-000 CALSIDECOVER (1)

21 SM-6030602-TN SCREWM3X6 (2)

22 L202E-621-000 CALDIFFUSER (1)

23 SL-4030691-SC SCREWM3L=6 (2)

24 400-07376 CALBLOCKPCBASM (1)

25 SL-4030891-SC SCREWM3X8 (2)

26 PJ-3010405-05 HALFUNION (1)

27 400-45995 CALPIECEBASE (1)

28 400-45996 CALPIECERING (1)

29 SM-6031602-TN SCREWM3L=16 (4)

30 SL-6041092-TN SCREW (4)

31 400-45977 SLIDERANGLE (1)

32 SL-6041092-TN SCREW (2)

33 400-45978 SENSORDOG (1)

34 SL-4030691-SC SCREWM3L=6 (1)

35 400-01286 ATCSPACERRUBBER (1)

36 B2107-816-000 WASHER (1)

37 GLA-02335000 CLAMPWASHER (1)

38 E3528-729-000 ATCJOINT (1)

39 400-92509 ATCCLOSESENSASM (1)

40 400-92508 ATCOPENSENSASM (1)

41 SM-4030501-SC SCREWM3X0.5L=5 (4)

42 400-42709 AIRCYLINDER (1)

43 BT-0400251-EA TUBEHOSE,BLUE (0.8)

44 PC-0105080-00 SPEEDCONTROLLER (2)

45 400-62594 CHEESEUNION (1)

46 PV-1502060-A0 5PORTMAGNETICTRANSFERVALVE (1)

47 PX-0505010-00 SILENCER (2)

48 SM-6040802-TN SCREW (2)

49 400-45983 ATCLABEL (1)

50 400-92510 ATCSVCABLEASM (1)

51 400-45973 ATCPLATE (1)

52 400-45974 SLIDEBASE (1)

53 SM-1051452-TN PLATESCREWM5L=14 (4)

54 400-45975 GUIDESPACER (4)

55 400-45976 SLIDEPLATE (1)

56 E3404-700-000 THRUSTWASHER (8)

57 WP-0451016-SP WASHER4.5X20X1 (4)

58 400-50375 CALVCUMSVASM (1)

59 400-02125 CALVCUMSVASM (1)

60 PJ-3010605-03 HALFUNION (1)

61 PJ-3040405-04 ELBOWUNION (1)

62 400-93927 CHIP_BOX_HANGER (1)

63 SM-1040852-TP DISHSCREW (2)

64 SL-6062092-TN SCREWM6L=20 4

65 SL-6062592-TN SCREW 1

66 SL-6064092-TN SCREW 5
