- - 42. PWBCONVEY ORCOMPONENTS(6) 8 2 1 2 3 1 0 4 7 9 5 6 1 7 1 8 1 3 1 2 1 4 1 5 1 6 3 4 3 8 2 4 2 5 2 6 2 7 2 2 2 9 3 0 2 8 3 2 3 1 1 7 1 8 1 3 1 5 1 6 3 3 1 9 1 1 3 1 1 2 2 0 1 1 4 1 2

100%1 / 206
- -

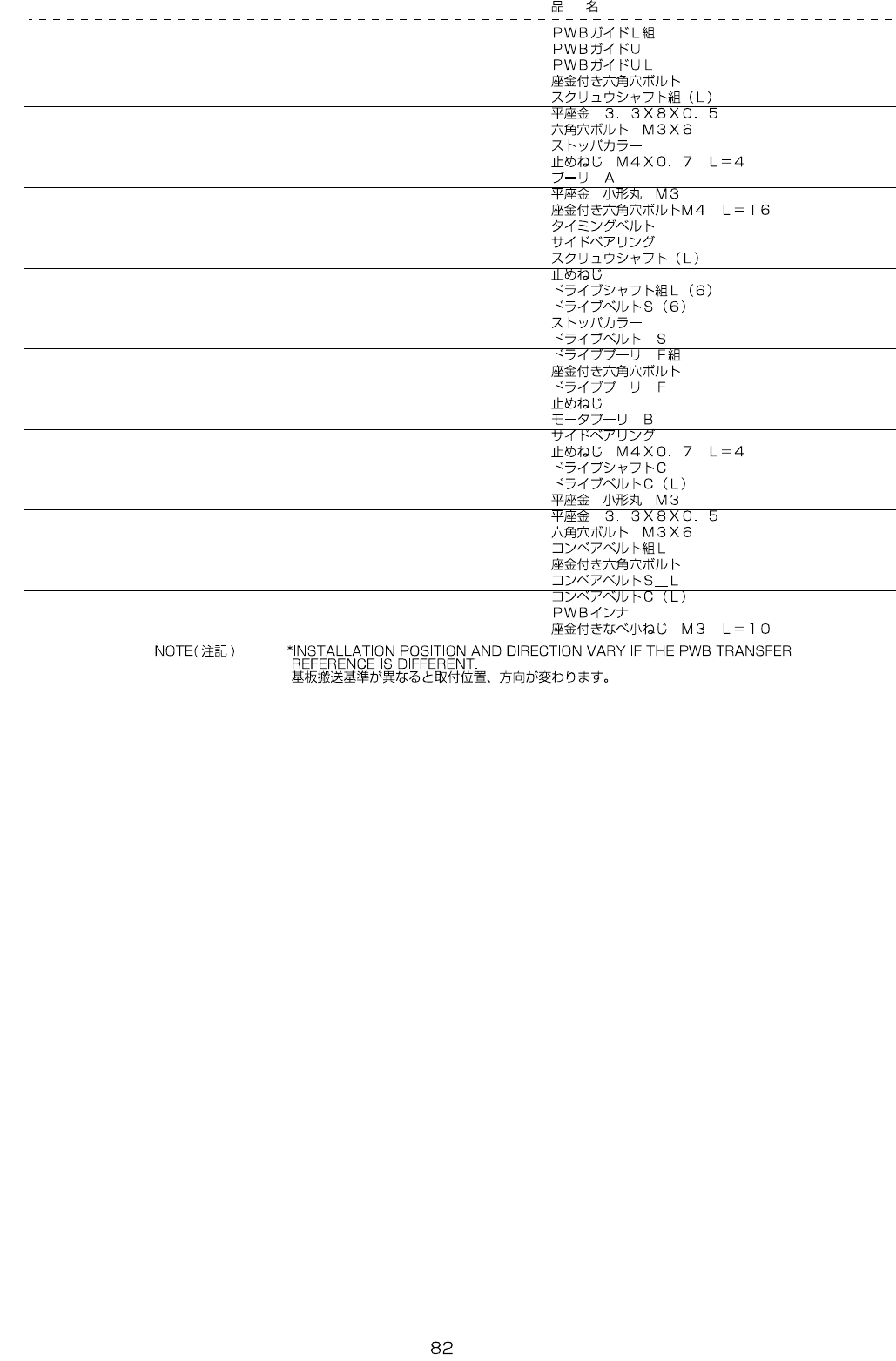

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93944 PWB_GUIDE_L_ASM 1
2 400-00861 PWBGUIDEU (4)
3 400-93943 PWB_GUIDE_U_L (4)
4 SL-6031092-TN SCREW (16)
5 400-01003 SCREWSHAFTASM(L) 1
6 WP-0330516-SC WASHER3.3X8X0.5 (4)
7 SM-6030602-TN SCREWM3X6 (4)
8 E2141-721-000 STOPPERCOLLAR (2)
9 SM-8040402-TP SCREWM4X0.7L=4 (4)
10 E2156-721-000 PULLEYA (2)
11 WP-0320500-SF WASHER3.2X7X0.5 (8)
12 SL-6041692-TN SCREWM4L=16 (8)
13 E2146-721-000 TIMINGBELT (1)
14 SB-1080002-00 SIDEBEARING (4)
15 400-15578 SCREWSHAFT(L) (2)
16 SM-8040602-TP SCREWM4X0.7L=6 (4)
17 400-54803 DRIVESHAFTASML(6) 1
18 400-46033 DRIVEBELTS(6) (2)
19 E2141-721-000 STOPPERCOLLAR (3)
20 400-00852 DRIVEBELTS (2)
21 400-00849 DRIVEPULLEYFASM (3)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVEPULLEYF (1)
24 SM-8040602-TP SCREWM4X0.7L=6 (2)
25 400-00851 MOTORPULLEYB (1)
26 SB-1080002-00 SIDEBEARING (6)
27 SM-8040402-TP SCREWM4X0.7L=4 (6)
28 E2152-721-000 DRIVESHAFTC (3)
29 400-01005 DRIVEBELTC(L) (1)
30 WP-0320500-SF WASHER3.2X7X0.5 (12)
31 WP-0330516-SC WASHER3.3X8X0.5 (6)
32 SM-6030602-TN SCREWM3X6 (6)
33 400-94000 CONVEYOR_BELT_ASM_L 1
34 SL-6031092-TN SCREW (16)
35 400-71333 CONVEYOR_BELT_S_L (4)
36 400-01070 CONVEYORBELTC(L) (2)
37 E2046-725-000 PWBINNER (12)
38 SL-4031091-SC SCREWM3L=10 (8)
- -

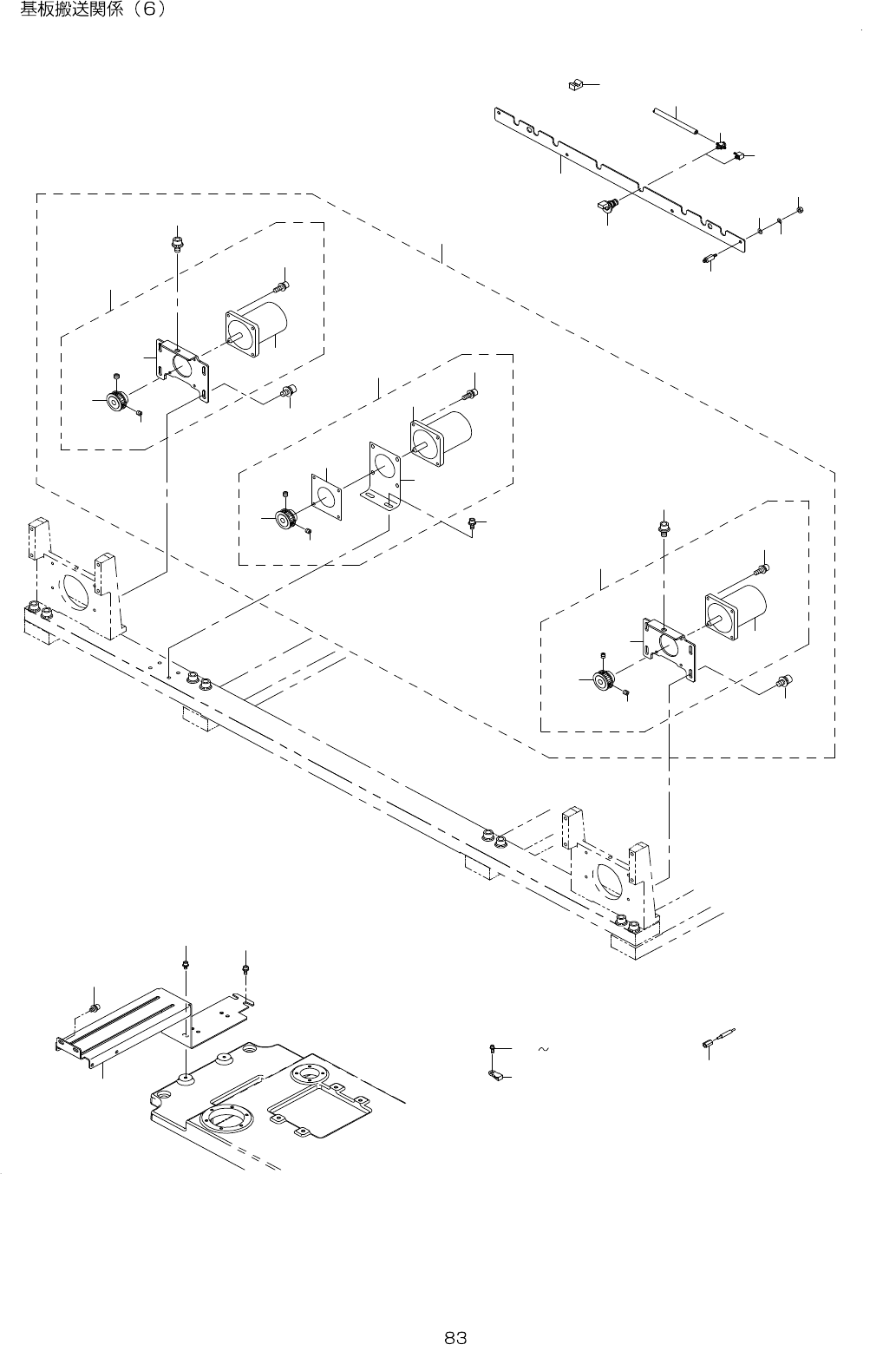

42.PWBCONVEYORCOMPONENTS(6)
8
2 1
2 3
1 0
4
7
9
5
6
1 7
1 8
1 3
1 2
1 4
1 5
1 6
3 4 3 8
2 4
2 5
2 6
2 7
2 2
2 9
3 0
2 8
3 2
3 1
1 7
1 8
1 3
1 5
1 6
3 3
1 9
1 1
3
1 1
2
2 0
1
1 4
1 2
- -

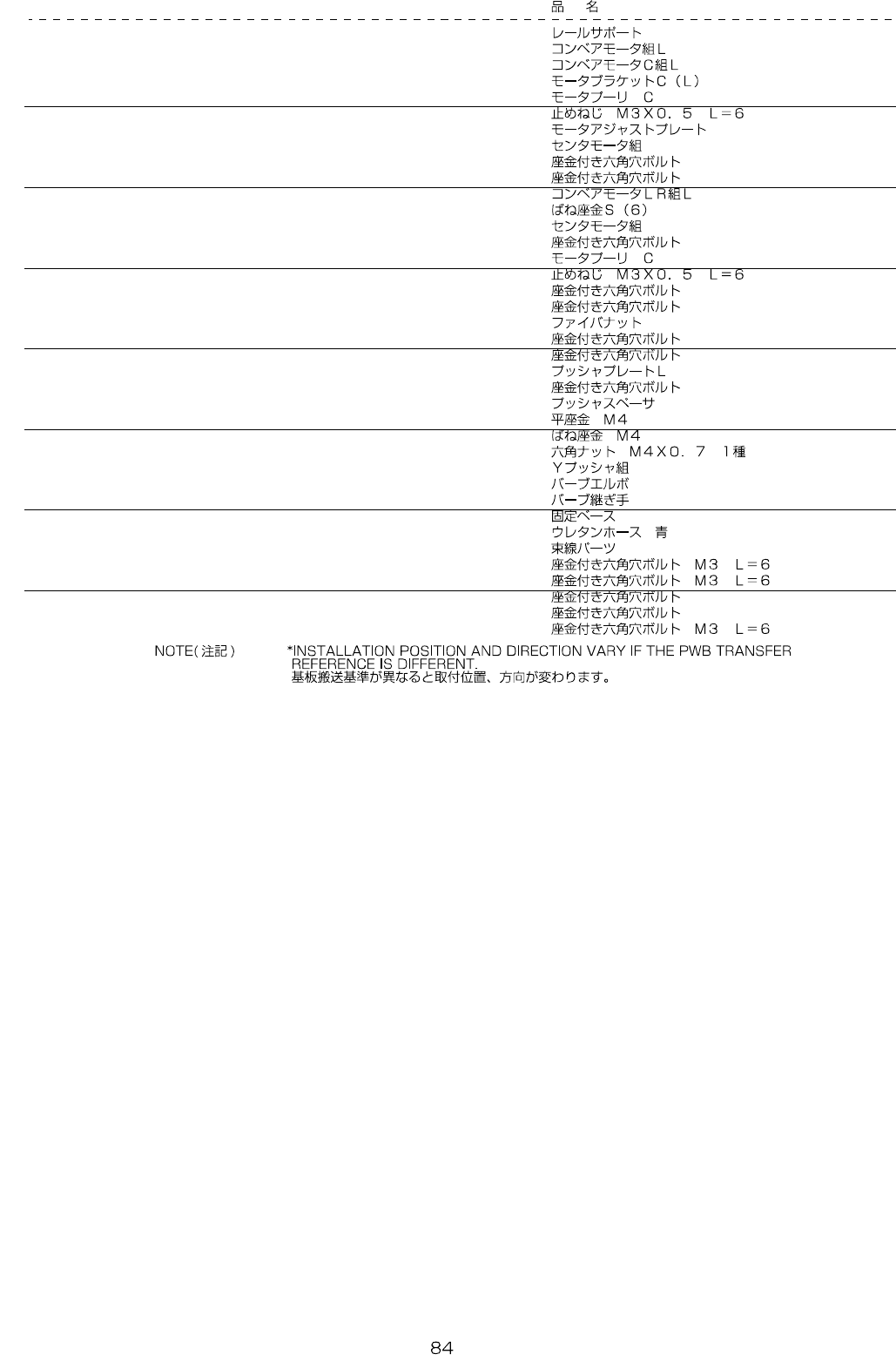

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93925 RAIL_SUPPORT 1
2 400-93940 CONVEYOR_MOTOR_ASM_L 1
3 400-93941 CONVEYOR_MOTOR_C_ASM_L (1)
4 400-01009 MOTORBRAKETC(L) (1)
5 400-00870 MOTORPULLEYC (1)
6 SM-8030602-TP SCREWM3X0.5L=6 (3)
7 400-00869 MOTORADJUSTPLATE (1)
8 400-48074 CENTERMOTORASM (1)
9 SL-6041242-TN BOLT (4)
10 SL-6051292-TN BOLT (2)
11 400-93942 CONVEYOR_MOTOR_LR_ASM_L (2)
12 400-46034 MOTORBRACKETS(6) (1)
13 400-48074 CENTERMOTORASM (2)
14 SL-6041242-TN BOLT (4)
15 400-00870 MOTORPULLEYC (1)
16 SM-8030602-TP SCREWM3X0.5L=6 (3)
17 SL-6051492-TN BOLT (2)
18 SL-6051092-TN BOLT (8)
19 400-46992 FIBER_NUT 3
20 SL-6040892-TN BOLT 1
21 SL-6051092-TN BOLT 2
22 400-99522 PUSHER_PLATE_L 1
23 SL-6041092-TN SCREW 2
24 E2165-721-000 PUSHERSPACER 4
25 WP-0430801-SC WASHERM4 4
26 WS-0410002-KN SPRINGWASHERM4 4
27 NM-6040001-SC NUTM4X0.7TYPE1 4
28 400-00885 Y_PUSHER_ASM 5
29 PJ-0460525-01 ELBOW 1
30 PJ-0460590-05 CONNECTOR 4
31 HX-0029400-00 FIXEDBASE 1
32 BT-0400251-EA TUBEHOSE,BLUE 0.3
33 HX-0034400-00 HARNESSPARTS 3
34 SL-6030692-TN SCREWM3L=6 3
35 SL-6030692-TN SCREWM3L=6 2
36 SL-6031092-TN SCREW 1
37 SL-6031092-TN SCREW 2
38 SL-6030692-TN SCREWM3L=6 1
