- - 45. PWBCONVEY ORCOMPONENTS(9) 2 4 6 8 7 9 2 2 1 0 1 0 1 1 1 1 2 6 1 2 2 1 2 0 2 2 2 3 2 4 2 5 2 6 2 6 2 7 1 9 1 8 2 7 7 1 1 1 1 2 6 2 5 1 2 1 3 2 8 2 9 1 4 3 0 1 5 1 6 3 1 3 3 3 3 1 5 1 7 3 3 2

100%1 / 206
- -

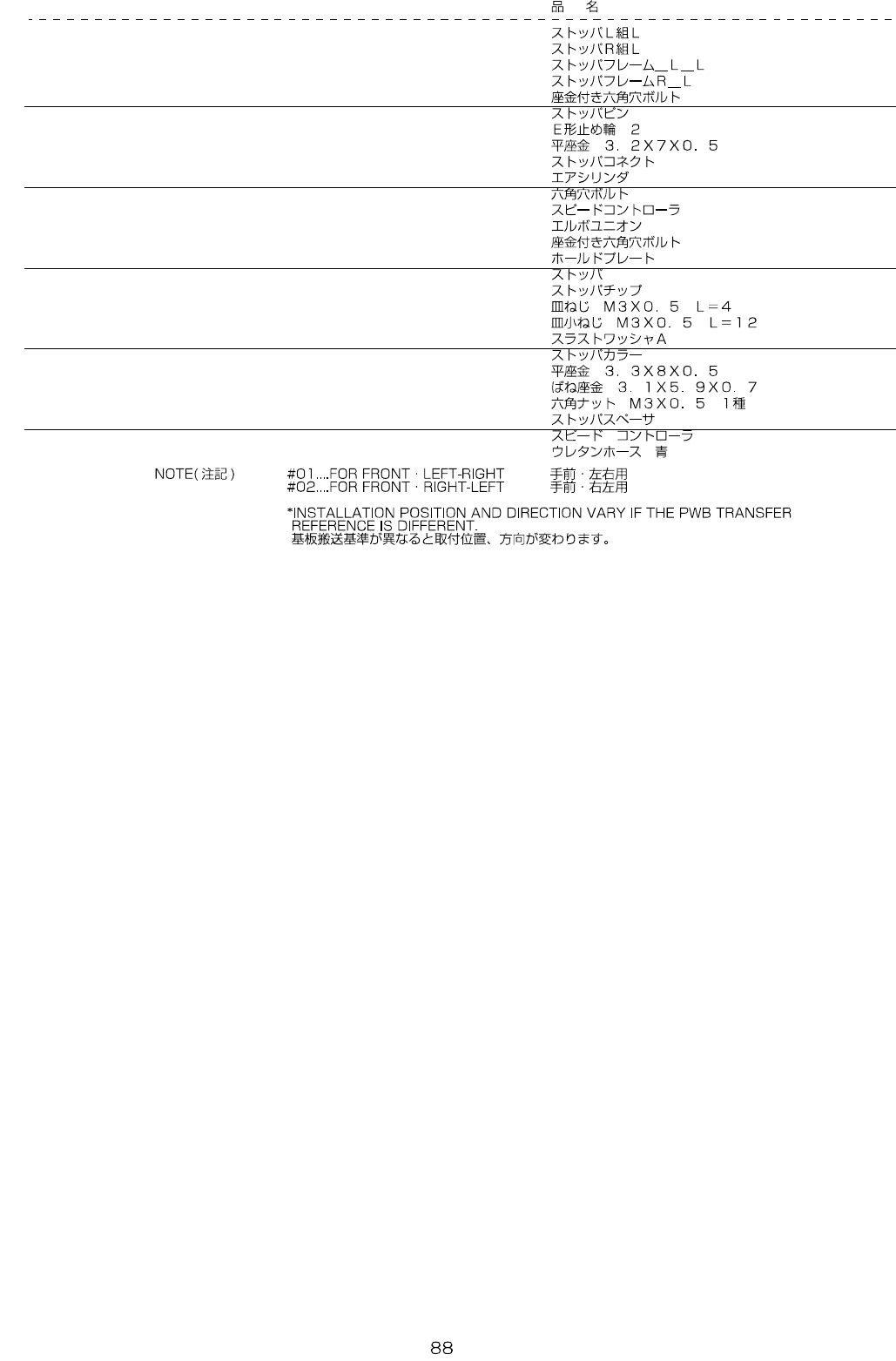

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#02
400-94888 STOPPER_L_ASM_L 1
2
#01
400-93938 STOPPER_R_ASM_L 1
3
#02
400-93922 STOPPER_FRAME_L_L (1)
4
#01
400-93921 STOPPER_FRAME_R_L (1)
5 SL-6030842-TN SCREWM3L=8 (1)
6 400-00910 STOPPERPIN (1)
7 RE-0200000-K0 E-RING2 (1)
8 WP-0320501-SC WASHERM3 (1)
9 400-00911 STOPERCONNECT (1)
10 PA-1002008-A0 AIRCYLINDER (1)
11 SM-6031402-TN SCREWM3X0.5L=8 (2)
12 PC-0105080-00 SPEEDCONTROLLER (1)
13 PJ-3040405-11 ELBOWUNION (1)
14 SL-6041292-TN SCREW (2)
15 E2169-721-000 HOLDPLATE (1)
16 400-00909 STOPER (1)
17 E2233-725-000 STOPPERCHIP (1)
18 SM-1030401-SE SCREWM3L=4 (1)
19 SM-1031201-SC SCREWM3X0.5L=12 (1)
20 E2039-721-000 WASHERA (2)
21 E2038-721-000 STOPPERCOLLAR (1)
22 WP-0330516-SC WASHER3.3X8X0.5 (1)
23 WS-0310002-KN SPRINGWASHERM3 (1)
24 NM-6030001-SC NUTM3X0.5TYPE1 (1)
25 400-23788 STOPERSPACER (1)
26 PC-0124010-00 SPEEDCONTROLLER (1)
27 BT-0400251-EA TUBEHOSE,BLUE (0.5)
- -
45.PWBCONVEYORCOMPONENTS(9)
2
4
6
8
7
9
2 2
1 0
1 0
1 1
1 1
2 6
1 2
2 1
2 0
2 2
2 3
2 4
2 5
2 6
2 6
2 7
1 9
1 8
2 7
7
1 1
1 1
2 6
2 5
1 2
1 3
2 8
2 9
1 4
3 0
1 5
1 6
3 1
3 3
3 3
1
5
1 7
3
3 2
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93934 LEFT_SENS_UNIT 1
2 400-01077 SENSORBRAKETA (1)
3 HX-0044000-00 CABLEBAND (1)
4 400-17255 SENSORBRACKETBR (1)
5 400-01079 SENSORBRAKETC (1)
6 400-01076 SENSORSLIDEPLATE (1)
7 400-00912 SENSORADJUSTSPRING (3)
8 G6518-880-000 SETPICK-UP (1)
9 400-58815 SPACER (1)
10 SM-6041602-TN SCREWM4X16 (3)
11 WP-0430801-SC WASHERM4 (6)
12 NM-6040002-SE NUTM4X0.7 (3)
13 400-92568 LEFTSENSASM (1)
14 SL-4031291-SC SCREWM3X12 (1)
15 HX-0036700-0A BUSH (0.16)
16 EA-9500B00-00 CABLEBAND (5)
17 400-93935 RIGHT_SENS_UNIT 1
18 400-01079 SENSORBRAKETC (1)
19 400-17255 SENSORBRACKETBR (1)
20 400-01077 SENSORBRAKETA (1)
21 400-01076 SENSORSLIDEPLATE (1)
22 400-00912 SENSORADJUSTSPRING (3)
23 G6518-880-000 SETPICK-UP (1)
24 400-58815 SPACER (1)
25 SM-6041602-TN SCREWM4X16 (3)
26 WP-0430801-SC WASHERM4 (6)
27 NM-6040002-SE NUTM4X0.7 (3)
28 400-92578 RIGHTSENSASM (1)
29 SL-4031291-SC SCREWM3X12 (1)
30 HX-0036700-0A BUSH (0.16)
31 EA-9500B00-00 CABLEBAND (5)
32 HX-0044000-00 CABLEBAND (1)
33 SL-6031092-TN SCREW 4
