- - 46. PWBCONVEY ORCOMPONEN TS(10) 2 5 2 8 2 9 2 1 4 2 3 2 4 2 0 1 5 1 2 1 2 1 1 2 7 2 2 1 9 1 8 1 2 3 2 4 3 6 7 1 7 1 6 1 6 1 7 8 9 1 1 1 0 1 2 5 2 6 3 0 3 1 3 3 3 4 3 5 1 3 3 6

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-93934 LEFT_SENS_UNIT 1

2 400-01077 SENSORBRAKETA (1)

3 HX-0044000-00 CABLEBAND (1)

4 400-17255 SENSORBRACKETBR (1)

5 400-01079 SENSORBRAKETC (1)

6 400-01076 SENSORSLIDEPLATE (1)

7 400-00912 SENSORADJUSTSPRING (3)

8 G6518-880-000 SETPICK-UP (1)

9 400-58815 SPACER (1)

10 SM-6041602-TN SCREWM4X16 (3)

11 WP-0430801-SC WASHERM4 (6)

12 NM-6040002-SE NUTM4X0.7 (3)

13 400-92568 LEFTSENSASM (1)

14 SL-4031291-SC SCREWM3X12 (1)

15 HX-0036700-0A BUSH (0.16)

16 EA-9500B00-00 CABLEBAND (5)

17 400-93935 RIGHT_SENS_UNIT 1

18 400-01079 SENSORBRAKETC (1)

19 400-17255 SENSORBRACKETBR (1)

20 400-01077 SENSORBRAKETA (1)

21 400-01076 SENSORSLIDEPLATE (1)

22 400-00912 SENSORADJUSTSPRING (3)

23 G6518-880-000 SETPICK-UP (1)

24 400-58815 SPACER (1)

25 SM-6041602-TN SCREWM4X16 (3)

26 WP-0430801-SC WASHERM4 (6)

27 NM-6040002-SE NUTM4X0.7 (3)

28 400-92578 RIGHTSENSASM (1)

29 SL-4031291-SC SCREWM3X12 (1)

30 HX-0036700-0A BUSH (0.16)

31 EA-9500B00-00 CABLEBAND (5)

32 HX-0044000-00 CABLEBAND (1)

33 SL-6031092-TN SCREW 4

- -

46.PWBCONVEYORCOMPONENTS(10)

2 5

2 8

2 9

1 4

2 3

2 4

2 0

1 5

2 1

2 7

2 2

1 9

1 8

1 2

3 2

1 7

1 6

1 7

1 1

1 0

1 2

2 6 3 0

3 1

3 3

3 4

3 5

1 3

3 6

- -

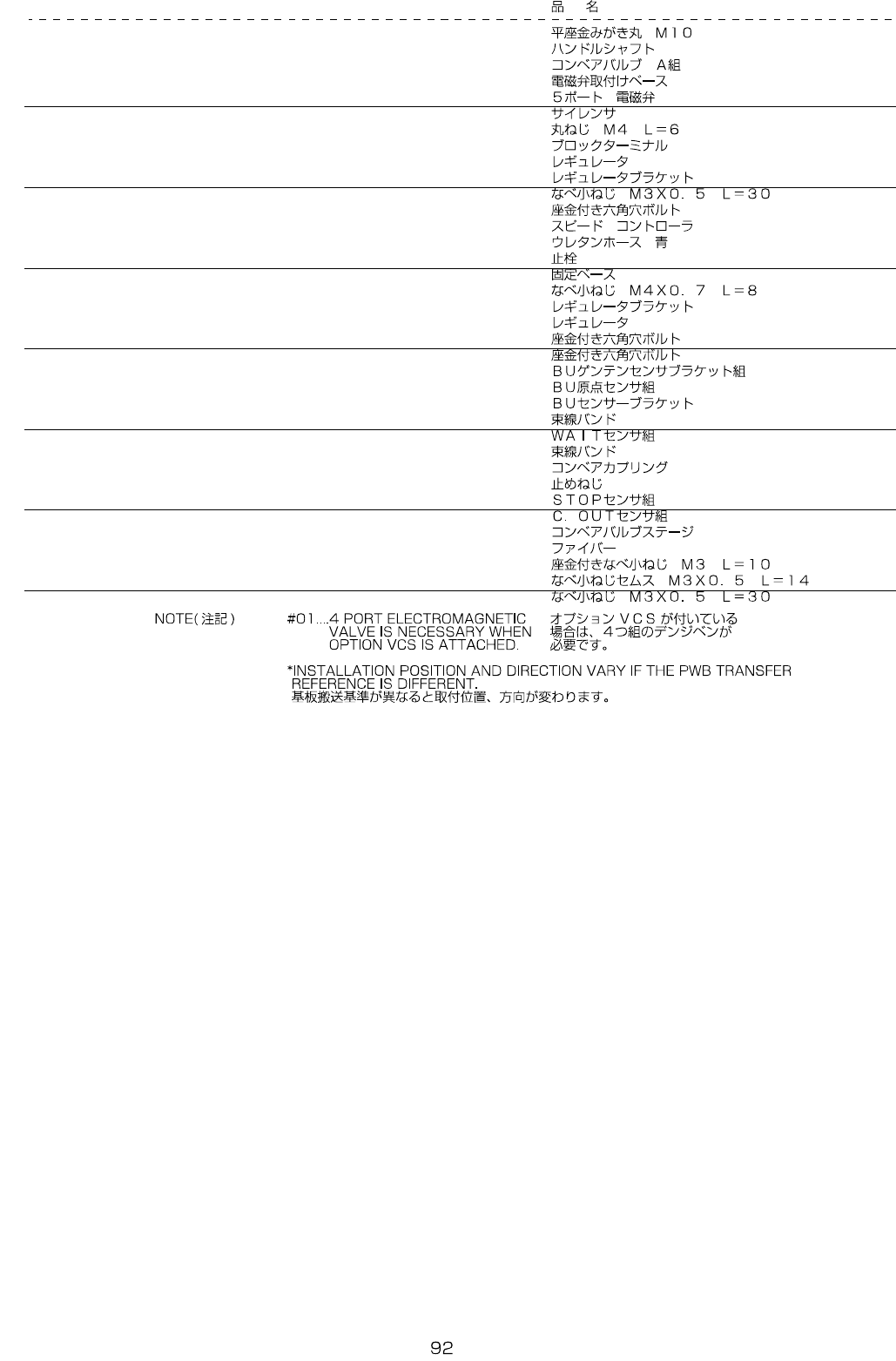

REF.NO NOTE PARTNO DESCRIPTION Qty

1 WP-1052001-SC WASHER10,5X21X2 4

2 400-93920 HANDLESHAFT 1

3 400-00916 MANIFOLDVALVEAASM 1

4 PV-9150050-00 SOLENOIDVALVEINSTALLINGBASE (1)

#01

PV-1502093-00 5PORTELECTROMAGNETICVALVE (3)

6 PX-0500030-00 SILENCER (1)

7 SM-3040652-TN SCREWM4L=6 2

8 HK-0691900-0B BLOCKTERMINAL 1

9 PF-0200040-00 REGULATOR 2

10 400-00904 REGULATORBRACKET 1

11 SM-4033001-SC SCREWM3L=30 4

12 SL-6040892-TN BOLT 4

13 PC-0124010-00 SPEEDCONTROLLER 1

14 BT-0400251-EA TUBEHOSE,BLUE 6

15 PX-5000140-00 PLUG 3

16 HX-0029400-00 FIXEDBASE 7

17 SM-4040801-SC SCREWM4X0.7L=8 7

18 400-94486 REGULATOR_BR 1

19 PF-0200040-00 REGULATOR 1

20 SL-6051292-TN BOLT 2

21 SL-6104042-TN BOLT 4

22 400-93936 BU_HOME_SENSOR__BRACKET_ASM 1

23 400-92573 BUORGSENSASM (1)

24 E4115-729-000 UNION (1)

25 EA-9500B01-00 CABLEBAND (1)

26 400-92570 WAITSENSORASM 1

27 EA-9500B01-00 CABLEBAND 40

28 400-13197 CONVEYORCOUPLING 1

29 SM-8050502-TP SCREWM5L=5 4

30 400-92571 STOPSENSORASM 1

31 400-92572 C.OUTSENSORASM 1

32 400-94484 CONVEYOR_VALVE_STAGE 1

33 400-92512 FIBER 3

34 SL-4031091-SC SCREWM3L=10 4

35 SL-4031481-SC SCREWM3X14 2

36 SM-4033001-SC SCREWM3L=30 2
