TS7000IMP Series Rotary Valve Item Part Number Description 11* 7090 - 9140 Cartridge Assy, 32P 11* 7090 - 9040 Cartridge Assy, 16P 11* 7090 - 9030 Cartridge Assy, 8P 11* 7090 - 9050 Cartridge Assy, 8P HO 12* 7090 - 0030 …

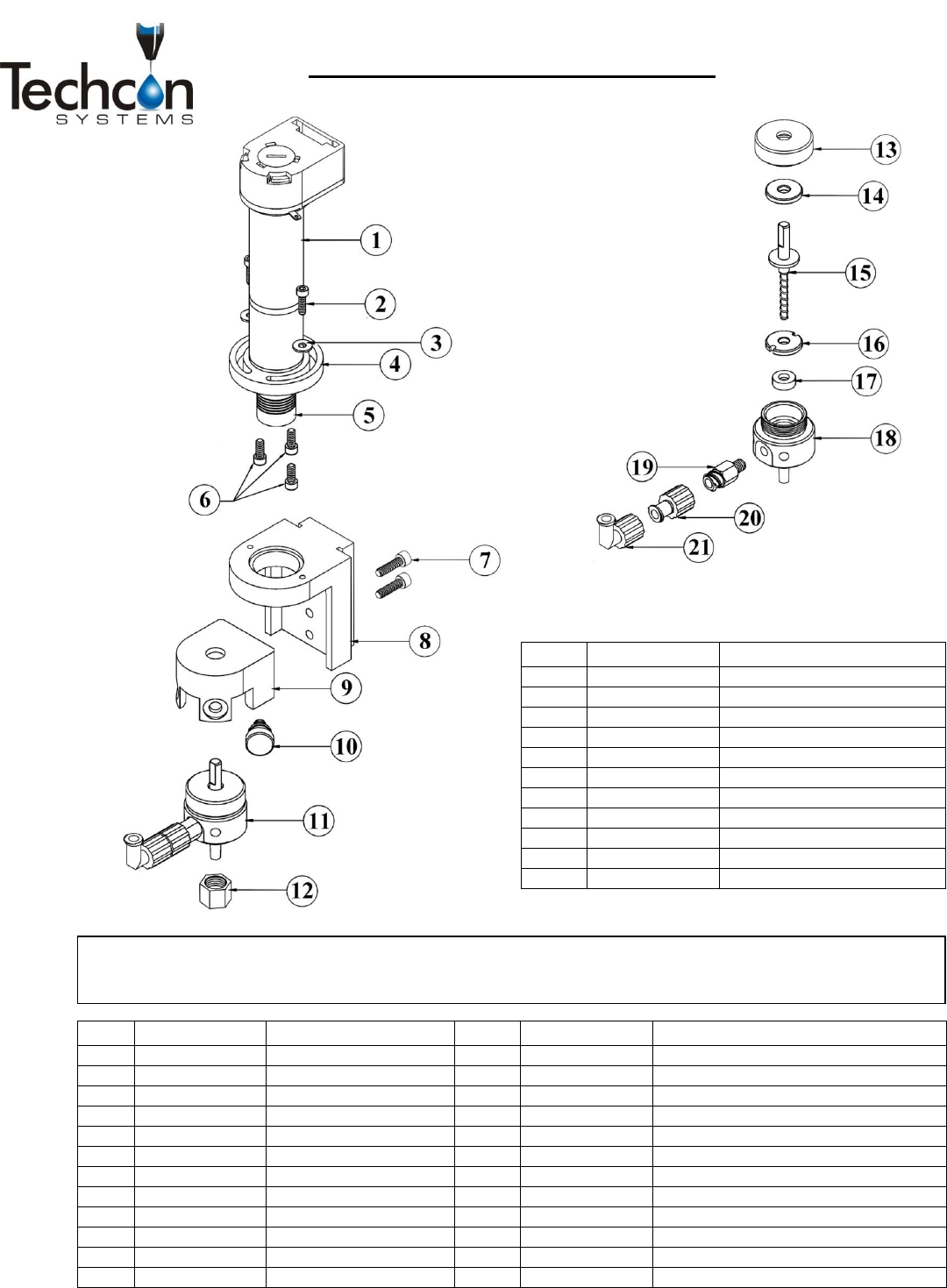

TS7000IMP Series Rotary Valve
Item
Part Number
Description
11*
7090-9140
Cartridge Assy, 32P
11*
7090-9040
Cartridge Assy, 16P
11*
7090-9030
Cartridge Assy, 8P
11*
7090-9050
Cartridge Assy, 8P HO
12*
7090-0030
Locking Cap, TE and TT Tip (STD)
12*
7090-0170
Locking Cap, TS-SS Tip
12*
5440-000-004
Locking Cap, Full Block, TE Tip
15*
7090-0240
Feed Screw, 32P
15*
7090-0110
Feed Screw, 16P
15*
7090-0100
Feed Screw, 8P
15*
7090-0120
Feed Screw, 8P HO
Item
Part Number
Description
Item
Part Number
Description
1
TSD1412-22
Motor, 6W, No Encoder
12
SEE CHART
Tip Cap
1*
TSD1412-31
Motor 6W, With Encoder
13
7090-0090
Cover
2
2800-0423
Mounting Plate Screw
14
7090-0130
Top Thrust Washer
3
TSD1109-1
Mounting Plate Washer
15
SEE CHART
Feed Screw
4
7090-0060
Motor Mounting Plate
16
7090-0140
Bottom Thrust Washer
5
7090-0050
Coupling
17
3300-0353
U-Cup Seal
6
TSD1103-330
Mounting Plate Screw
18
7090-0070
Cartridge Body, 32P, 16P and 8P STD
7
2800-0213
Main Housing Screw
18*
7090-0080
Cartridge Body, 8P High Output
8
7090-0010
Main Housing
19
TSD931-63
Luer Lock Adaptor, Stainless Steel
9
7090-0020
Cartridge Housing
20
TSD931-82
Luer Lock Adaptor, Nylon
10
7090-0040
Thumb Screw
21
TSD931-81
Luer Lock Elbow Adaptor, Nylon
11
SEE CHART
Cartridge Assy
Lubrication: No lubrication required on valve but conditioning cream (7105XCON = 10cc, 7305XCON = 30cc
or TS60C-CON = 177cc) should be used, after repair, to prime the valve before production use.
