SP-073-001e - 第39页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 21 1G3953 BLOCK 1 1091908301-001 2 21 1A9884 COVER 1 1091908301-002 3 21 1A9885 COVER 1 1091908301-003 4 216S2747 LEVER 1 1091908301-004 5 216S2748 LEVER 1 1091908301-00…
Fig. J2-1
ノズルストッカ交換部
Nozzle Stocker Changing Section
1002-001
16
2 1
9
4
5
11
3
8
1
1
12
7
17
10
6
19
20
21
22
20
21
26
26
23
24
25
26
26
19
20
21
22
20
21
23
24
25
18
19
19
20
21
22
20
21
19
20
21
22
20
21
14
14
13
13
15

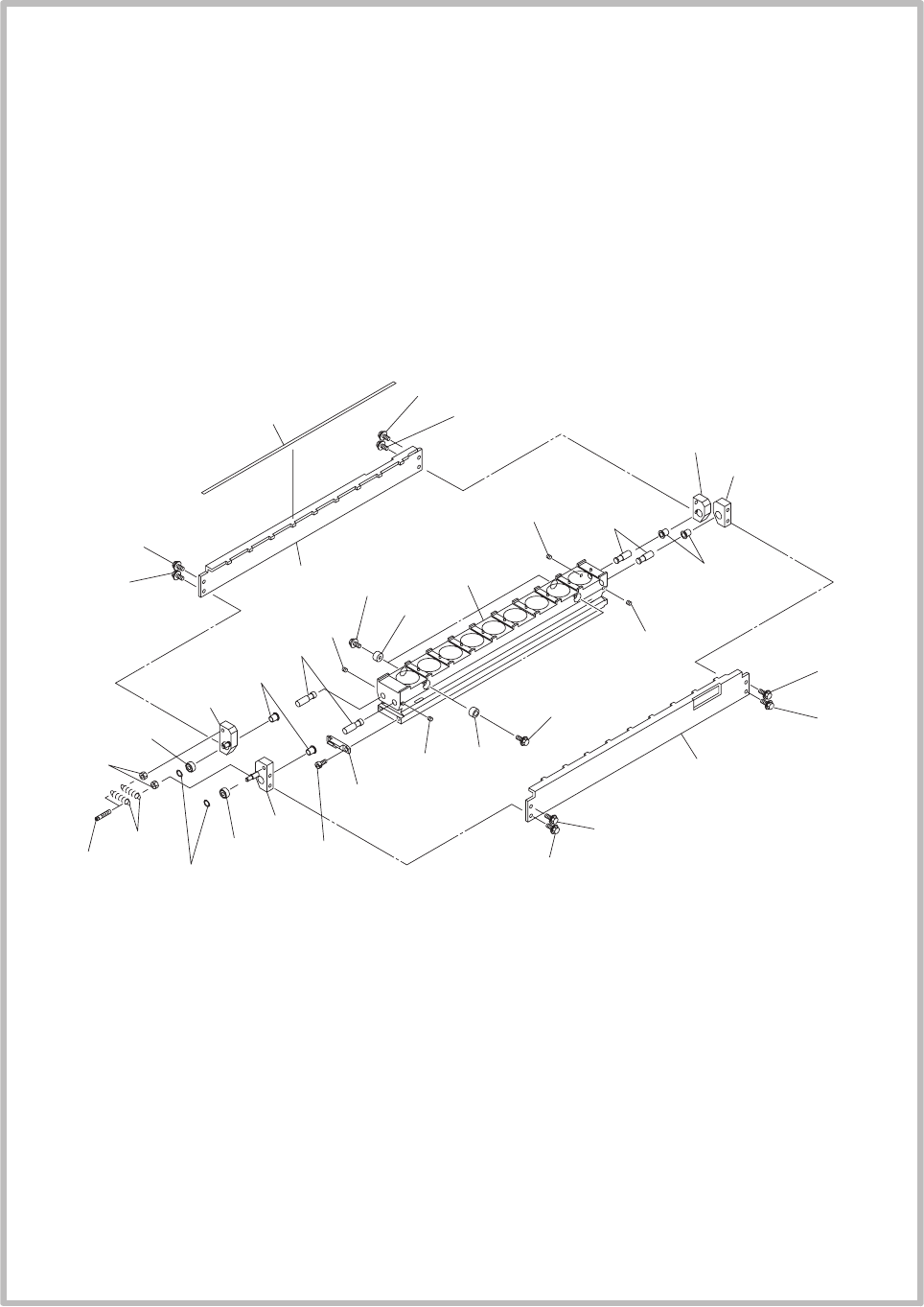

Fig. J2
多機能ノズルストッカ増設
(GS-NM100)
MULTI-FUNCTIONAL NOZZLE STOCKER ADDITION(GS-NM100)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1 211G3953 BLOCK 1 1091908301-001
2 211A9884 COVER 1
1091908301-002
3 211A9885 COVER 1
1091908301-003
4 216S2747 LEVER 1
1091908301-004
5 216S2748 LEVER 1
1091908301-005
6 216S2749 LEVER 1
1091908301-006
7 216S2750 LEVER 1
1091908301-007
8 216D0479 PIN_HINGE 2
1091908301-008
9 216D0481 PIN_HINGE 2
1091908301-009
10 222N1362 SPRING_TENSION 2
1091908301-010
11 211G3836 BLOCK 4
1091908301-011
12 211G4129 BLOCK 1
1091908301-012
13 222D0259 BEARING_RADIAL 2
1091908301-013
14 215B0117 BUSH_LINEAR 4
1091908301-014
15 221KA002 ROHS_RING 2
1091908301-015
16 6P460154 NAME_PLATE 1
1091908301-016
17 216D0528 PIN_HINGE 2
1091908301-017
18 221FA006 NUT_HEX 2
1091908301-018
19 221AA006 ROHS_HEX-SCT 6
1091908301-019
20 221HA003 WASHER 8
1091908301-020
21 221HA103 WASHER 8
1091908301-021
22 221AA005 ROHS_HEX-SCT 4
1091908301-022
23 221AA001 ROHS_HEX-SCT 4
1091908301-023
24 221HA001 WASHER 4
1091908301-024
25 221HA201 WASHER 4
1091908301-025
26 221C0001 SET_SCREW 4
1091908301-026
Fig. J2
1002-001
Fig. J2-1
GS-NM100

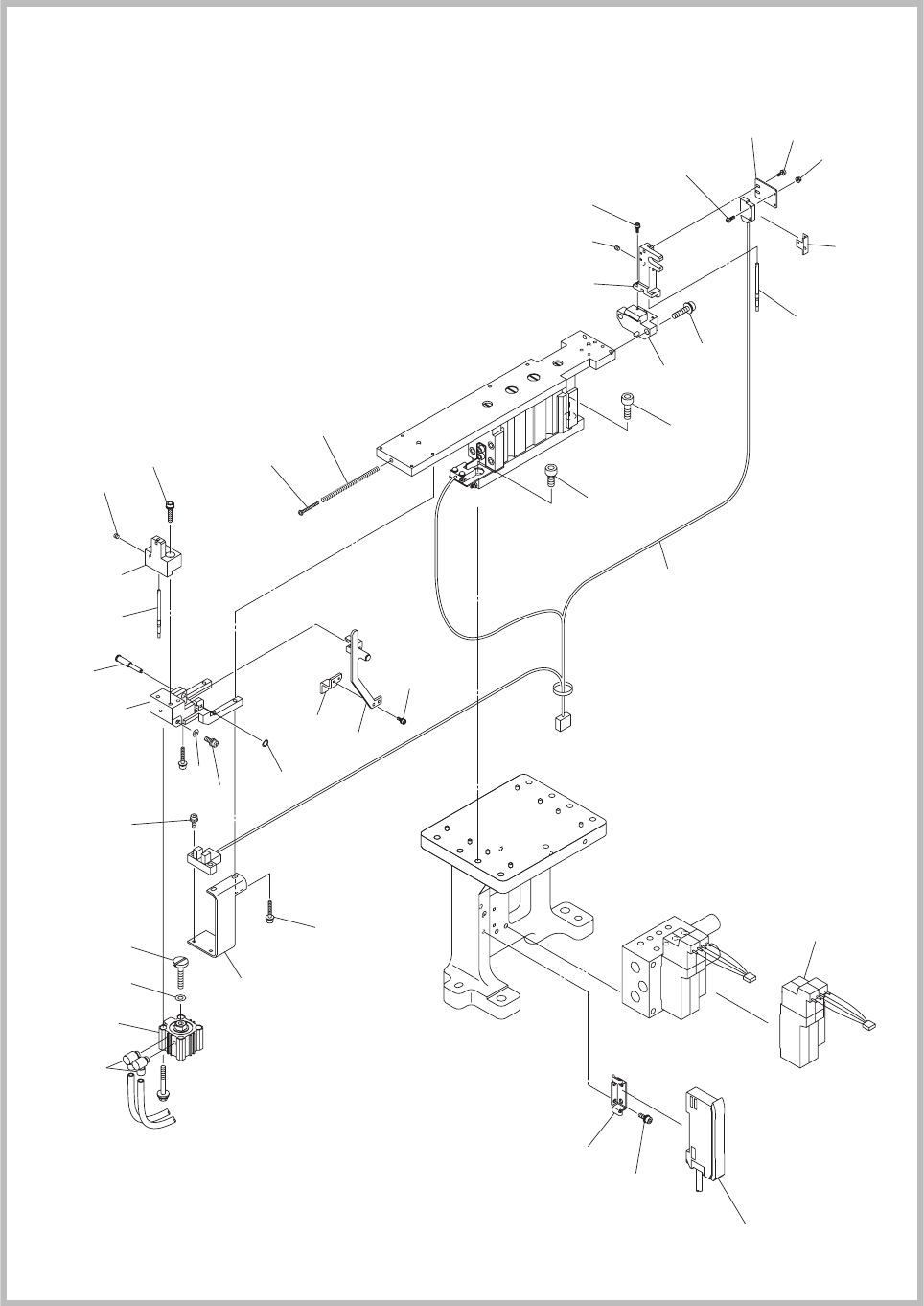

Fig. J2-2
ノズルストッカ駆動部
Nozzle Stocker Driving Section
1002-001
121
148
123
101
103
109
1 1 2
108
104
106
102
1 1 0
105
1 1 1
107
133
130
131
129
130
131
132
133
130
131
127
147
125
126
134
134
133
130
131
128
146
14 9
145
135
136
137
138
139
1 50
124
141
139
140
127
1 1 4
1 1 4
1 1 9
120
1 1 3
140
139
151
Fig. J2
多機能ノズルストッカ増設
(GS-NM100)
MULTI-FUNCTIONAL NOZZLE STOCKER ADDITION(GS-NM100)
