6 Checking and adjusting 3x8mm, 12-88mm S-Feeder
6.1 Overview: S-Feeder test set for 3x8mmS and 12-88mmS cover strip
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 107
6
6 Checking and adjusting 3x8mm, 12-88mm S-Feeder
Checking and adjusting 3x8mm, 12-88mm S-
Feeder
6.1
6.1 Overview: S-Feeder test set for 3x8mmS and 12-88mmS cover strip
Overview: S-Feeder test set for 3x8mmS and 12-88mmS cover
strip
6.2
6.2 12-88mmS: Checking cover strip disposal motor, current input and the direction of rotation
12-88mmS: Checking cover strip disposal motor, current input
and the direction of rotation

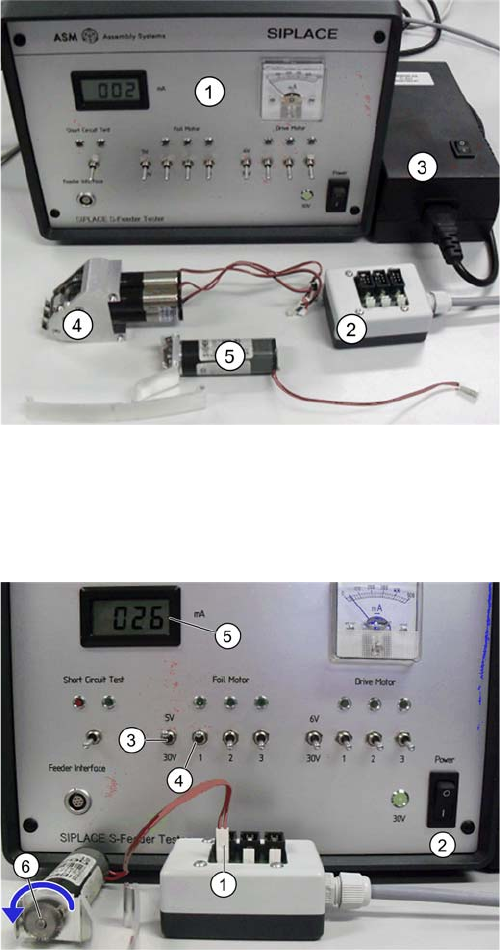

1. Siplace S-Feeder Motor Tester
2. Extension bos with cable
3. power supply
4. 3x8mm cover strip motor complete
5. 12-88mm premounted cover strip motor
1. Set every toggle switch down and connect the motor to
the connector 1 on the extension box.
2. Turn on the S-Feeder Motor Tester.
3. Set the 5/30V switch to 5V. The switch position 30V is
suitable for endurance test.
4. Turn the "foil motor - switch 1" up
5. Check the current consumption of the motor tester.
Setpoint is 30 - 55mA.
6. Check the direction of rotation of the motor. It must ro
-
tate counter-clockwise.
6 Checking and adjusting 3x8mm, 12-88mm S-Feeder
6.3 3x8mmS: Checking cover strip disposal motor, direction of rotation and function
108 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur
6.3
6.3 3x8mmS: Checking cover strip disposal motor, direction of rotation and function
3x8mmS: Checking cover strip disposal motor, direction of rota
-
tion and function

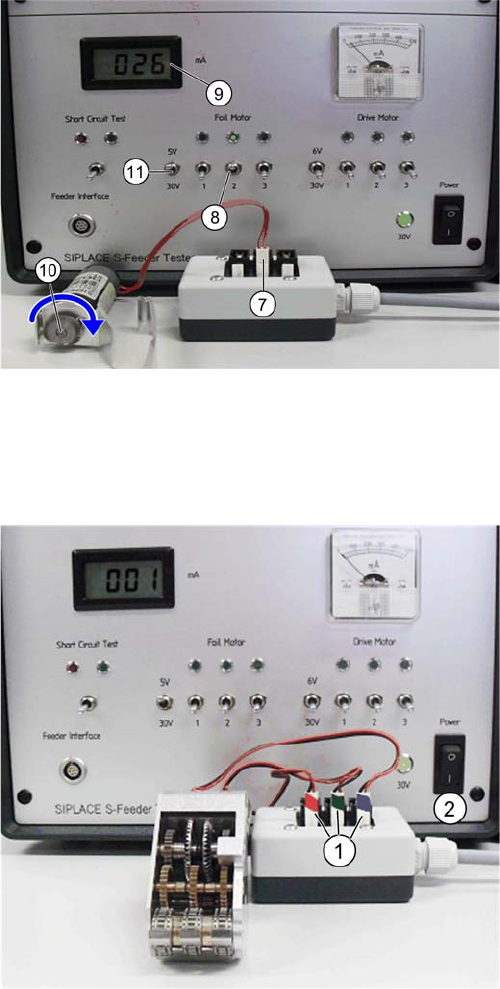

7. Turn on the switch 1 (see point 4) back down and put
the motor in slot 2 (white pedestal) of the extension box.
8. Now, turn on the switch 2 under "cover device" up
-
wards. Make sure that the switch 5/30V is still on 5V.
9. Check the current consumption. Setpoint is here also
30 - 55mA.
10. Check the direction of rotation of the motor. It must ro
-
tate in a clockwise direction.
11. Would you like to test the motor in continuous opera
-
tion, set the switch 5/30V to 30V on.
1. Set switches 1-3 in "Foil motor" in the lower position
and insert the cover strip disposal motor unit to the exten
-
sion box. Track 1 (red) on the connector 1, track 2 (green)
on the connector 2 and 3 track 3 (blue) on the Connector
3
2. Switch on the S-Feeder Motor Tester
