9 3x8mm S-Feeder Transport moto r exchange 9.1 Drive motor disassembly 120 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur ▪ Loosen the motor fastening (right feed er - side) -> 2 screws ▪ Please do not lose the …
9 3x8mm S-Feeder Transport motor exchange
9.1 Drive motor disassembly
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 119
9
9 3x8mm S-Feeder Transport motor exchange
3x8mm S-Feeder Transport motor exchange
9.1
9.1 Drive motor disassembly
Drive motor disassembly

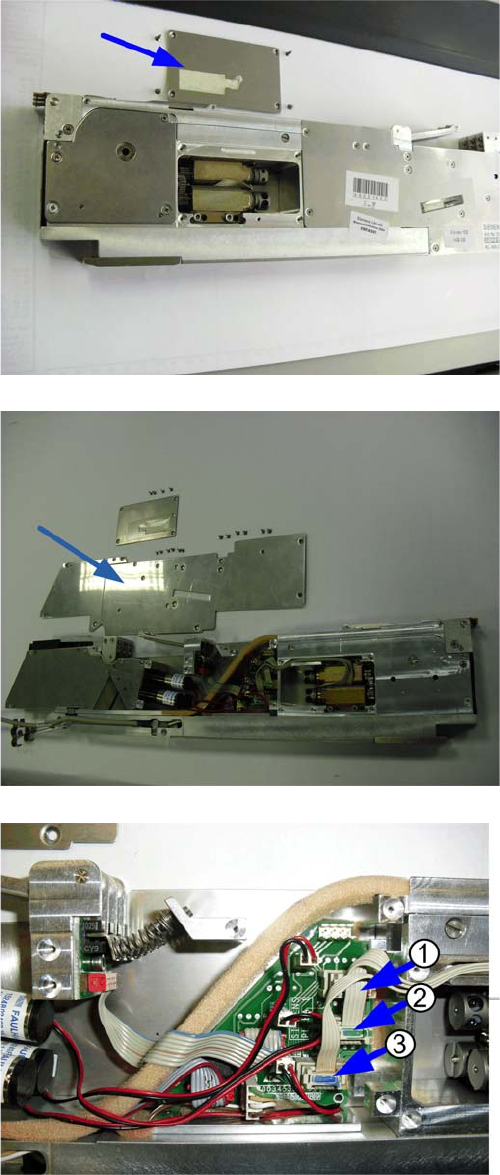

▪ Remove the motor cover plate on the left side
-> 4 crosshead screws.
▪ Remove the side panel on the right side
-> 12 crosshead screws
▪ Unplug drive motor
1 = Red connector Track 1 (left)
2 = Green connector Track 2 (middle)
3 = Blue connector Track 3 (right)
9 3x8mm S-Feeder Transport motor exchange
9.1 Drive motor disassembly
120 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur

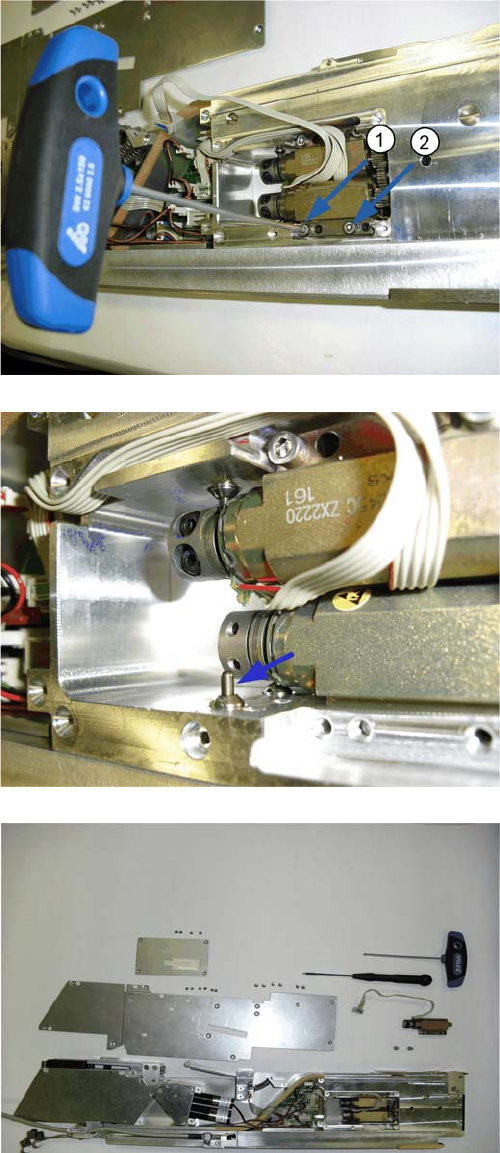

▪ Loosen the motor fastening (right feeder - side)
-> 2 screws
▪ Please do not lose the limit pin!
▪ The disassembly is completed
9 3x8mm S-Feeder Transport motor exchange
9.2 Drive motor assembly
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 121
9.2
9.2 Drive motor assembly
Drive motor assembly

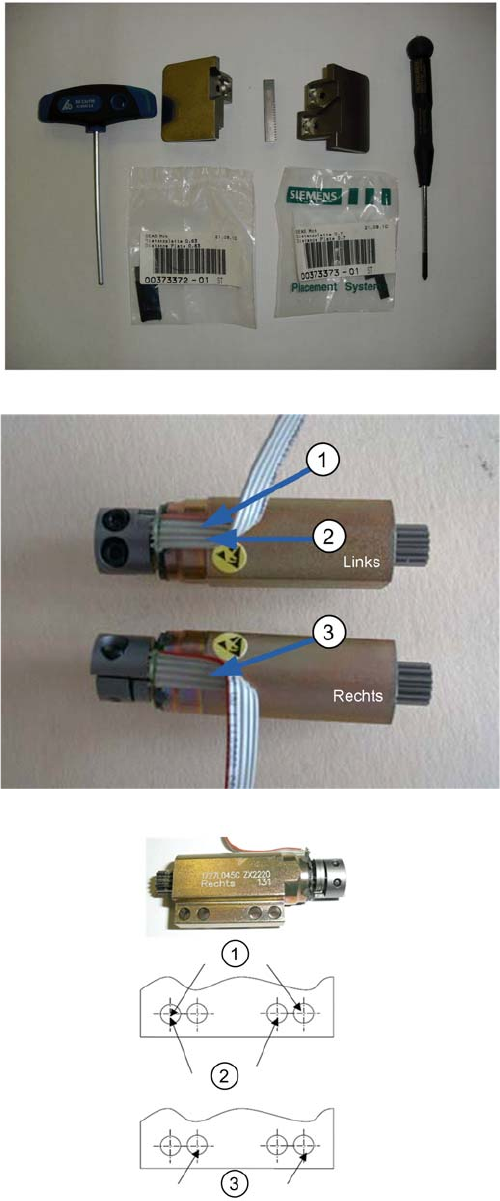

Required tools for assembly
▪ Allen key 2.5
▪ Waterproofed coloured pencil (green/blue/red)
▪ Distance plate 0,7mm
▪ Distance plate 0,63 mm
▪ Safety plate right/middle
▪ Safety plate left
▪ Crosshead screwdriver (small)
▪ Label the connectors:
1 = Red (left track)
2 = Green (middle track)
3 = Blue (right track)
▪ Bend the cables according to the motor position.
▪ Use the demounted motor as sample.
▪ For the left and middle track a motor labled „Left“ will
be used!
The following drill holes are used for fixation of motors:
1. Screws for drive motor middle.
2. Screws for drive motor left.
3. Screws for drive motor right.
