9 3x8mm S-Feeder Transport motor exchange
9.3 Following tasks
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 123
9.3
9.3 Following tasks
Following tasks
Set up the pick-up position with the S-Feeder Test Station (SFTS).
Check the pickup position of all tracks with the SFTS and then mount the motor cover. Read the corre
-
sponding instructions for SFTS.

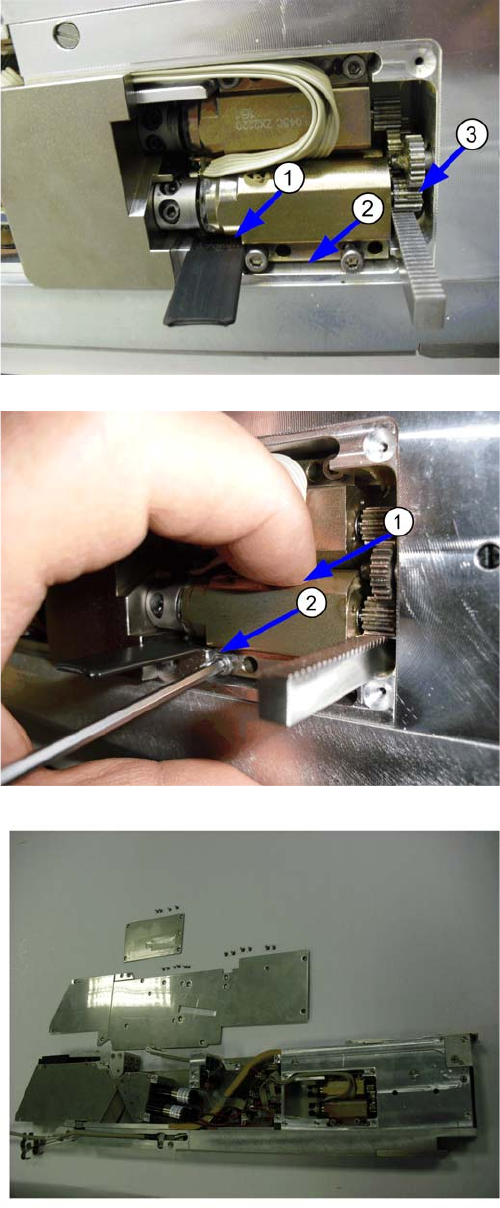

1. Insert the appropriate adjust gauge under the rear
part of the motor. 003773373-01 adjust gauge
0,7mm for motor " right and middle track".
003773372-01 adjust gauge 0,63mm for "left track"
2. By the toothed rack and the adjustment gauge, the
distance between feeder housing and motor will be
set.
3. The two gear wheels are well positioned to one an
-
other.
1. Lightly press the motor on the adjust gauge and the
toothed rack
2. Mount the motor with two screws.
▪ Remove the toothed rack, adjust gauge and safety
plate.
▪ Assemble the side panel of the feeder.
▪ The motor cover is mounted only after setting the
pick-up position.
▪ If this is to be carried out later then please mount the
motor cover, in order to avoid the soiling and the loss
of components.
▪ The installation of the motor is completed.
9 3x8mm S-Feeder Transport motor exchange
9.3 Following tasks
124 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur
10 3x8mm S-Förderer - Foil disposal unit
10.1 Disassembling the foil disposal unit
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 125
10
10 3x8mm S-Förderer - Foil disposal unit
3x8mm S-Förderer - Foil disposal unit
10.1
10.1 Disassembling the foil disposal unit
Disassembling the foil disposal unit
Dismantling of Roller Assembly
NOTICE! Note before disassembly!
1. Screws with cross recessed head are "Right Hand
Thread"
2. Screws with allen key head are "Left Hand Thread"!
1. Remove three screws from the cover.
