11 3x8mm S-Feeder - Worm gear drive 11.1 Removal of worm gear drive 136 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur Removal of Control Board Cover [00345351-xx] Removal of Control Board [00345355Sxx] Removal of …
11 3x8mm S-Feeder - Worm gear drive
11.1 Removal of worm gear drive
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 135
11
11 3x8mm S-Feeder - Worm gear drive
3x8mm S-Feeder - Worm gear drive
11.1
11.1 Removal of worm gear drive
Removal of worm gear drive

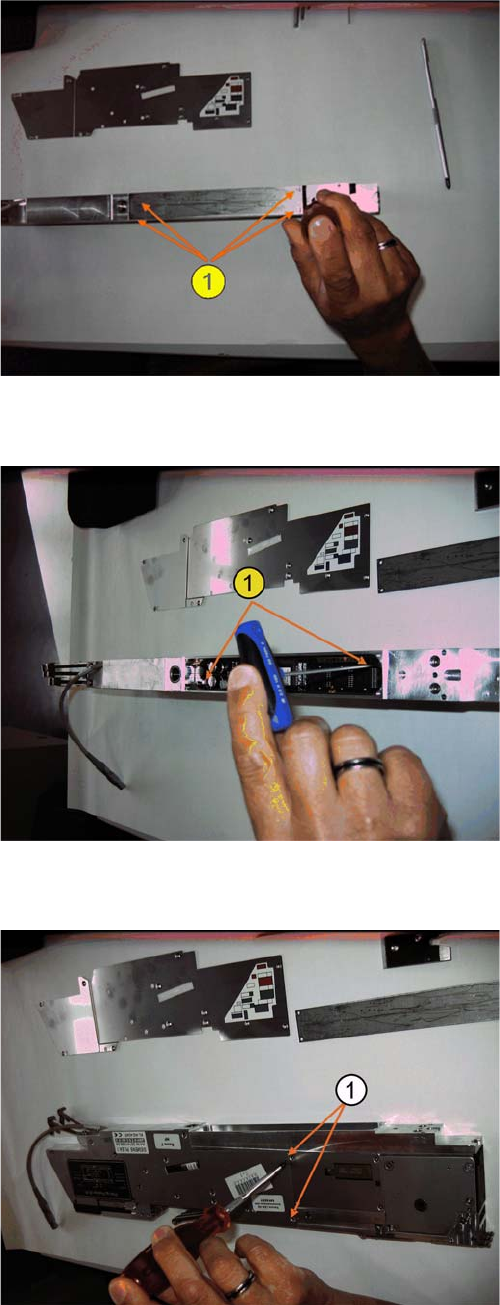

Removal of the right side panel [00341931-xx]
Removal of Centering Plate [00351601Sxx]
1. Remove the 12 countersunk screws.
1. Remove the cross recessed screw as show.
11 3x8mm S-Feeder - Worm gear drive
11.1 Removal of worm gear drive
136 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur
Removal of Control Board Cover [00345351-xx]
Removal of Control Board [00345355Sxx]
Removal of Drive complete [00343996Sxx]
1. Remove the four countersunk screws on the cover
plate.
1. Remove both M5 screws.
1. Remove both screws on the side plate, as shown.
11 3x8mm S-Feeder - Worm gear drive
11.1 Removal of worm gear drive
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 137

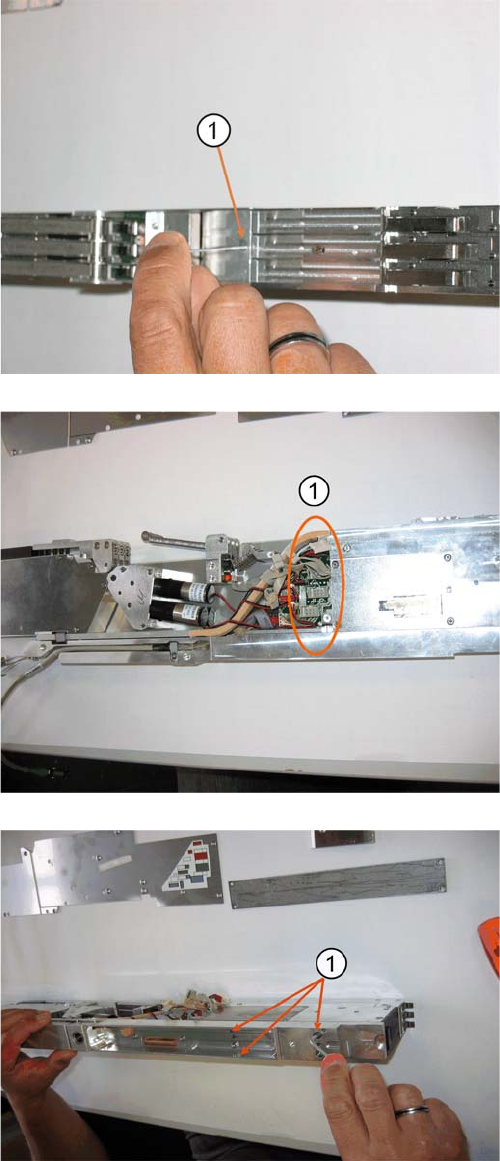

1. Remove the M1.3 screw on the tape channel
[03048474-xx] as shown.
1. Disconnect all drive motor and lifting magnet connec
-
tors (qty : 4) from the distributor board
[00345354Sxx].
1. Remove four M2.5 screws at the lower side as
shown.
