11 3x8mm S-Feeder - Worm gear drive 11.2 Design of worm gear drive 140 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 11.2 1 1 . 2 D e s ig n o f w o r m g e a r d r iv e Design of worm gear drive 1. Take 2x M2.5 a…
11 3x8mm S-Feeder - Worm gear drive
11.1 Removal of worm gear drive
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 139

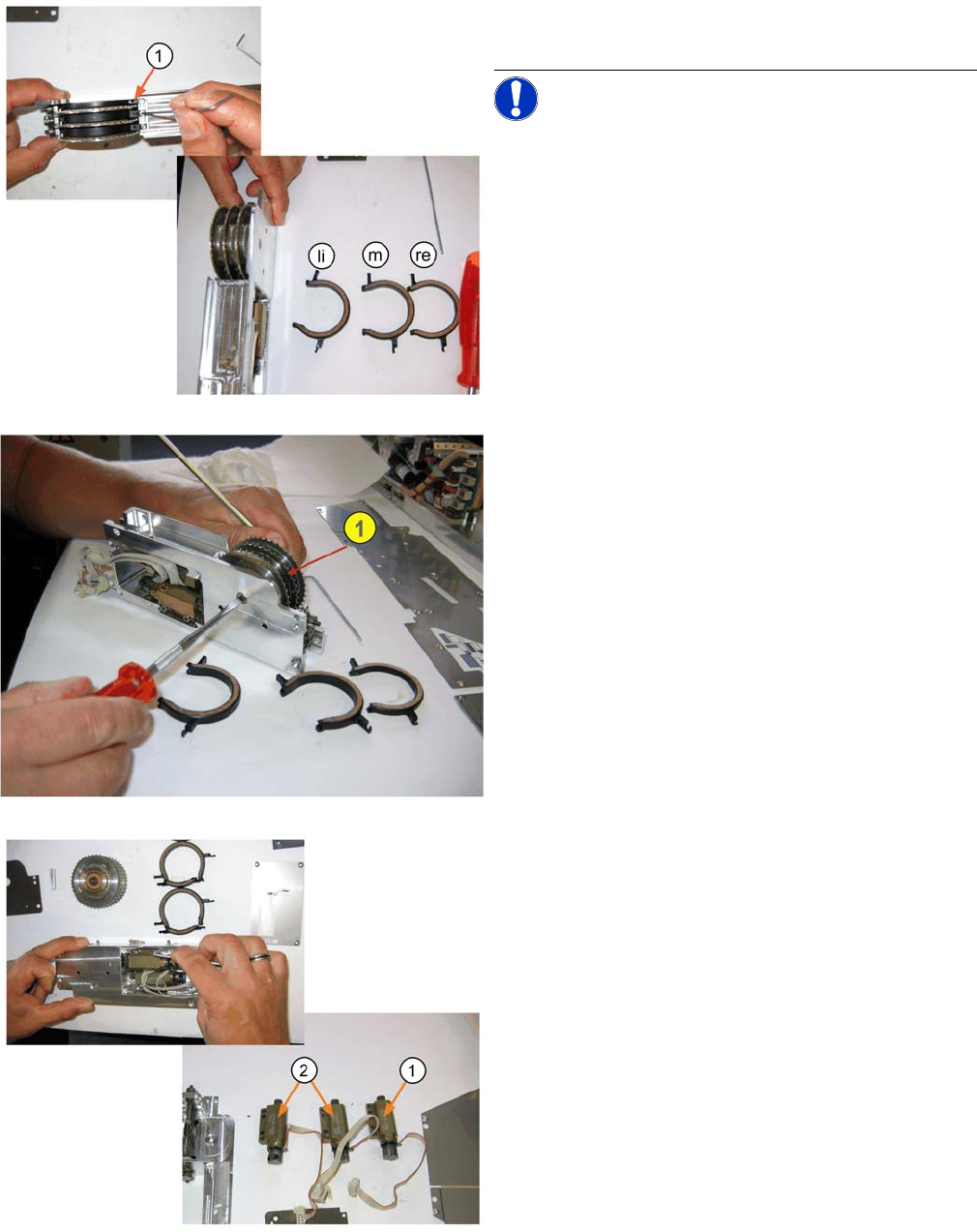

Removal of the Worm Gear
1. Remove M1.5 screw from each of the worm wheel
sealings.
NOTICE! All 3 worm wheel sealings have differ
-
ent marking on the body.
Li = Left [00348971-xx]
m = Middle [00348972-xx]
re = Right [00348973-xx]
1. Remove the transport storage unit [00344048-xx]
Remove the drive motors:
1. Right drive motor complete [00351603-xx]
2. Left/right drive motor complete [00351602-xx]
11 3x8mm S-Feeder - Worm gear drive
11.2 Design of worm gear drive
140 SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur
11.2
11.2 Design of worm gear drive
Design of worm gear drive
1. Take 2x M2.5 axial screws out of the worm wheel.
2. Slide out worm gear as shown.
1. 03048474-xx Tape channel complete
2. 00341931-xx right side panel
3. [00344048-xx] Transport wheel bearing unit
4. 00344019-xx Bearing support wall
5. 00351603-xx Right drive motor complete
6. 00351602-xx Left drive motor complete
7. 00344007-xx Tape chanell top complete
8. [00345355Sxx] Control PCB for 3x8mm S
9. [00351601Sxx] Centering plate with pins
10. 00345830-xx complete protection front
11. [00345351-xx] PCB protection
12. 00349259-xx Left drive cover plate
13. 00349260-xx Right drive cover plate
11 3x8mm S-Feeder - Worm gear drive
11.2 Design of worm gear drive
SIPLACE S-Feeder Repair SIPLACE S-Förderer Reparatur 141
1. 00348621-xx Adapter
2. 00348975-xx Screw seal middle, complete
3. 00348974-xx Screw seal left, complete
4. 00348973-xx Right worm gear seal, complete
5. 00348976-xx Middle worm gear seal, complete
6. 00348972-xx Worm wheel seal middle, complete
7. 00348971-xx Worm wheel seal left, complete
1. 00344010-xx Clamping piece long
2. 00326602-xx Miniature ball bearing 3x7x3 m. with
collar
3. 00344036-xx Worm, long, complete
4. 00344009-xx Clamping piece
5. 00344035-xx Worm, short, complete
