1 General
1.1 License Agreement
Warning:
Please use this operating system only for SIPLACE computers (SIPLACE machines or
SIPLACE Pro programming systems) in a workgroup (SIPLACE net).
This CD contains pre-configured software with which you can install a pre-set operating system on your
SIPLACE computer (see Warning above).
SIPLACE has the sole responsibility for executing this software.
SIPLACE provides support for this product.
Note:
For Installation in a domain, please use the current documentation "Installation Manual for
Windows XP (manual setup)", Item no.: 00193872-xx.
1.2 Installation process
This manual describes the unattended Windows XP Setup for SIPLACE placement machine computers
and SIPLACE programming system computers in a workgroup.
The unattended setup was developed by SIPLACE to execute a quick, complete and adapted
installation of Windows XP Professional for the SIPLACE computers. The setup can be executed on
the SIPLACE computer systems as described in chapter 4.
If you change the hardware configuration radically (for example exchange of the mainboard
type) you have to do a fresh reinstallation of the unattended Setup.
The setup provides the Windows XP operating system only in English (American).
Since the CD-ROM is bootable, you can start the installation simply by rebooting the system with the
CD in the CD-ROM drive. This requires that BIOS is set up to boot from a CD before the hard drive.
Note:
All data on the hard disk will be destroyed during the unattended setup. Therefore you have
to save necessary data before you start the setup.
The unattended setup will lead the user in English. Please refer to the following chapters.
During the installation you have to enter information about the system configuration (see chapter
„Required Parameters“).
Installation Manual for Windows XP (unattended setup) CD V3.0 02/2011 US+DE
Installationsanleitung für Windows XP (unattended setup) CD V3.0
6
2 Scope of delivery
Two different Installation Packages are available:
• Complete Package with license (Item no. 00376350-09)
• Media Package without license (item no. 00376370-09)
Both packages contain:
• Software WinXP-SP2 and WinXP-SP3 for machines & SIPLACE Pro:
• Boot DVD-ROM for the operating system Windows XP Professional SP2 and SP3 (“Windows XP
Unattended Setup DVD 3.0”)
• Boot CDROM for operating system Windows XP Professional-SP2 (“Windows XP Unattended Setup 2.08”)
• Boot CDROM for operating system Windows XP Professional-SP3 (“Windows XP Unattended Setup CD
V3.0”)
• Installation manual for Windows XP (unattended setup) DVD V3.0
• Installation manual for Windows XP (unattended setup) CD V3.0
Installation Manual for Windows XP (unattended setup) CD V3.0 02/2011 US+DE
Installationsanleitung für Windows XP (unattended setup) CD V3.0
7
Interfaces
2.1 Network Cards for HFx
The station computer PC 076 (1GHz) has an integrated network card and a network card with two
separate network connections. For the communication with the Machine controller, only the integrated
network card will be used (see
Fig. 2-1:). The other network card will be used for the connection to the
programming system and for the GEM option.
1
3
2

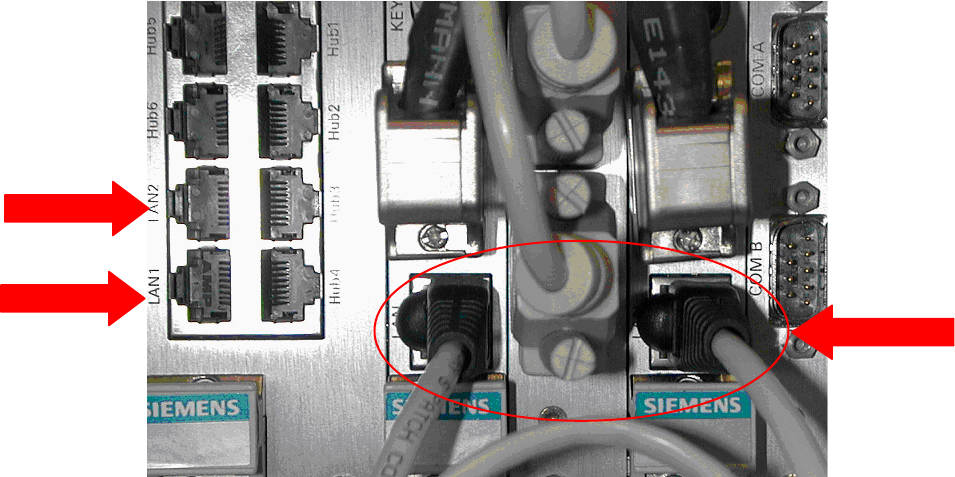

Fig. 2-1: Connections
1 Legend:
• 1: Connection to the programming system
• 2: Connection to the GEM Host
• 3: Connection between station computer and machine controller a special cable is used)
