7 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE G -S006-15 1004-003 105 6301260068 NAMEPLA TE,INDEX 1 861B--100-105 6P460124 106 6301531373 GRIP 2 861B--100-106 226D0122 107 6301271064 MECHP ARTS 1 861B--100-…
G -S006-15
0709-001
6
106
113
114
120
132
131
123
124
119
112
155
.
157
.
156
155
.
157
.
156
164
.
163
.
162
174
177
.
175
.
176
171
164
.
163
.
162
170
106
107
165
.
166
.
167
105
内がテープフィーダセット治具です。
132
131
133
177
.
175
.
176
Inside the box shows the tape feeder set jig.

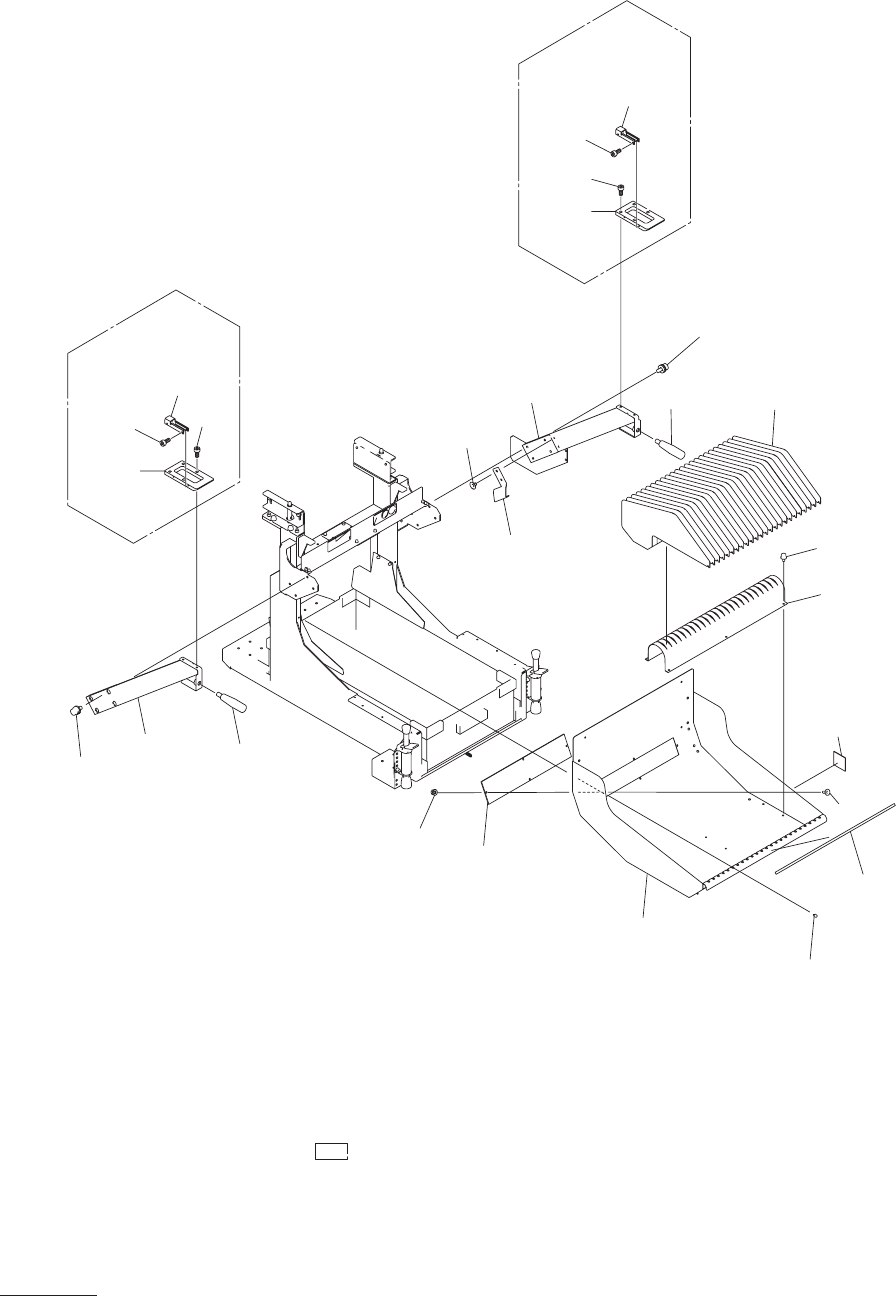

フィーダカート部
FEEDER CART
SECTION
Fig. B-2
リールホルダ、ハンドル
Reel Holder
, Handle
7
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G -S006-15
1004-003
105 6301260068 NAMEPLATE,INDEX 1 861B--100-105 6P460124
106 6301531373 GRIP 2 861B--100-106 226D0122
107 6301271064 MECHPARTS 1 861B--100-107 226J1915
112 6301592688 BOX 1 861B--100-002 211B1322
113 6301599625 GUIDE 1 861B--100-003 212A2493
114 6301499147 PLATE 24 861B--100-004 211DC091
119 6301586441 SUPPORT 1 861B--100-019 211K3431
120 6301586458 SUPPORT 1 861B--100-020 211K3432
123 6301581064 COVER 1 861B--100-023 211AC133
124 6301593616 PLATE 1 861B--100-024 211DD143
131 6301591407 PLATE 2
861B-A100010-A001
211DD121
132 6301596181 GUIDE 2
861B-A100010-A002
212A2483
133 6301280509 BOLT 2 SSH-M4X8
861B-A100010-A003
221E0302
155 6300007619 BOLT,HEX-SCT 10 M4X8 861B--100-205 221A0016
156 4111414008 WASHERV4X9X0.8 10 861B--100-206 221H0315
157 4111412905 WASHERSPR4 10 861B--100-207 221H0284
162 4111414305 WASHERV6X12.5X1.6 16 861B--100-212 221H0320
163 4111413001 WASHERSPR6 8 861B--100-213 221H0289
164 6300007879 BOLT,HEX-SCT 8 M6X12 861B--100-214 221A0042
165 4110548506 NUTHEX4 4 861B--100-215 221F0081
166 4111192104 WASHERV4X9X0.8 4 861B--100-216 221H0314
167 4110081706 WASHERSPR4 4 861B--100-217 221H0283
170 4111137501 SCRTRS4X10 4 861B--100-220 221E0530
171 4111408007 SCRTRS5X6 2 861B--100-221 221E0536
174 6300007626 BOLT,HEX-SCT 6 M4X10
861B-A100010-A004
221A0017
175 4111414008 WASHERV4X9X0.8 6
861B-A100010-A005
221H0315
176 4110081706 WASHERSPR4 6
861B-A100010-A006
221H0283
177 6300007756 BOLT,HEX-SCT 4 M5X12
861B-A100010-A007
221A0030
CR-G300
G -S006-15
B-2
