Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
40
: Use the two outer screws to adjust the adapter so that it lies flat on the table's magnetic rail.
They are provided to prevent the magnetic rail being damaged when you tighten the screws
on the adapter.
2
: Fix the adapter using the 3 screws on the front panel of the adapter so that it is seated firmly
on the table.
2
With gap: WRONG!!!
Without gap: RIGHT!!!
3 screws
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
41
2.7.4 Fitting the Traystak feeder
: Fit the Traystak feeder on the adapter using the 4 screws.
2
Make sure that the pins guide the Traystak feeder into the correct position. 2
2
2
2
2
2
2
2
2
2
4 screws
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
42

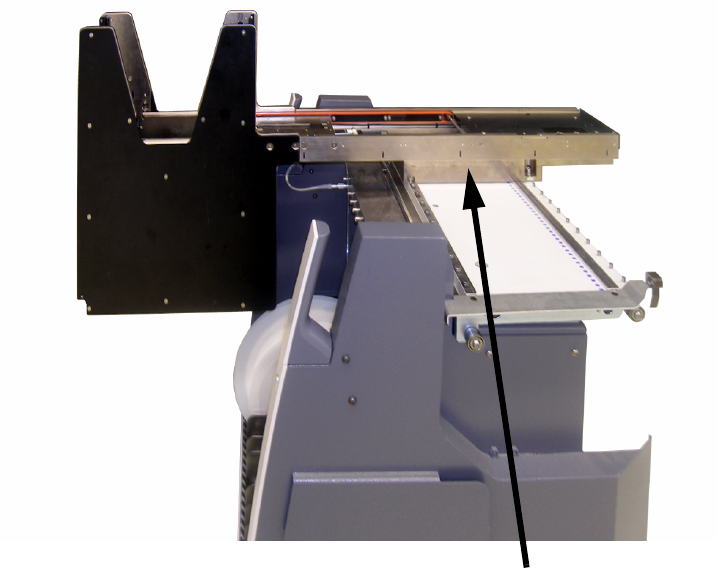

: Check that the Traystak feeder is seated correctly. There must be no gap between the Traystak
feeder and the adapter.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
without gap
