Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLAC E S-25 HM / S-27 HM / HS-50 / HS-60 / HF -series / X-series 11/2006 Edition 42 : Check that the T raystak feed er is seated correc tly . There must be no gap betw…
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
41
2.7.4 Fitting the Traystak feeder
: Fit the Traystak feeder on the adapter using the 4 screws.
2
Make sure that the pins guide the Traystak feeder into the correct position. 2
2
2
2
2
2
2
2
2
2
4 screws
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
42
: Check that the Traystak feeder is seated correctly. There must be no gap between the Traystak
feeder and the adapter.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
without gap
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
43
: Connect the Traystak feeder to the communication interface on the component trolley.

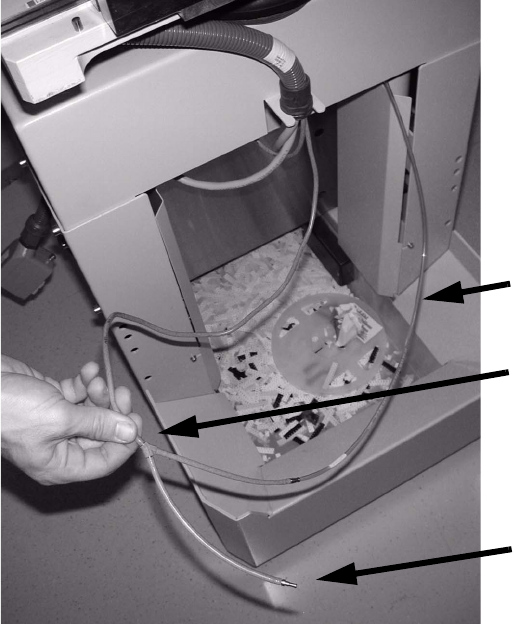

: Connect the air connection on the feeder to the air connection provided by the customer,
or
: Disconnect the compressed air hose from the compressed air supply for the component trolley.
: Fit a branch to connect the Traystak feeder to the compressed air as well.
2
2
: Tie all the hoses and cables together so that they cannot be damaged.
2
Branch
Connection for Traystak feeder
Compressed air, component trolley
