Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
44
2.8 Retrofit the SIPLACE S-25 HM / S-27 HM
2.8.1 Work at the location
: Dock the component trolley out of the placement machine.
: Shut down the placement system and switch it off.
2

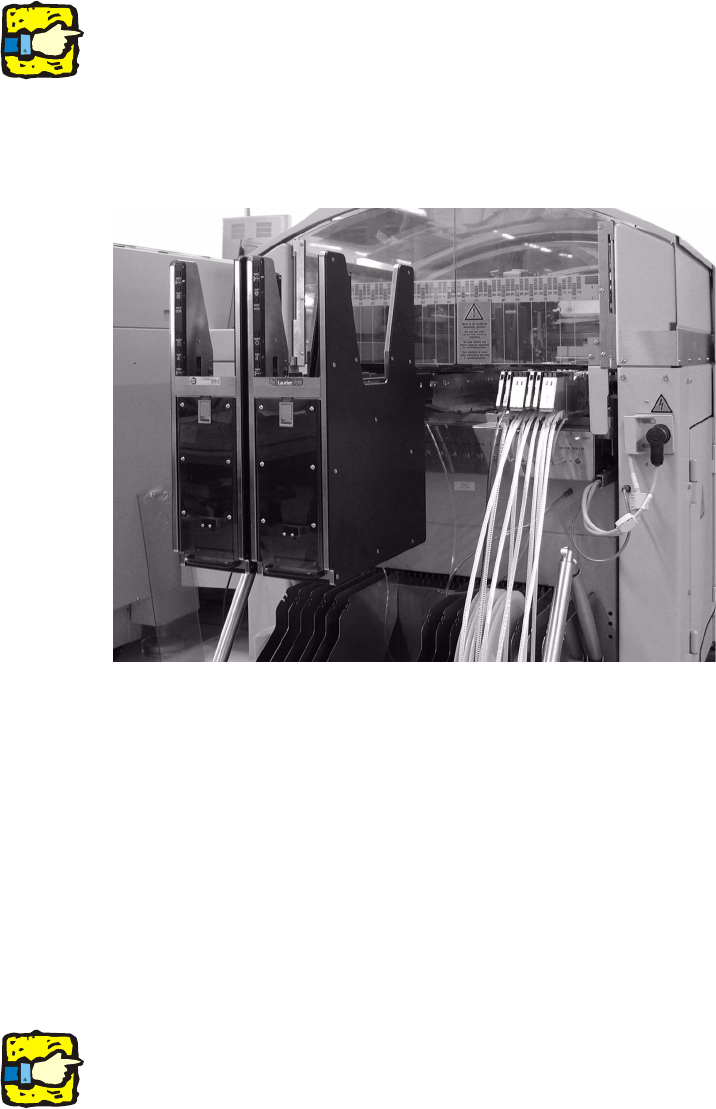

The nozzle changer and tape guide channel must be removed if more than 2 Traystak feeders are
fitted. 2
2

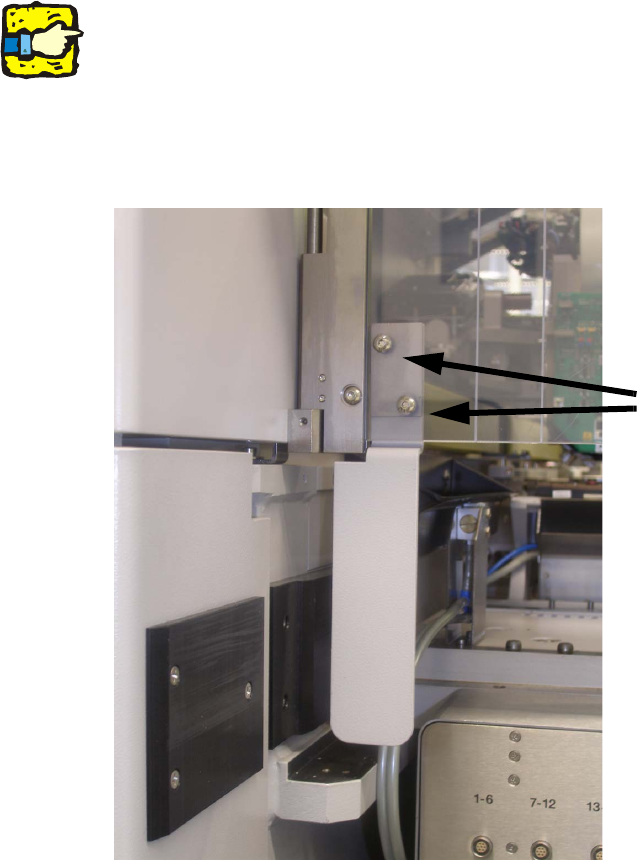

: If necessary, unscrew the hand guard beneath the left-hand safety door since it will no longer
close.
2
2
2
2
2
2 screws
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
45
: Loosen and remove the two screws on the tape guide channel at the desired location.
The two hexagonal spacer bolts have to remain fitted.
2
: Fit the shortened tape guide channel (only necessary if 1 or 2 Traystak feeders are fitted).
: Fit the adapter on the component trolley.
2
2 screws
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
46
: Move the component trolley into the placement machine.
2
As you dock the component trolley, make sure that it does not collide with the tape guide channel
or nozzle changer (if fitted). 2
2
: Screw the component trolley tight in the machine and connect the component table clamp -->
Risk of head crash.
2
2
2.8.2 Working on the component trolley
: Remove the feeder fixing on the component trolley if present.
2.8.3 Software
: Switch on the machine and switch to the SITEST program.
: If necessary, deactivate the relevant nozzle changer under Gantries.
2
If you deactivate the nozzle changer, you will not be able to use the nozzle reject device. 2
2
2
