Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
54

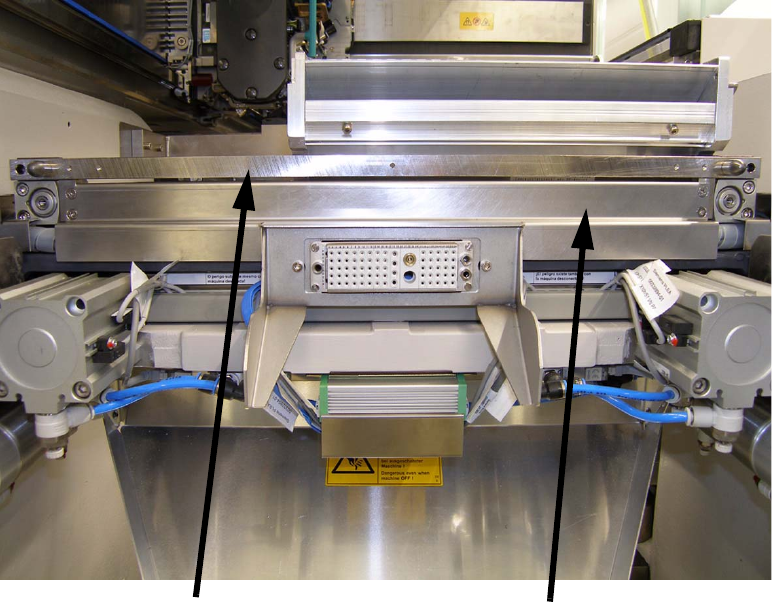

: Insert the standard bar with some modified cover plate for the ODU connector. Do not screw it.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Bar
Cover plate
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
55

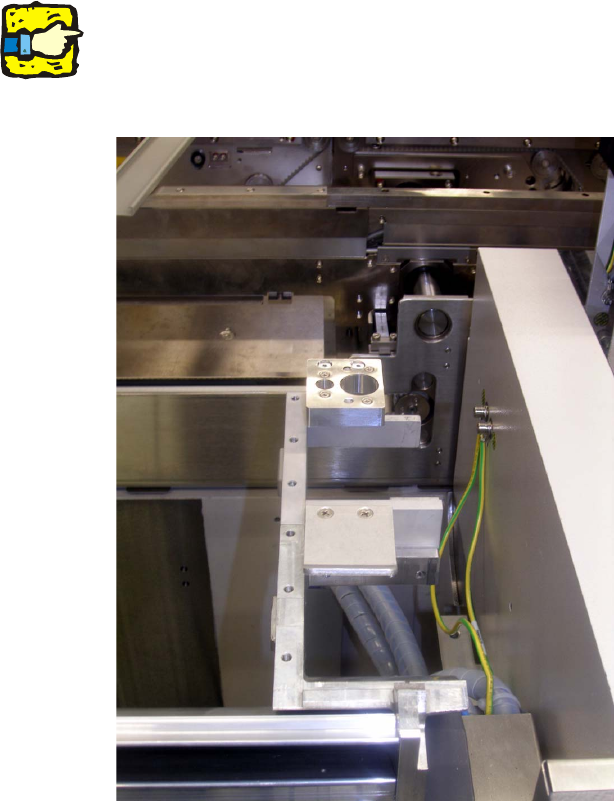

: Refit the component reject bin and cover plate.
If required, fit the carrier for the nozzle reject bin with reject device.
2
If you wish to use the nozzle reject device, do not deactivate the nozzle changer in the SITEST
program. If you do, the reject position will have to be recalibrated. 2
2
2
2
2
2
2
2
2
2
2
2
Retrofit instructions: Besi JTF2 (Traystak feeder) SIPLACE S-25 HM / S-27 HM / HS-50 / HS-60 / HF-series / X-series
11/2006 Edition
56
: Refit the reject bin sensor option, if present.
: Dock the component trolley on the machine and screw the safety bars with M6x30 screws
--> Risk of head crash
2
2
2
2
2
Safety bar
