P-254-007 - 第125页
MODEL GXH-1S 1012-005 123 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 106 6301349848 CYLINDER 1 -B0914,-B0915 803J--210-106 224C0567 107 6301243900 CYLINDER 1 -B0914,-B0915 803J--210-107 224C0529 108 630124…
MODEL GXH-1S
0709-003
122
位置決め部
POSITIONING SECTION

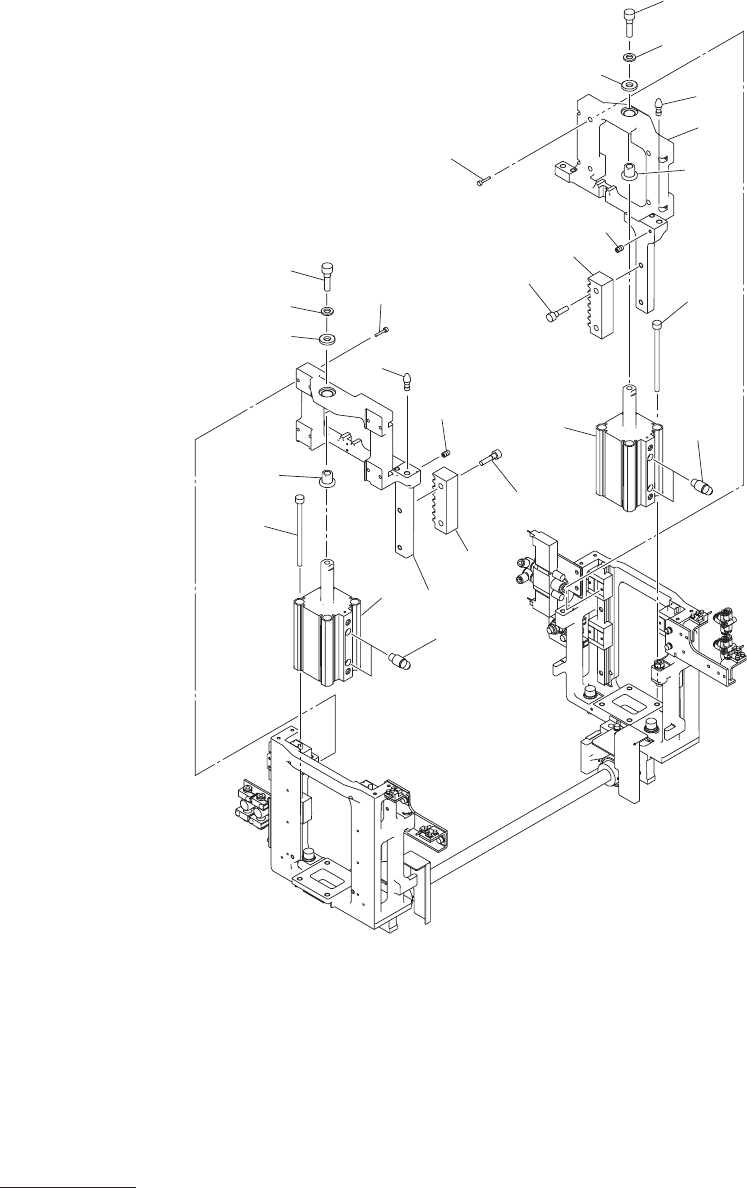

Fig. J-2
駆動部
Driving Section
106
108
109
128
123
152
152
151
151
153
161
132
131
108
109
107
116
129
131
130
132
161
153
130
162
162
MODEL GXH-1S
1012-005
123
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
106 6301349848 CYLINDER 1 -B0914,-B0915
803J--210-106 224C0567
107
6301243900 CYLINDER 1 -B0914,-B0915
803J--210-107 224C0529
108
6301242798 PIPE FITTINGS 4 803J--210-108 225F0558
109
6300123821 BOLT,HEX-SCT 8 803J--210-109 221A0151
116
6301568683 GEAR 1 803J--210-116 223E0466
123
6301568690 GEAR 1 803J--210-123 223E0467
128
6301687247 BASE 1 803J--210-008 210A3087
129
6301687254 BASE 1 803J--210-009 210A3088
130
6301249148 PIN,GUIDE 2 803J--210-010 216F0864
131
6301246789 HOLDER 2 803J--210-011 216B1382
132
4111414701 WASHER V 10X21X2 2 803J--210-012 221H0325
151
6300007664 BOLT,HEX-SCT 16 M4X20 221A0021
152
6300008036 BOLT,HEX-SCT 4 M8X30 221A0058
153
6300008142 BOLT,HEX-SCT 2 M10X35 221A0069
161
4111413209 WASHER SPR 10 2 SW10 221H0293
162
6300008968 SET SCREW 2 M5X14 SET 221C0009
J-2
4Unit/1Machine
MEMO
