MODEL GXH-1S 0701-002 154 カバー部 COVER SECTION Fig. G-6 左カバー部 Left Cover Section 564 . 573 . 578 564 . 573 . 578 563 . 572 . 577 578 . 573 . 565 563 . 572 . 577 578 . 573 . 565 561 . 571 . 576 562 . 571 . 576 528 505 516 5…
MODEL GXH-1S
1012-004
153
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-5
401 6301459585 BOX 2 803G--210-301 211B1157
402 6301499833 BOX 2 803G--210-302 211B1201
404
6301424477 BOX 1 803G--210-304 211B11
14
405 6301255767 BRACKET 2 803G--210-305 211F8187
406
6301255798 PLATE 1 803G--210-306 211D9464
407
6301424484 BRACKET 1 803G--210-307 211FA389
408 6301255774 PANEL 2 803G--210-308 211C1170
409 6301459608 COVER 1 803G--210-309 211AA766
41
1 6301403229 PLATE 2 803G--210-051 211DB022
412
6301320700 HINGE 2 803G--210-502 226F0154
451
6300334609 SWITCH,BUTTON 2 -S101 803G--210-351 4S1B0085
452
6300334586 DISPLAY ELEMENT 2 803G--210-352 4T400003
453
6300334593 ACCESSORY,SW 2 803G--210-353 23H20029
454
6300002713 SWITCH,BUTTON 2 -S102 803G--210-354 4S1B0032
455
6300000382 ACCESSORY,SW 2 803G--210-355 23H20003
456
6300002515 SWITCH,BUTTON 2 -S103 803G--210-356 4S1B0012
457
6300002744 SWITCH,BUTTON 2 -S104 803G--210-357 4S1B0035
458
4070354704 LED SLP-721F 2 -H104B 803G--210-358 4T3A0246
459
6301241616 SWITCH,BUTTON 2 -S105 803G--210-359 4S1B0151
460
6301449715 UNIT,DISPLAY 2 -N74 803G--210-360 4U210123
461
6301376097 P.C.B,MOUNT 4 -U01 803G--210-061 4B11
1515
462 6301235837 UNIT,I/O 1 N75 803G--210-362 4U250152
463
6301235844 UNIT,I/O 1 N76 803G--210-363 4U250153
467
6301376097 P.C.B,MOUNT 1 U11 803D--210-062 4B1
11515
471 6300007497 BOLT,HEX-SCT 2 M3X4 221A0004
472
4110512804 SCR TRS 4X8 4 M4X8 TRS 221A0016
473
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
474
6300007756 BOLT,HEX-SCT 30 M5X12 221A0030
475
4111410307 NUT HEX 4 16 M4 221E0533
476
4111130700 SCR PAN 3X16 20 M3X16 PAN 221E0491
480
6300007619 BOLT,HEX-SCT 16 M4X8 221A0016
481
4111412806 WASHER SPR 3 2 SW3 221H0281
482
4111412905 WASHER SPR 4 32 SW4 221H0284
483
4111416705 WASHER SPR 5 32 SW5 221H0287
486
4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
487
4111414008 WASHER V 4X9X0.8 32 FW4 221H0315
488
4111414107 WASHER V 5X10X1 32 FW5 221H0318
MODEL GXH-1S
0701-002
154

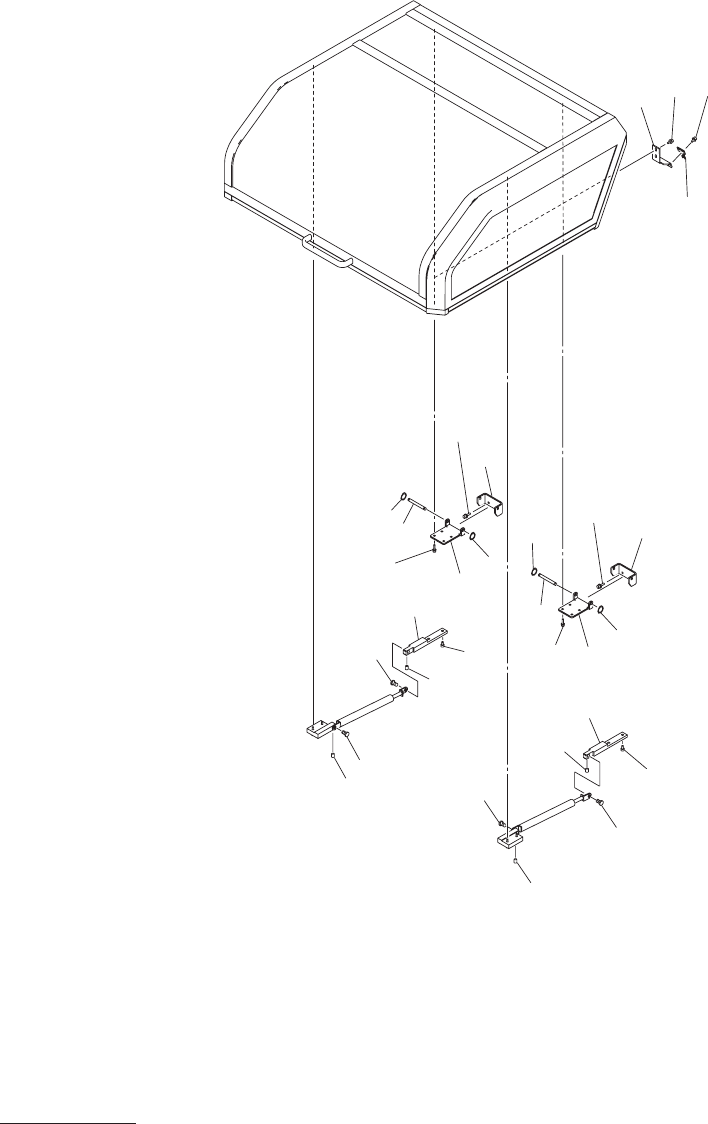

カバー部
COVER SECTION
Fig. G-6
左カバー部
Left Cover
Section
564
.
573
.
578
564
.
573
.
578
563
.
572
.
577
578
.
573
.
565
563
.
572
.
577
578
.
573
.
565
561
.
571
.
576
562
.
571
.
576
528
505
516
517
519
520
519
570
521
521
570
521
570
520
521
570
516
517
522
522
522
522
MODEL GXH-1S
1012-004
155
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-6
505 6300885361 ACCESSORY,SW (KEY) 2 803G--210-405 23H20053
516 6301491226 BRACKET 4 803G--210-016 211FB239
517
6301491240 PIN,HINGE 4 803G--210-017 216D0546
519
6301491233 BRACKET 4 803G--210-019 211FB240
520
6301265346 BLOCK 4 803G--210-020 211G3493
521
6301508740 PIN,HINGE 8 803G--210-021 216D0550
522
4110010409 RING E 6 8 803G--210-062
528 6301414812
PLATE 2 803G--210-028 211DB160
561
6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
562
6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
563
6300007770 BOLT,HEX-SCT 16 M5X20 221A0032
564
6300007862 BOLT,HEX-SCT 8 M6X10 221A0041
565
6300007893 BOLT,HEX-SCT 8 M6X20 221A0044
570
6300082296 SET SCREW 8 M4X4 SET 221C0027
571
4111412905 WASHER SPR 4 8 SW4 221H0284
572
4111416705 WASHER SPR 5 16 SW5 221H0287
573
4111413001 WASHER SPR 6 16 SW6 221H0289
576
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
577
4111414107 WASHER V 5X10X1 16 FW5 221H0318
578
4111414305 WASHER V 6X12.5X1.6 16 FW6 221H0320
