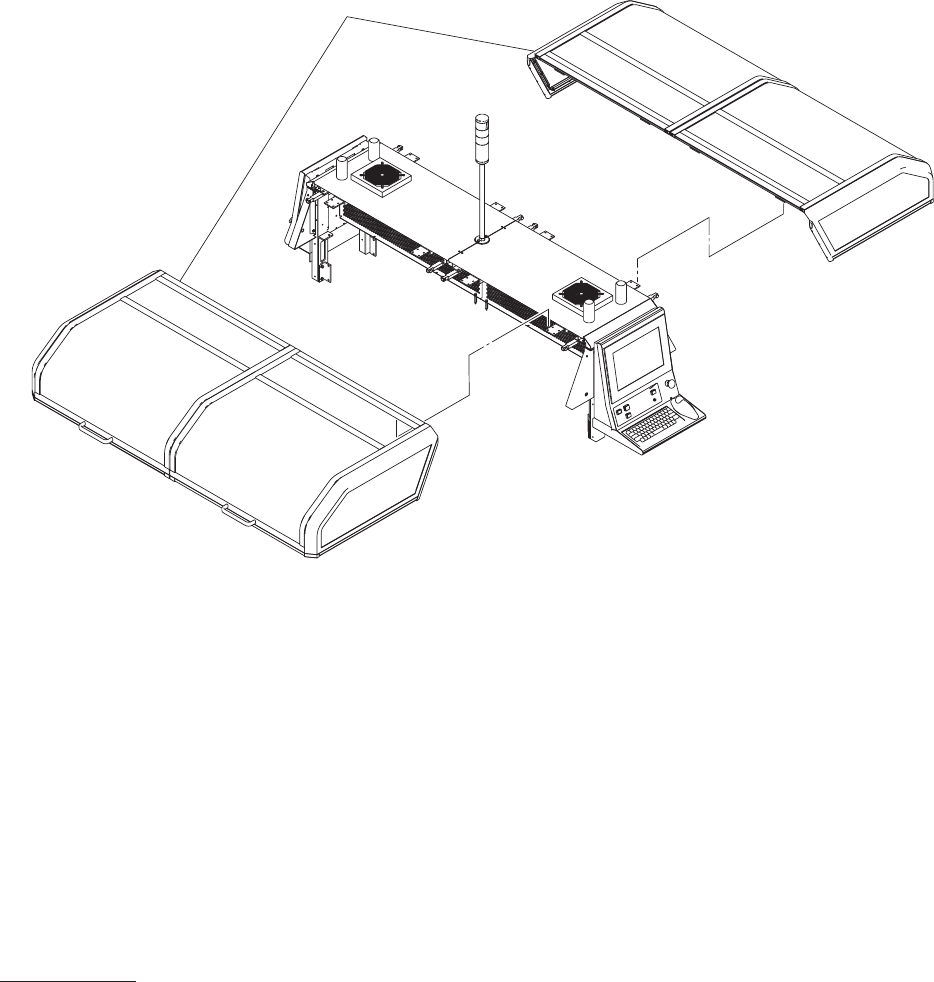

MODEL GXH-1S 0701-002 158 カバー部 COVER SECTION Fig. G-8 開閉扉 Door(located over the beam) 701

MODEL GXH-1S

1012-004

157

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

G-7

605 6300885361 ACCESSORY,SW (KEY) 4 803G--210-405 23H20053

616 6301491226 BRACKET 4 803G--210-016 211FB239

617

6301491240 PIN,HINGE 4 803G--210-017 216D0546

619

6301491233 BRACKET 4 803G--210-019 211FB240

620

6301265346 BLOCK 4 803G--210-020 211G3493

621

6301508740 PIN,HINGE 8 803G--210-021 216D0550

622

4110010409 RING E 6 8 803G--210-062

627 6301414805

PLATE 2 803G--210-027 211DB159

661

6300007619 BOLT,HEX-SCT 4 M4X8 221A0016

662

6300007626 BOLT,HEX-SCT 4 M4X10 221A0017

663

6300007770 BOLT,HEX-SCT 16 M5X20 221A0032

664

6300007862 BOLT,HEX-SCT 8 M6X10 221A0041

665

6300007893 BOLT,HEX-SCT 8 M6X20 221A0044

670

6300082296 SET SCREW 8 M4X4 SET 221C0027

671

4111412905 WASHER SPR 4 8 SW4 221H0284

672

4111416705 WASHER SPR 5 16 SW5 221H0287

673

4111413001 WASHER SPR 6 16 SW6 221H0289

676

4111414008 WASHER V 4X9X0.8 8 FW4 221H0315

677

4111414107 WASHER V 5X10X1 16 FW5 221H0318

678

4111414305 WASHER V 6X12.5X1.6 16 FW6 221H0320

MODEL GXH-1S

0701-002

158

カバー部

COVER SECTION

Fig. G-8

開閉扉

Door(located over the beam)

701

MODEL GXH-1S

1012-005

159

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

G-8

701 6301547527 MECH PARTS(COVER) 1 803G--210-041 226J2350
