P-254-007 - 第186页
MODEL GXH-1S 0602-001 184 架台下 E UNDERFRAME E Fig. BE-1 一次電源 Main Power Supply 73 76 77 53 51 71 70 72 56 76 75 57 . .
MODEL GXH-1S
0602-001
183
Fig. BE
架台下
E UNDERFRAME E
MODEL GXH-1S
0602-001
184
架台下
E UNDERFRAME E

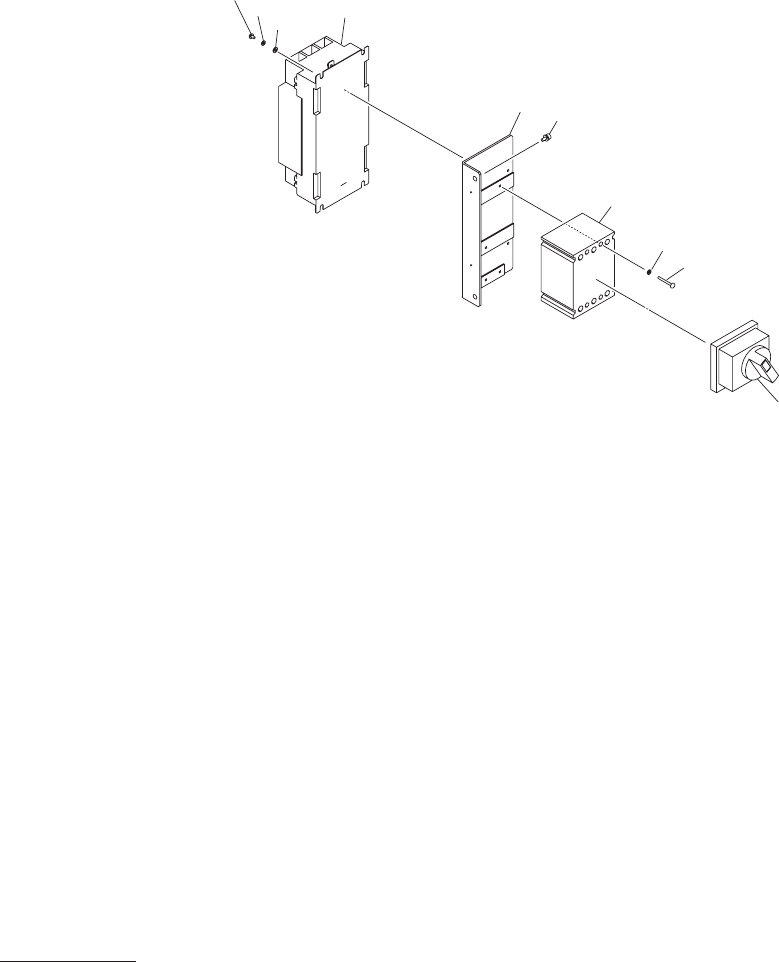

Fig. BE-1
一次電源
Main Power Supply
73
76
77
53
51
71
70
72
56
76
75
57
.
.
MODEL GXH-1S
1012-003
185
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
51 6301337180 BRACKET 1 803BE-210-051 211F9346
53 6301187839 FILTER,NOISE 1 Z01 803BE-210-153 4F300073
56
6300863857 BREAKER 1 Q200 803BE-210-151 4S230067
57
6300835441 HANDLE 1 803BE-210-152 226C0141
70
6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
71
4111416705 WASHER SPR 5 2 SW5 221H0287
72
4111414107 WASHER V 5X10X1 2 FW5 221H0318
73
4111131400 SCR PAN 4X6 4 M4X6 PAN 221E0509
75
4111132407 SCR PAN 4X30 2 M4X30 PAN 221E0570
76
4110081706 WASHER SPR 4 6 SW4 F 221H0283
77
4111192104 WASHER V 4X9X0.8 4 FW4 F 221H0314
BE-1
