MEMO
MODEL GXH-1S
1012-003
185
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
51 6301337180 BRACKET 1 803BE-210-051 211F9346
53 6301187839 FILTER,NOISE 1 Z01 803BE-210-153 4F300073
56
6300863857 BREAKER 1 Q200 803BE-210-151 4S230067
57
6300835441 HANDLE 1 803BE-210-152 226C0141
70
6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
71
4111416705 WASHER SPR 5 2 SW5 221H0287
72
4111414107 WASHER V 5X10X1 2 FW5 221H0318
73
4111131400 SCR PAN 4X6 4 M4X6 PAN 221E0509
75
4111132407 SCR PAN 4X30 2 M4X30 PAN 221E0570
76
4110081706 WASHER SPR 4 6 SW4 F 221H0283
77
4111192104 WASHER V 4X9X0.8 4 FW4 F 221H0314
BE-1
MEMO
MODEL GXH-1S
0602-001
187

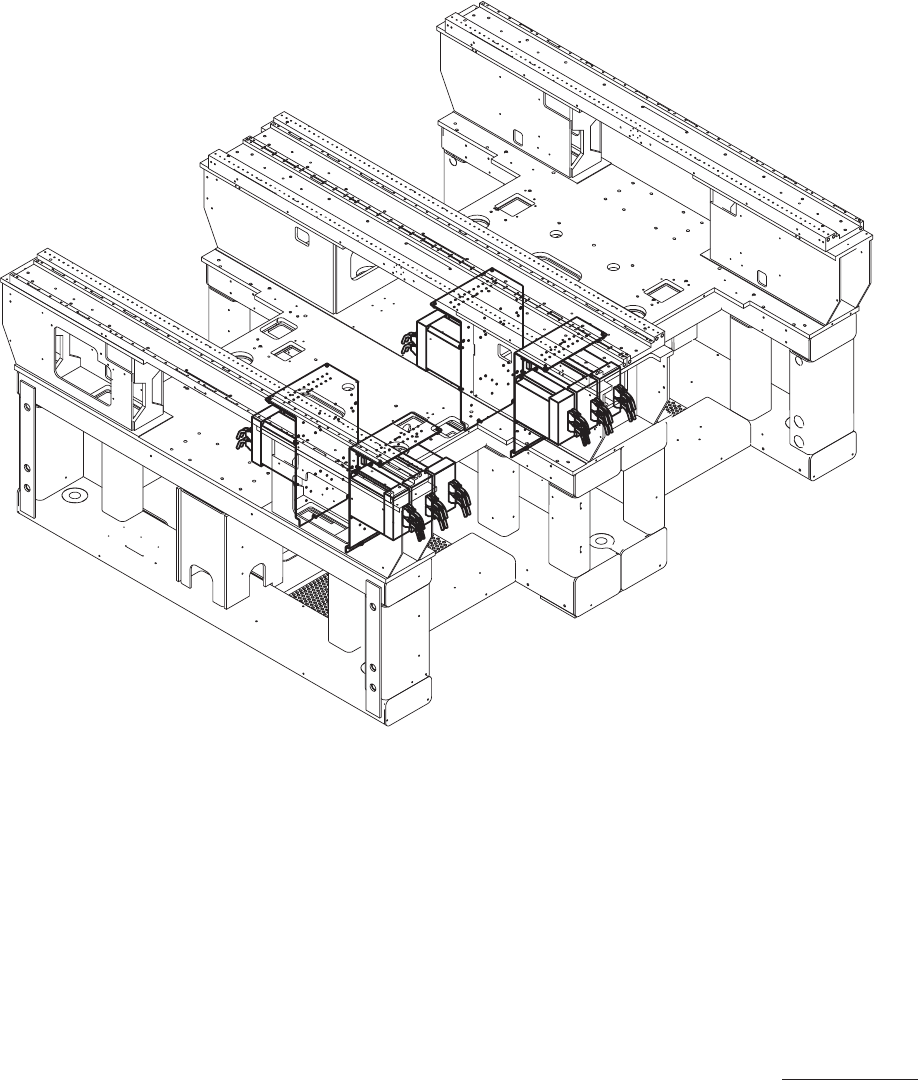

Fig. BF
架台下
XY
サーボ部
UNDERFRAME
XY SERVO SECTION
