MODEL GXH-1S 0602-001 196 架台下リレー部 UNDERFRAME RERA Y SECTION Fig. BH-1 DC 電源、リレー１ DC Power Supply ,Relay 1 60 74 55 73 76 77 62 67 64 63 75 61 56 57 79 71 78 . 51 81 72 80 . 52 57
MODEL GXH-1S
0602-001
195

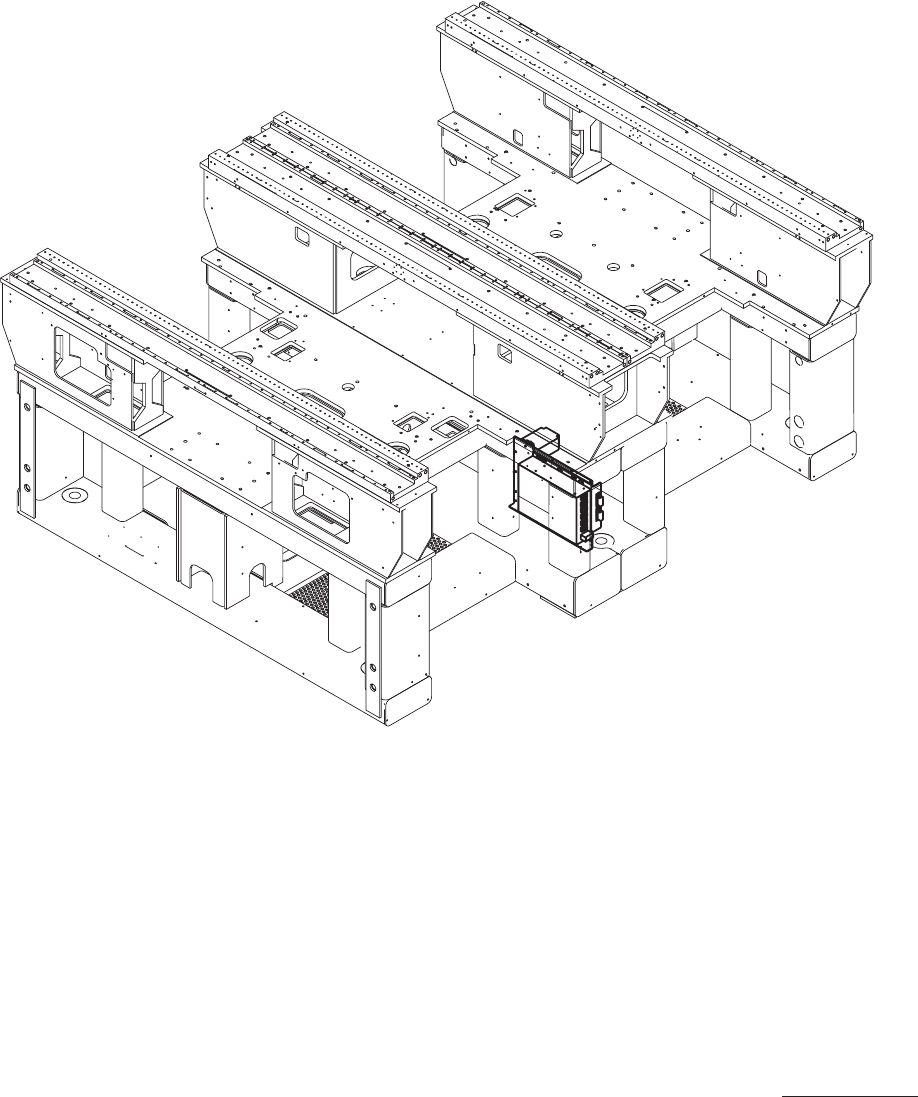

Fig. BH
架台下リレー部
UNDERFRAME RERAY SECTION
MODEL GXH-1S
0602-001
196
架台下リレー部
UNDERFRAME RERAY SECTION

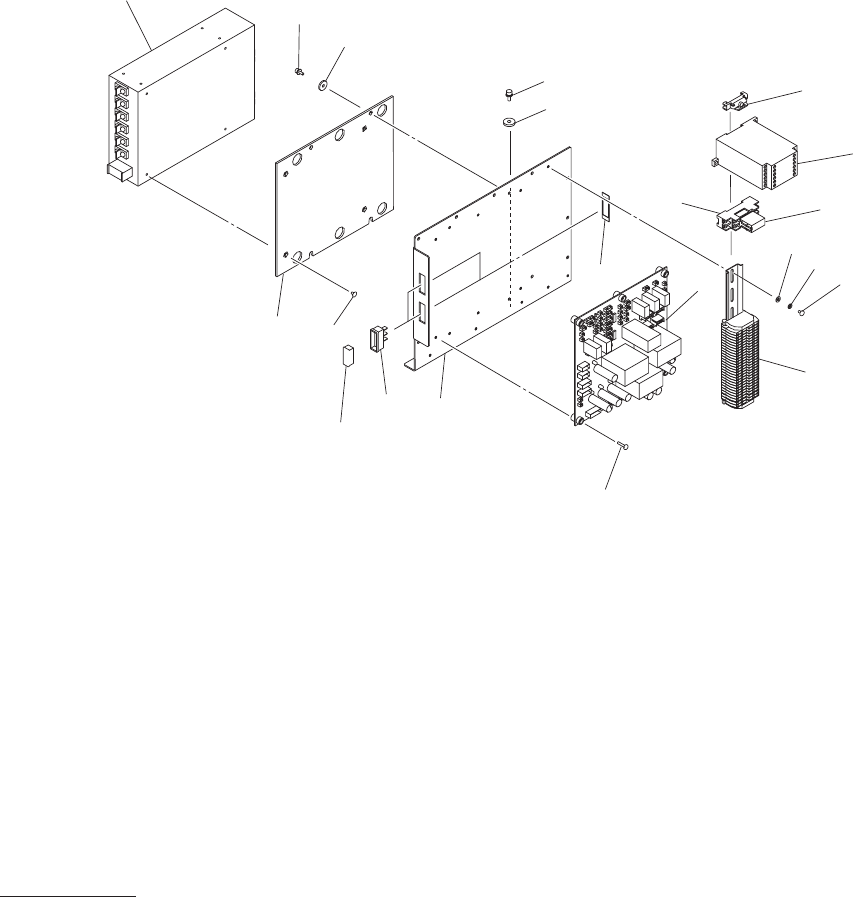

Fig. BH-1 DC
電源、リレー１
DC Power Supply,Relay 1
60
74
55
73
76
77
62
67
64
63
75
61
56
57
79
71
78
.
51
81
72 80
.
52
57
MODEL GXH-1S
1012-003
197
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BH-1
51 6301270678 BRACKET 1 803BH-210-051 211F8381
52 6301270746 BRACKET 1 803BH-210-052 211F8386
55
6301268255 TERMINAL 1 803BH-210-155 4J320184
56
6301231303 FUSE,SPECIAL 2 F031,F032 803BH-210-156 4S300006
57
6301231310 FUSE HOLDER 2 803BH-210-157 4J200032
60
6301242514 P.C.B,MOUNT 1 U26 803BH-210-060 4B11
1465
61 6301241593 UNIT,POWER 1 G01 803BH-210-151 4U200254
62
6300952704 RELAY 1 K3 803BH-210-152 4S200121
63
6300635430 SOCKET 1 803BH-210-163 4J120099
64
6300001051 BRACKET,WIRING 1 803BH-210-164 23N10004
67
6300635423 RELAY 1 K51 803BH-210-162 4S200086
71
6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
72
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
73
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
74
4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
75
4111407208 SCR FLT 4X6 4 M4X6 FLT 221D0224
76 4110081706 WASHER SPR 4 2 SW4 F 221H0283
77
4111192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
78
4111412905 WASHER SPR 4 4 SW4 221H0287
79
6300010213 WASHER 4 BW4 221H0004
80
4111416705 WASHER SPR 5 2 SW5 221H0287
81
6300010220 WASHER 2 BW5 221H0005
