P-254-007 - 第219页
MODEL GXH-1S 1012-003 217 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BN-2 151 6301340012 BREAKER 1 -Q201 803BN-210-151 4S230093 152 6301340029 EM-CONT ACTOR 1 -K33 803BN-210-152 4S2101 17 153 6301241586 CO…
MODEL GXH-1S
0701-002
216
162
171
.
.
180
181
181
.
180
181
.
180
182
182
185
184
183
153
152
168
165
173
170
172
161
160
170
159
158
167
166
157
170
170
170
151
167
163
164
182
185
184
183
185
184
183
架台下
XY
サーボ電源部

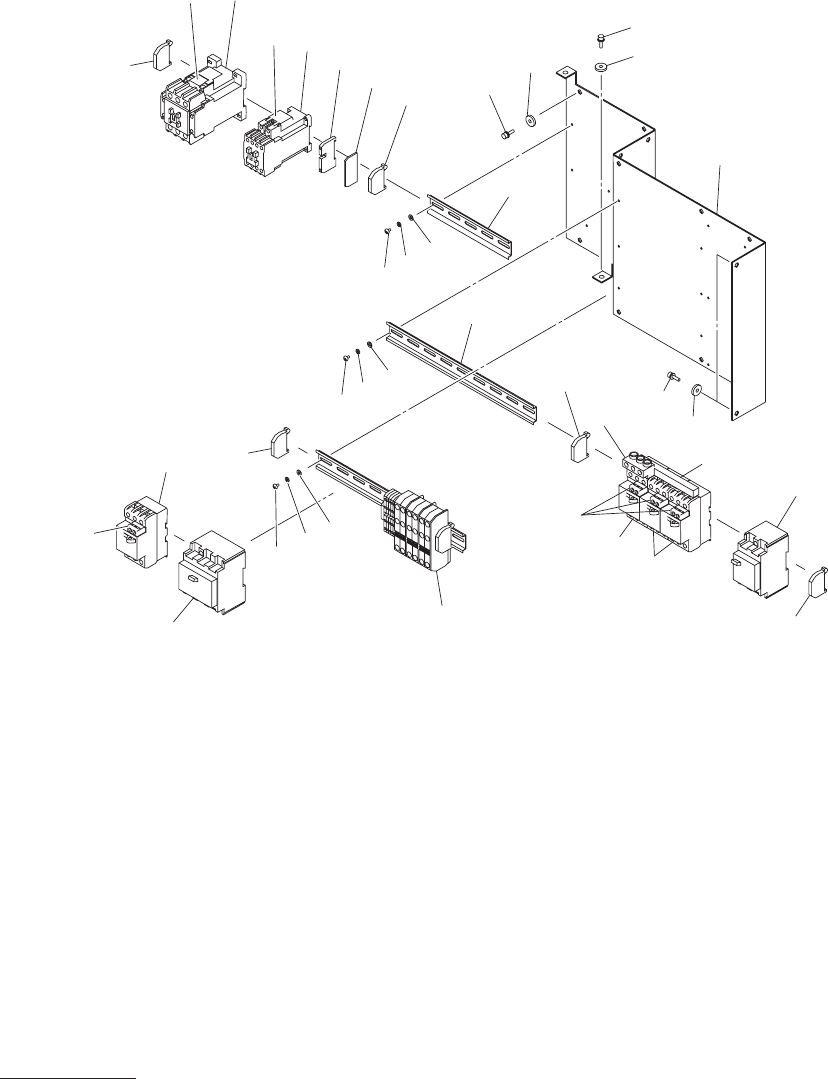

B UNDERFRAME XY SERVO
POWER SUPPLY SECTION B
Fig. BN-2 200V
電源２
200V Power Supply 2
MODEL GXH-1S
1012-003
217
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BN-2
151 6301340012 BREAKER 1 -Q201 803BN-210-151 4S230093
152 6301340029 EM-CONTACTOR 1 -K33 803BN-210-152 4S210117
153 6301241586 COMP,CR 1 803BN-210-153 4F400025
157
6301705309 CIRCUIT PROTECTOR 1 -Q221 803BN-210-157 4S250388
158
6301340074 ACCESSORY,WIRING 1 803BN-210-158 23N30652
159
6301340081 ACCESSORY,WIRING 1 803BN-210-159 23N30653
160
6301340005 RAIL,WIRING 1 803BN-210-160 23N00101
161
6300911725 ACCESSORY,WIRING 1 803BN-210-161 23N30499
162
6301406237 TERMINAL 1 803BN-210-162 4J320243
163
6301340036 CIRCUIT PROTECTOR 1 -Q205 803BN-210-163 4S250321
164
6301340159 BREAKER 1 -Q206 803BN-210-164 4S230094
165
6301340166 EM-CONTACTOR 1 -K29 803BN-210-165 4S210118
166 6301705316 CIRCUIT PROTECTOR 2 -Q222,-Q223
803BN-210-166 4S250389
167
6301340067 ACCESSORY,WIRING 4 803BN-210-167 23N30651
168
6300769166 COMP,CR 1 803BN-210-168 4F400008
170
6300911749 BRACKET,WIRING 6 803BN-210-170 23N10027
171
6301434292 BRACKET 1 803BN-210-051 211FA538
172 6301268712 TERMINAL 1 803BN-210-172 4J320186
173
6301339993 ACCESSORY,WIRING 1 803BN-210-173 23N30650
180
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
181
4111416705 WASHER SPR 5 4 SW5 221H0287
182
6300010220 WASHER 4 BW5 221H0005
183
4111131400 SCR PAN 4X6 8 M4X6 PAN 221E0509
184
4110081706 WASHER SPR 4 8 SW4 F 221H0283
185
4111192104 WASHER V 4X9X0.8 8 FW4 F 221H0314
MEMO
