P-254-007 - 第232页
MODEL GXH-1S 0602-001 230 電装ボックス R ELECTRICAL BOX R Fig. BR-3 リレー２、 I/O ボード Relay 2,I/O Board 281 276 . 271 . 283 252 See Fig.BR-1 Key No.55 282 277 . 272 . 284 285 266 261 260 262 274 273 273
MODEL GXH-1S
1012-004
229
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
55 6301326337 BRACKET 1 803BR-210-055 211F9153
56 6301295480 BRACKET 2 803BR-210-056 211F8718
57
6301243405 BRACKET(BRACKET) 1 803BR-210-057 211F8070
58
6301326375 BRACKET 1 803BR-210-058 211F9155
70
6301405506 MOTOR,DC 1 M118 803BR-210-170 4M130026
71 6301399805 ACCESSORY,MOT-M 2 803BR-210-171 23M00062
79
6301405490 MOTOR,DC 2 M116,M117 803BR-210-179
4M130025
80 6301399799 ACCESSORY,MOT-M 4 803BR-210-180 23M00061
81
6300007749 BOLT,HEX-SCT 10 M5X10 221A0029
82
6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
83
4111410307 NUT HEX 4 12 M4 221F0104
84
4111132506 SCR PAN 4X40 12 M4X40 PAN 221E0508
86
4111416705 WASHER SPR 5 10 SW5 221H0287
87
4111413001 WASHER SPR 6 4 SW6 221H0289
88
4111414008 WASHER V 4X9X0.8 24 FW4 221H0318
89
4111414107 WASHER V 5X10X1 10 FW5 221H0320
90
6300010237 WASHER 4 BW6 221H0006
BR-1
MODEL GXH-1S
0602-001
230
電装ボックス
R ELECTRICAL BOX R

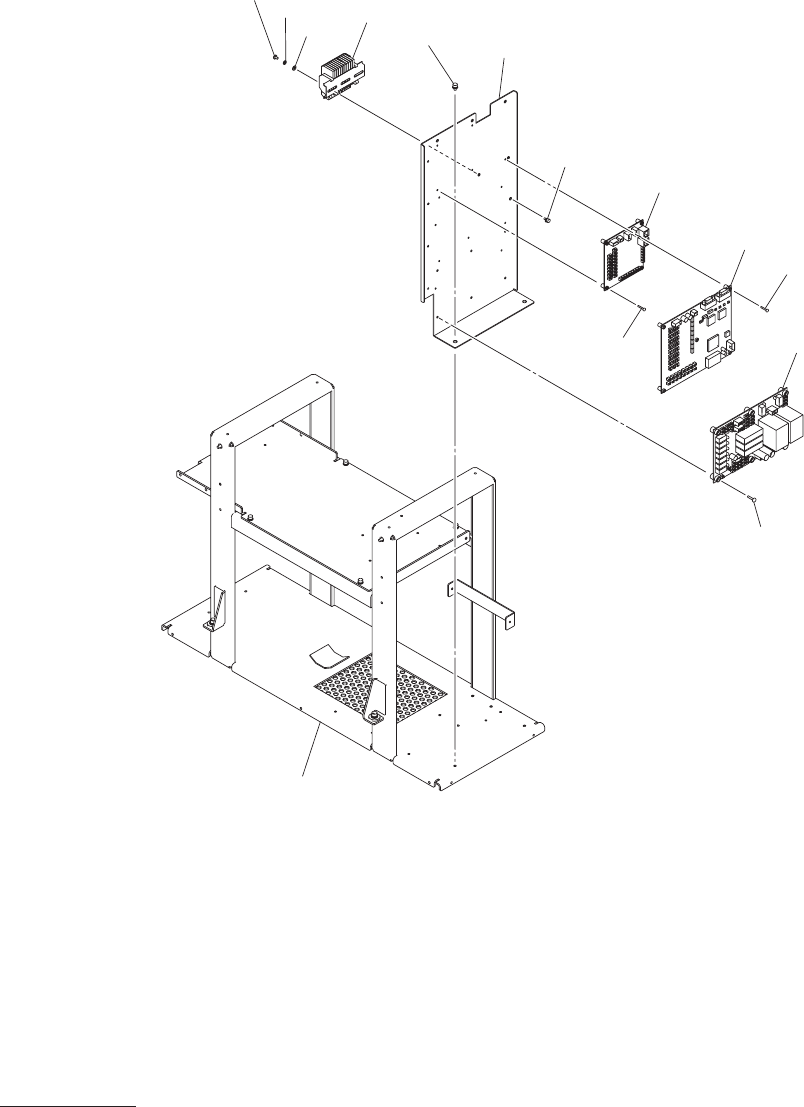

Fig. BR-3
リレー２、
I/O
ボード
Relay 2,I/O Board
281
276
.
271
.
283
252
See Fig.BR-1
Key No.55
282
277
.
272
.
284
285
266
261
260
262
274
273
273
MODEL GXH-1S
1012-003
231
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
252 6301326344 BRACKET 1 803BR-210-052 211F9154
260 6301235707 P.C.B,MOUNT 1 -U05 803BR-210-060 4B11
1448
261 6301376103 P.C.B,MOUNT 1 -U12 803BR-210-061 4B11
1516
262 6301242521 P.C.B,MOUNT 1 -U27 803BR-210-062 4B11
1466
266 6301328096 TERMINAL 1 803BR-210-176 4J320218
271
6300007619 BOLT,HEX-SCT 1 M4X8 221A0016
272
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
273
4111130700 SCR PAN 3X16 8 M3X16 PAN 221E0491
274
4111132209 SCR PAN 4X16 6 M4X16 PAN 221E0503
276
4111412905 WASHER SPR 4 1 SW4 221H0284
277
4111416705 WASHER SPR 5 2 SW5 221H0287
281
4111414008 WASHER V 4X9X0.8 1 FW4 221H0315
282
4111414107 WASHER V 5X10X1 2 FW5 221H0318
283
4111131400 SCR PAN 4X6 2 M4X6 PAN 221E0509
284
4110081706 WASHER SPR 4 2 SW4 F 221H0283
285
4111192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
BR-3
