MODEL GXH-1S 1012-003 241 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 154 6301270715 BRACKET 1 803D--210-054 21 1F8385 155 6301270777 BRACKET 1 803D--210-055 21 1F8387 156 6301327174 BRACKET 1 803D--210-056…
MODEL GXH-1S
0602-001
240
部品認識部
RECOGNITION SECTION

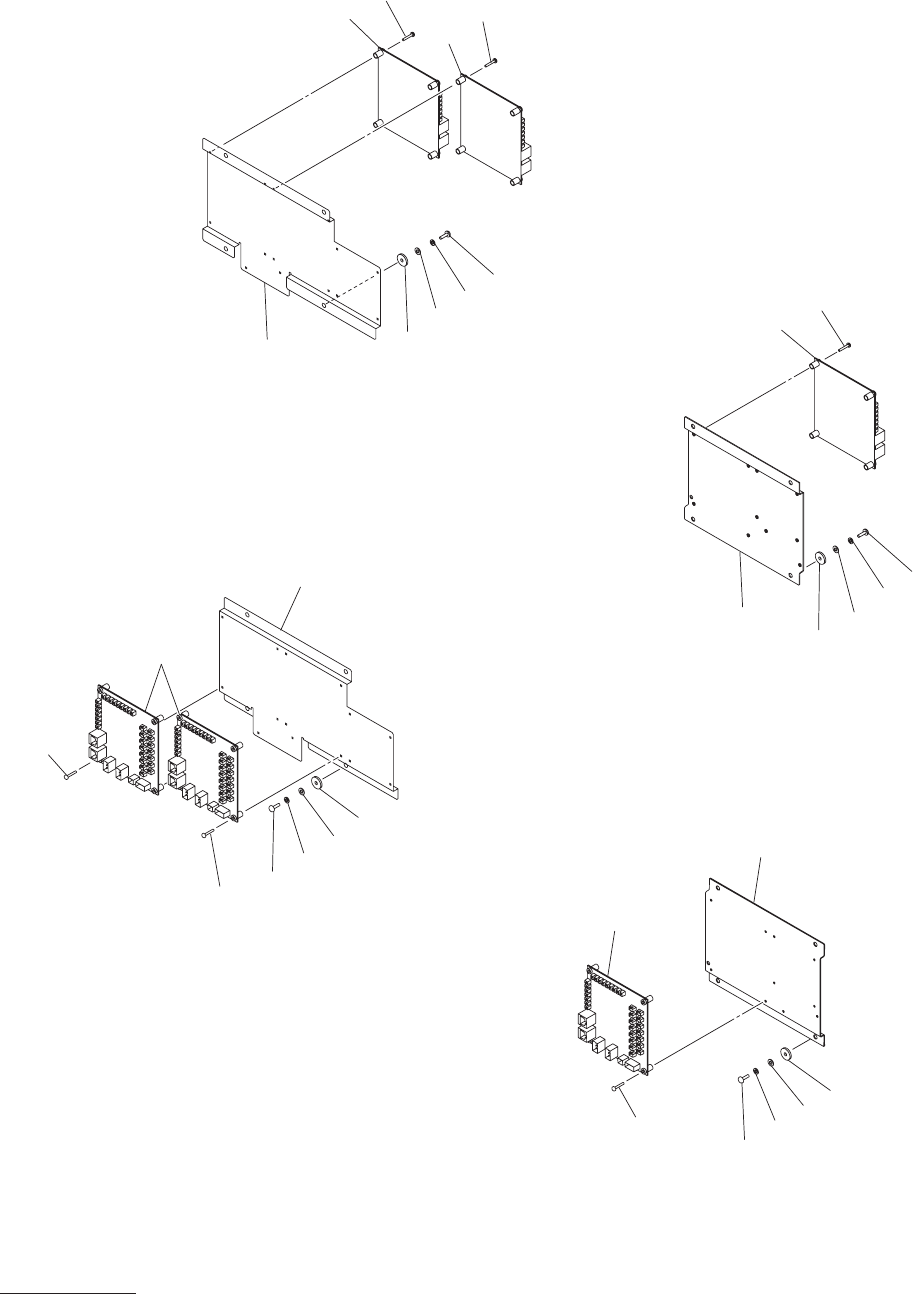

Fig. D-2 I/O
ボード
L/R I/O Board L/R
174
177
187
188
172
161
156
174
177
187
188
172
161
155
172
188
187
177
174
188
187
177
174
172
161
157
154
172
161
172
161
MODEL GXH-1S
1012-003
241
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
154 6301270715 BRACKET 1 803D--210-054 211F8385
155 6301270777 BRACKET 1 803D--210-055 211F8387
156
6301327174 BRACKET 1 803D--210-056 211F9178
157
6301318905 BRACKET 1 803D--210-057 211F9038
161
6301376103 P.C.B,MOUNT 6 -U08,-U09 803D--210-061 4B11
1516
172 4111130700 SCR PAN 3X16 24 M3X16 PAN 221E0491
174
4110030001 SCR PAN 4X12 16 M4X12 PAN 221E0501
177
4110081706 WASHER SPR 4 16 SW4 F 221H0283
187
4111192104 WASHER V 4X9X0.8 16 FW4 F 221H0314
188
6300010213 WASHER 16 BW4 221H0004
D-2
MODEL GXH-1S
0602-001
242
部品認識部
RECOGNITION SECTION
Fig. D-3
照明ユニット
Lighting Unit
283
282
.
281
.
201
251
276
255
202
