P-254-007 - 第32页

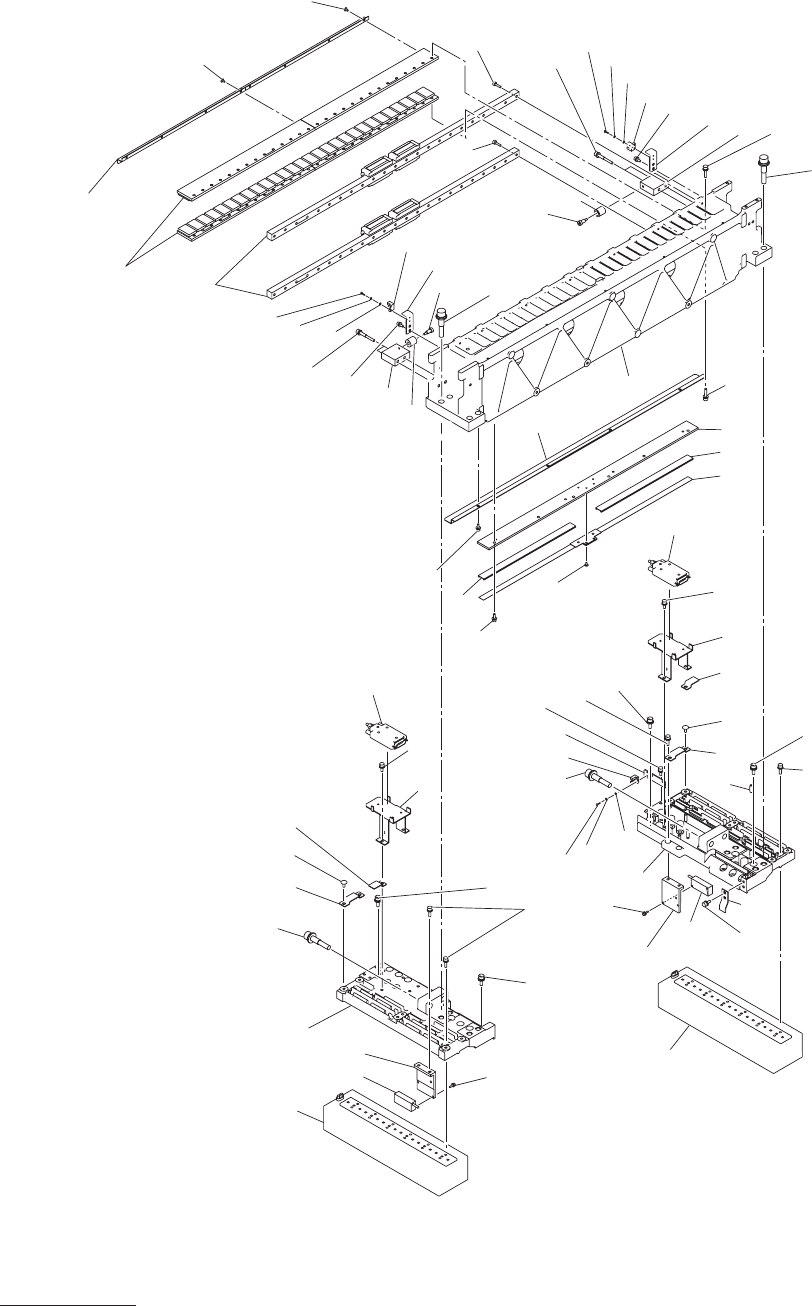

MODEL GXH-1S 0804-004 30 ビーム部 BEAM SECTION Fig. C-5 X 軸部 B,C X Axis Section B,C 413 415 468 414 445 417 445 409 444 408 406 481 471 466 445 444 407 405 414 468 415 413 461 . 476 . 486 451 . 472 . 482 460 . 475 . 485 456 …
MEMO
MODEL GXH-1S
0804-004
30
ビーム部
BEAM SECTION
Fig. C-5 X
軸部
B,C X Axis Section B,C
413
415
468
414
445
417
445
409
444
408
406
481
471
466
445
444
407
405
414
468
415
413
461
.
476
.
486
451
.
472
.
482
460
.
475
.
485
456
.
474
.
484
460
.
475
.
485
451
.
472
.
482
461
.
476
.
486
456
.
474
.
484
460
.
475
.
485
455
.
474
.
484
455
.
474
.
484
460
.
475
.
485
456
.
474
.
484
460
.
475
.
485
455
.
474
.
484
466
466
481
481
471
471
402
402
432
432
427
427
430
430
431
428
457
.
474
.
484
461
.
476
.
486
459
461
.
476
.
486
452
.
473
.
483
459
431
467
467
434
422
421
454
452
.
473
.
483
433
425
467
424
429
452
.
473
.
483
425
453
.
473
.
483
457
.
474
.
484
454
410
402
445
MODEL GXH-1S
1012-006
31
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
402 6300805369 SENSOR,PHOTO 6 -B2101,-B2102
803C--210-102 23G10059
405
6301487205 PLATE 2 803C--210-105 211DB946
406
6301487212 PLATE 2 803C--210-106 211DB947
407
6301267609 BRACKET 2 803C--210-107 211F8345
408
6301267616 BRACKET 2 803C--210-108 211F8346
409
6301233444 PLATE 2 803C--210-109 211D9263
410
6301233451 BRACKET 2 803C--210-110 211F7960
413 6301515823 BRACKET 4 803C--210-113 211FB498
414 6301234083 BRACKET 4 803C--210-114 211F7978
415 6301234090 BRACKET 4 803C--210-115 211F7979
417 6301263533 PIN,LOCATE 2 803C--210-117 216E1478
421
6301239293 GUIDE,LINEAR 2 803C--210-201 222L0674
422
6301446943 MOTOR,AC-SERVO 4 803C--210-202 4M150237
424
6301239804 ENCODER(LIDA407 TAPESET) 2 803C--210-204 23G40019
425 6301239828
MECH PARTS(LIDA407 HOLDE) 4 803C--210-205 226J1869
427 630124041
1 BOLT 4 803C--210-207 221E0287
428
6301254784 FRAME 2 803C--210-208 210B3600
429
6301233581 PLATE 2 803C--210-209 211D9268
430
6301400006 BLOCK 4 803C--210-210 211G4298
431
6301233680 ROD 4 803C--210-211 216C0697
432
6301233604 BRACKET 4 803C--210-212 211F7962
433
6301254807 BRACKET 2 803C--210-213 211F8180
434
6301243511 COVER 4 803C--210-214 211A8501
444
6301541983 MOTOR,AC-SERVO 4 -M22,-M23 803C--210-004 4M150240
445
6301536156 ENCODER(LIDA49M HEAD) 4 -U22,-U23 803C--210-005 23G40028
446
6301525457 COVER 4 803C--210-501 211AB488
451
6300007527 BOLT,HEX-SCT 8 M3X10 221A0007
452
6300007626 BOLT,HEX-SCT 16 M4X10 221A0017
453
6300007633 BOLT,HEX-SCT 12 M4X12 221A0018
454
6300007640 BOLT,HEX-SCT 60 M4X14 221A0019
455
6300007756 BOLT,HEX-SCT 12 M5X12 221A0030
456
6300007763 BOLT,HEX-SCT 56 M5X16 221A0031
457
6300007770 BOLT,HEX-SCT 112 M5X20 221A0032
459
6300007930 BOLT,HEX-SCT 8 M6X40 221A0048
460
6300007886 BOLT,HEX-SCT 52 M6X16 221A0043
461
6300008166 BOLT,HEX-SCT 24 M10X50 221A0071
466
4111406300 SCR PAN 2X8 12 M2X8 PAN 221E0484
467
4110505004 SCR TRS 3X6 36 M3X6 TRS 221E0529
468
4111139109 SCR TRS 5X10 8 M5X10 TRS 221E0534
471
4111412608 WASHER SPR 2 12 SW2 221H0277
472
4111412806 WASHER SPR 3 8 SW3 221H0281
473
4111412905 WASHER SPR 4 28 SW4 221H0284
474
4111416705 WASHER SPR 5 180 SW5 221H0287
475
4111413001 WASHER SPR 6 52 SW6 221H0289
476
4111413209 WASHER SPR 10 24 SW10 221H0293
481
4111415500 WASHER F 2X4.3X0.3 12 FWS2 221H0334
482
4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
483
4111414008 WASHER V 4X9X0.8 28 FW4 221H0315
484
4111414107 WASHER V 5X10X1 180 FW5 221H0318
C-5
