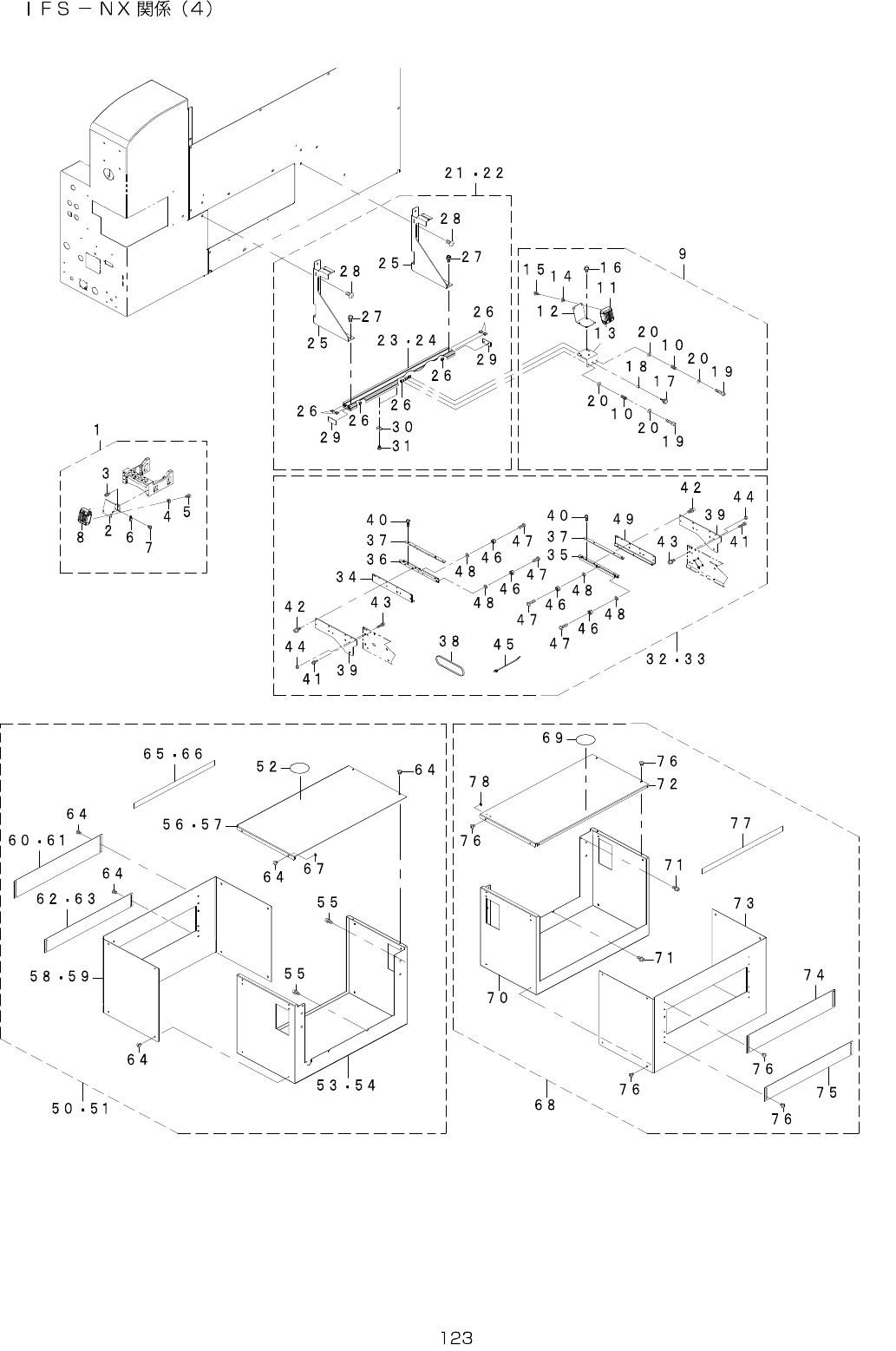

62.IFS-NXCOMPONENTS(4)
- -

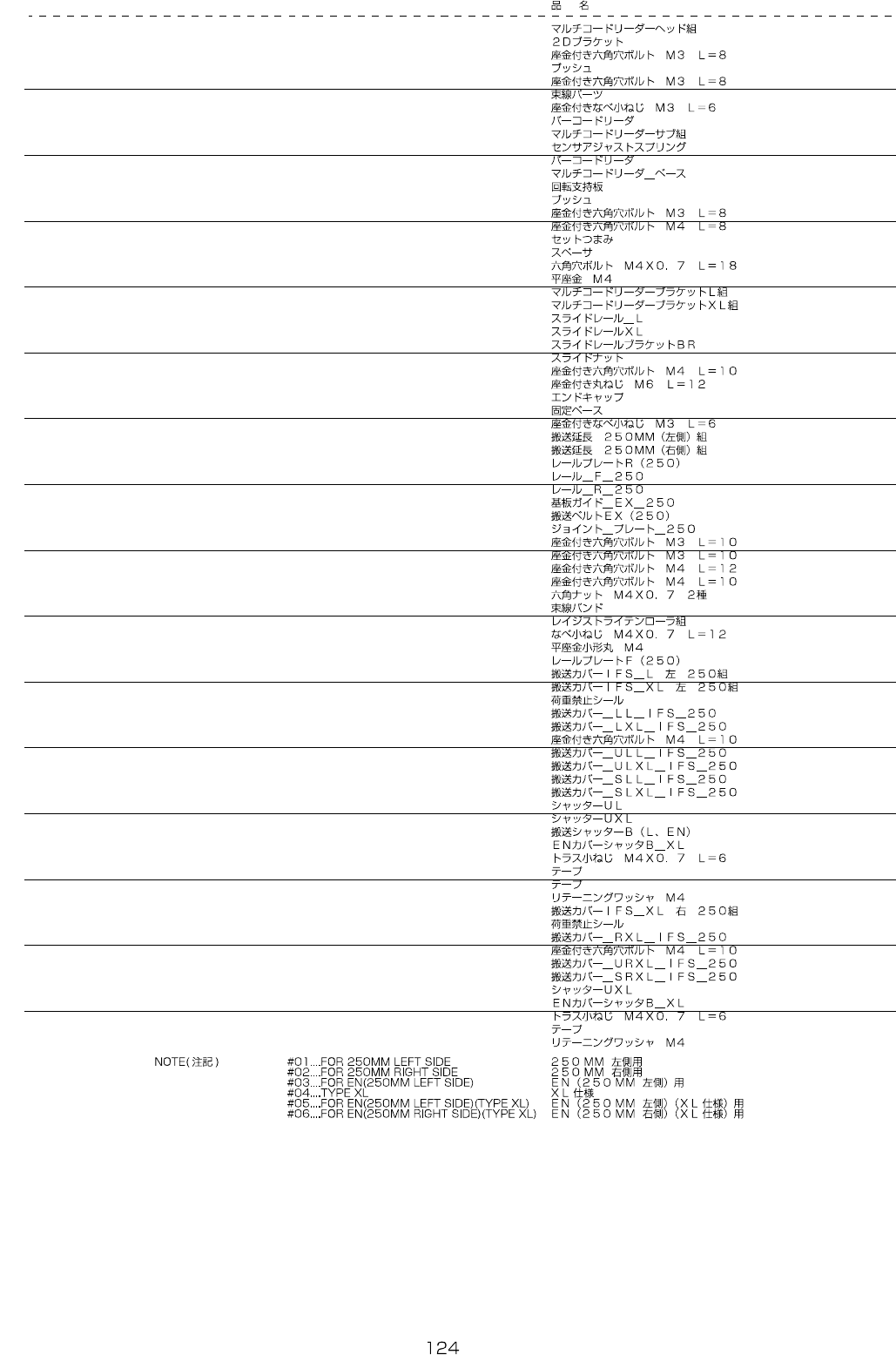

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-40787 MULTI_CODE_READER_HEAD_ASM 1
2 401-40784 2D_BRACKET (1)
3 SL-6030892-TN SCREWM3L=8 (2)
4 401-40785 BUSH (2)
5 SL-6030892-TN SCREWM3L=8 (2)
6 HX-0034400-00 FIXEDBASE (1)
7 SL-4030691-SC SCREWM3L=6 (1)
8 401-39312 BARCODEREADER (1)
9 401-40780 MULTI_CODE_READER_SUB_ASM 1
10 400-00912 SENSOR_ADJUST_SPRING (2)
11 401-39312 BARCODEREADER (1)
12 401-40930 MCR_BASE (1)
13 400-28300 ROTARYSUPPORTPLATE (1)
14 401-40785 BUSH (2)
15 SL-6030892-TN SCREWM3L=8 (4)
16 SL-6040892-TN SCREWM4L=8 (2)
17 G6518-880-000 SETPICK-UP (1)
18 400-58815 SPACER (1)
19 SM-6041802-TN SCREWM4X0.7L=18 (2)
20 WP-0430801-SC WASHERM4 (4)
21 401-40781 MULTI_CODE_READER_BR_L_ASM 1
22
#04
401-40782 MULTI_CODE_READER_BR_XL_ASM 1
23 401-11851 SLIDE_RAIL_L (1)
24
#04
400-99108 SLIDE_RAIL_XL (1)
25 401-43586 SLIDE_RAIL_BR (2)
26 400-28302 SLIDENUT (9)
27 SL-6041092-TN SCREWM4L=10 (4)
28 SL-3061232-TN SCREW (4)
29 400-28301 ENDCAP (2)
30 HX00294000 FIXEDBASE (2)
31 SL-4030691-SC SCREWM3L=6 (2)
32
#01
401-38194 CONVEYOR_EXTENSION_250_ASM_L 1
33
#02
401-38195 CONVEYOR_EXTENSION_250_ASM_R 1
34 400-11061 RAILPLATER(250) (1)
35 401-38188 RAIL_F_250 (1)
36 401-38189 RAIL_R_250 (1)
37 401-38190 PWB_GUIDE_EX_250 (2)
38 400-11065 CONVEYORBELTEX(250) (2)
39 401-40931 JOINT_PLATE_250 (1)
40 SL-6031092-TN SCREWM3L=10 (8)
41 SL-6031092-TN SCREWM3L=10 (4)
42 SL-6041292-TN SCREWM4L=12 (6)
43 SL-6041092-TN SCREWM4L=10 (12)
44 NM-6040002-SN NUTM4X0.7TYPE2 (12)
45 HX-0044000-00 CABLEBAND (5)
46 401-38303 RESIST_LIGHTEN_ROLLER_ASM (4)
47 SM-4041201-SC SCREWM4X0.7L=12 (4)
48 WP-0430800-SC WASHERM4 (4)
49 400-11060 RAILPLATEF(250) (1)
50
#03
401-40763 CONVEYOR_COVER_IFS_L_L_250_ASM 1
51
#05
401-40778 CONVEYOR_COVER_IFS_XL_L_250_ASM 1
52 E5721-729-000 LABEL (1)
53
#03
401-40767 CONVEYOR_COVER_LL_IFS_250 (1)
54
#05
401-40773 CONVEYOR_COVER_LXL_IFS_250 (1)
55 SL-6041092-TN SCREWM4L=10 (4)
56
#03
401-40768 CONVEYOR_COVER_ULL_IFS_250 (1)
57
#05
401-40797 CONVEYOR_COVER_ULXL_IFS_250 (1)
58
#03
401-40769 CONVEYOR_COVER_SLL_IFS_250 (1)
59
#05
401-40774 CONVEYOR_COVER_SLXL_IFS_250 (1)
60
#03
401-36907 SHUTTER_UL (1)
61
#05
401-36913 SHUTTER_UXL (1)
62
#03
400-01485 CONVEYORSHUTTERB(LEN) (1)
63
#05
400-92187 EN_COVER_SHUTTER_B_XL (1)
64 SM-0040601-SC SCREWM4X0.7L=6 (20)
65
#03
400-01490 TAPE (1.664)
66
#05
400-01490 TAPE (2.448)
67 400-98346 RETAININGWASHERM4 (2)
68
#06
401-40779 CONVEYOR_COVER_IFS_XL_R_250_ASM 1
69 E5721-729-000 LABEL (1)
70 401-40798 CONVEYOR_COVER_RXL_IFS_250 (1)
71 SL-6041092-TN SCREWM4L=10 (4)
72 401-40799 CONVEYOR_COVER_URXL_IFS_250 (1)
73 401-40800 CONVEYOR_COVER_SRXL_IFS_250 (1)
74 401-36913 SHUTTER_UXL (1)
75 400-92187 EN_COVER_SHUTTER_B_XL (1)
76 SM-0040601-SC SCREWM4X0.7L=6 (20)
77 400-01490 TAPE (2.448)
78 400-98346 RETAININGWASHERM4 (2)
- -
