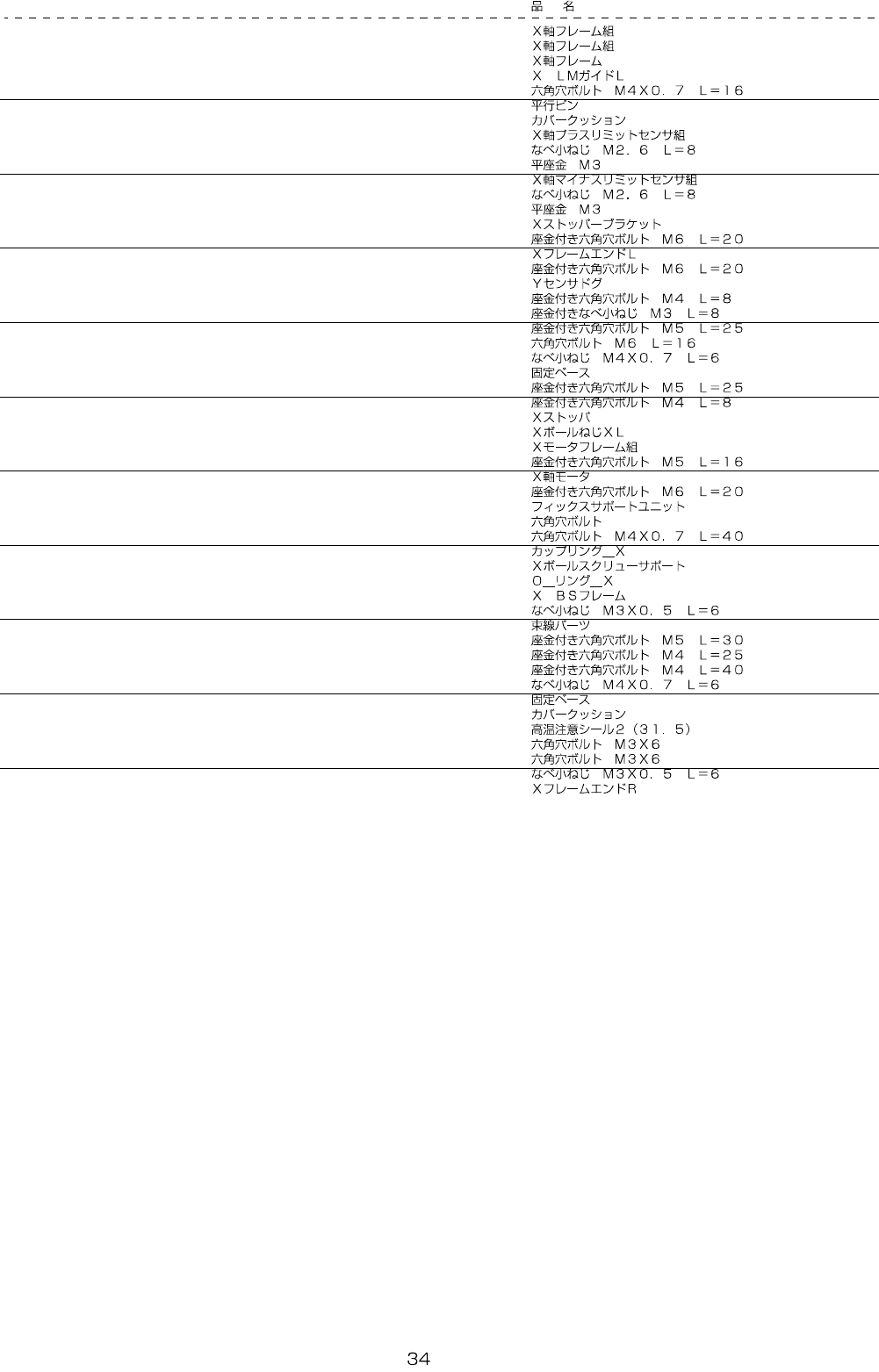

- - 18. X-YCO MPONENTS(2)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-37048 X_AXIS_FRAME_ASM 1

2 401-13992 XAXISFRAMEASM

1

3 401-36745 X_AXIS_FRAME (1)

4 400-71325 XLMGUIDEL (2)

5 SM-6041602-TN SCREWM4X16 (34)

6 PH-0300082-C0 PIN 2

7 400-49671 COVERCUSHION 2

8 401-37095 XPLUSLMTSENSORASSY 1

9 SM-4860801-SC SCREWM2.6L=8 (1)

10 WP-0320501-SC WASHERM3 (1)

11 401-37096 XMINUSLMTSENSORASSY 1

12 SM-4860801-SC SCREWM2.6L=8 (2)

13 WP-0320501-SC WASHERM3 (2)

14 401-36754 X_STOPPER_BR 1

15 SL-6062092-TN SCREWM6L=20 4

16 401-06020 XFRAMEENDL 1

17 SL-6062092-TN SCREWM6L=20 4

18 401-10215 YSENSORDOG 1

19 SL-6040892-TN SCREWM4L=8 2

20 SL-4030891-SC SCREWM3L=8 1

21 SL-6052592-TN SCREWM5L=25 2

22 SM-6061602-TN SCREWM6L=16 4

23 SM-4040601-SC SCREWM4X0.7L=6 14

24 HX-0029400-00 FIXEDBASE 14

25 SL-6052592-TN SCREWM5L=25 16

26 SL-6040892-TN SCREWM4L=8 4

27 401-10222 X_STOPPER 1

28 400-98047 XBALLSCREWXL 1

29 401-13985 XMOTORFRAMEASM 1

30 SL-6051692-TN SCREWM5L=16 4

31 401-29653 XAXISMOTOR 1

32 SL-6062042-TN SCREWM6L=20 4

33 400-93855 FIXEDSUPPORTUNIT 1

34 SM-6052002-TN SCREW 4

35 SM-6044002-TN SCREWM4X0.7L=40 2

36 401-47719 COUPLING_X 1

37 400-93863 XBALLSCREWSUPPORT 1

38 400-93864 O_RING_X 1

39 401-10217 XBSFRAME 1

40 SM-4030601-SC SCREWM3X0.5L=6 3

41 HX-0034400-00 FIXEDBASE 2

42 SL-6053092-TN SCREWM5L=30 2

43 SL-6042592-TN SCREWM4L=25 2

44 SL-6044092-TN SCREWM4L=40 2

45 SM-4040601-SC SCREWM4X0.7L=6 9

46 HX-0029400-00 FIXEDBASE 7

47 400-49671 COVERCUSHION 3

48 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

49 SM-6030602-TN SCREWM3X6 2

50 SM-6030602-TN SCREWM3X6 2

51 SM-4030601-SC SCREWM3X6 2

52 401-06022 XFRAMEENDR 1

- -

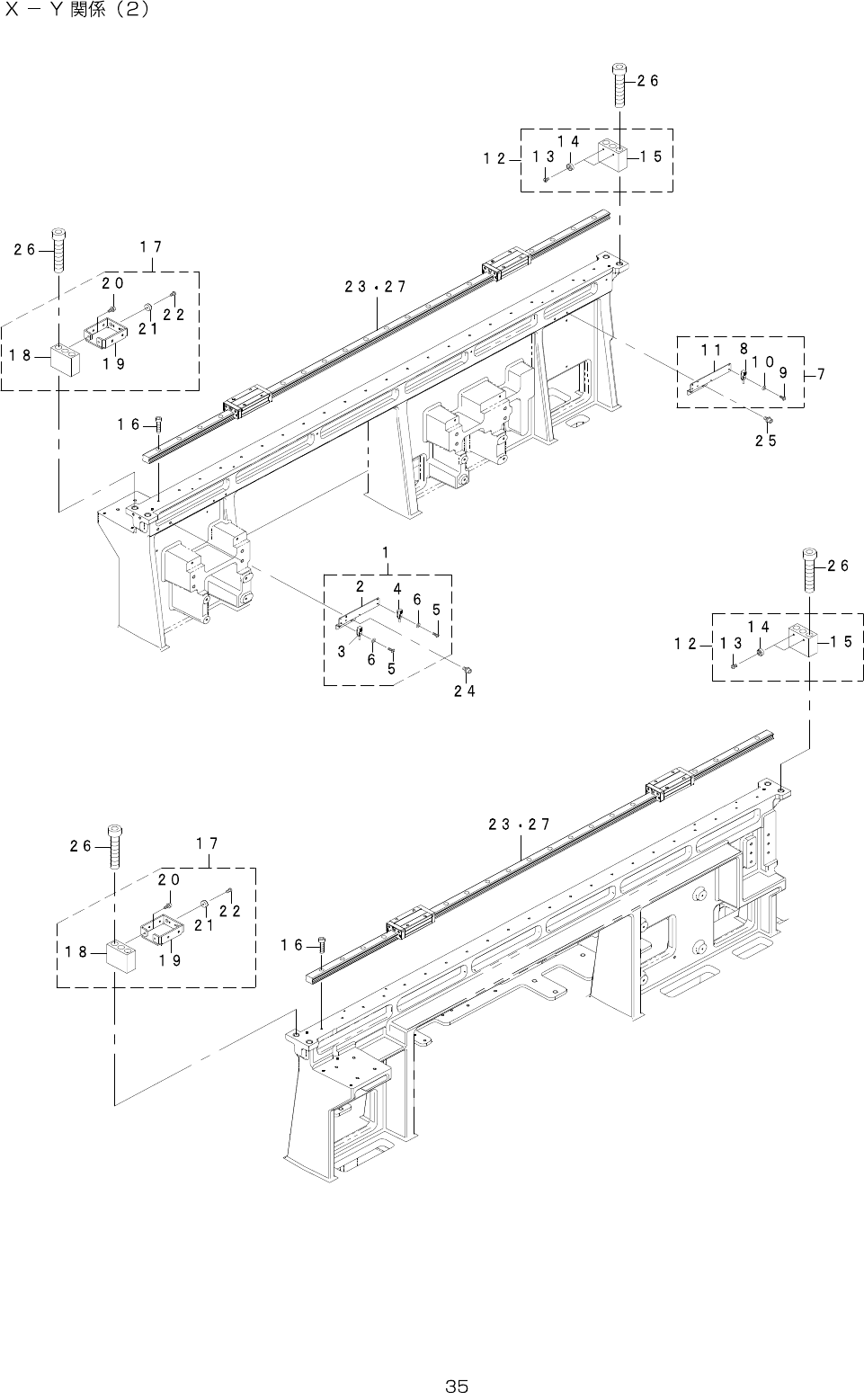

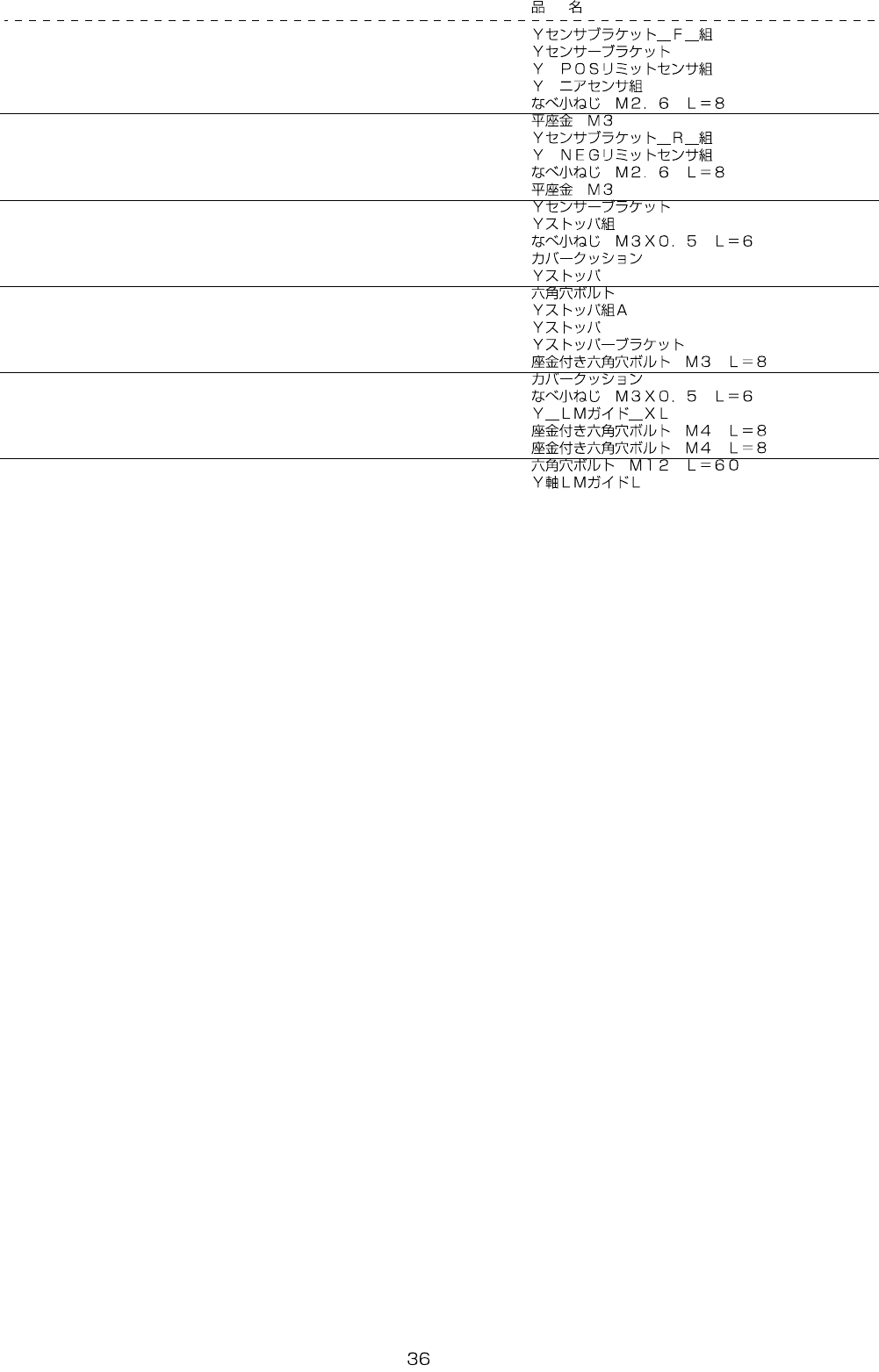

18.X-YCOMPONENTS(2)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-37097 Y_SENSOR_BR_F_ASM 1

2 401-36751 Y_SENSOR_BR (1)

3 401-37317 YPOSLIMITSENSORASM (1)

4 401-37319 YNEARSENSORASM (1)

5 SM-4860801-SC SCREWM2.6L=8 (2)

6 WP-0320501-SC WASHERM3 (2)

7 401-37098 Y_SENSOR_BR_R_ASM 1

8 401-37318 YNEGLIMITSENSORASM (1)

9 SM-4860801-SC SCREWM2.6L=8 (1)

10 WP-0320501-SC WASHERM3 (1)

11 401-36751 Y_SENSOR_BR (1)

12 401-13989 YSTOPPERASM 2

13 SM-4030601-SC SCREWM3X0.5L=6 (2)

14 400-49671 COVERCUSHION (2)

15 400-00708 YSTOPPER (1)

16 SM-6051602-TN SCREW 48

17 401-37049 Y_STOPPER_ASM_A 2

18 400-00708 YSTOPPER (1)

19 401-36747 Y_STOPPER_BR (1)

20 SL-6030892-TN SCREWM3L=8 (2)

21 400-49671 COVERCUSHION (2)

22 SM-4030601-SC SCREWM3X0.5L=6 (2)

23 400-98046 Y_LM_GUIDE_XL 2

24 SL-6040892-TN SCREWM4L=8 2

25 SL-6040892-TN SCREWM4L=8 2

26 SM-6126002-TN SCREWM12L=60 8

27 401-06039 YLMGUIDEL 2
