- - 24. HMSCOMPON ENTS 2 3 4 5 6 7 9 1 0 1 2 1 3 1 4 1 5 1 6 1 1 8 1

- -

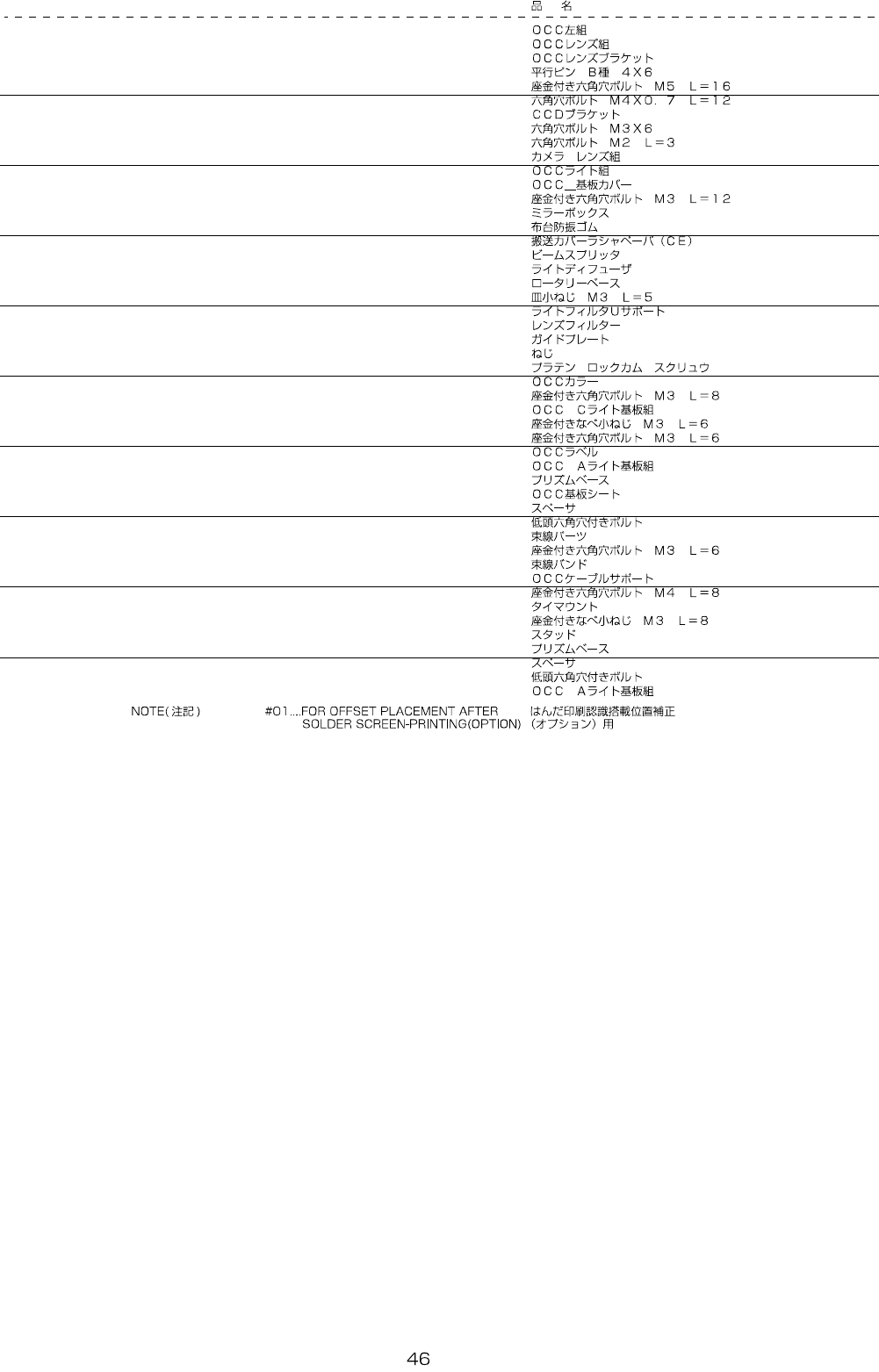

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-37648 OCC_LEFT_ASM 1

2 401-37649 OCC_LENS_ASM (1)

3 400-46839 OCC_LENS_BRACKET (1)

4 PH-0400062-C0 PARALLELPINTYPEB4X6 (2)

5 SL-6051692-TN SCREWM5L=16 (2)

6 SM-6041202-TN SCREWM4X0.7L=12 (2)

7 400-46805 CCD_BRACKET (1)

8 SM-6030602-TN SCREWM3X6 (1)

9 SM-6020302-UZ SCREWM2L=3 (2)

10 400-47573 CAMERALENSASSY (1)

11 401-37650 OCC_LIGHT_ASM (1)

12 401-36791 OCC_PCB_COV (1)

13 SL-6031292-TN SCREWM3L=12 (4)

14 401-36792 MIRROR_BOX (1)

15 118-04606 RUBBERPLUG (10)

16 E1143-721-000 WOOLENCLOTHPAPER (1)

17 400-14037 BEAMSPRITTER (1)

18 400-43895 LIGHTDIFFUSER (1)

19 400-13944 ROTARYBASE (1)

20 SM-1030501-SC SCREWM3L=5 (3)

21 400-13949 LIGHTFILTERUSUPPORT (1)

22 400-43896 LENSFILTER (1)

23 400-13948 GUIDEPLATE (1)

24 SM-1020301-SN SCREW (4)

25 E1038-871-000 PLATENLOCKCAMSCREW (2)

26 400-15847 OCCCOLLAR (1)

27 SL-6030892-TN SCREWM3L=8 (1)

28 400-47512 OCCCLIGHTPCBASM (1)

29 SL-4030691-SC SCREWM3L=6 (2)

30 SL-6030692-TN SCREWM3L=6 (3)

31 400-15962 OCCLABEL (1)

32 400-47508 OCCALIGHTPCBASM (1)

33 400-14043 PRISMBASE (1)

34 401-37027 OCC_PCB_SHEET (1)

35 HX-0033500-0G SPACER (4)

36 400-32433 LOWHEADSCREWM3_10 (4)

37 HX-0034400-00 FIXEDBASE (1)

38 SL-6030692-TN SCREWM3L=6 (1)

39 EA-9500B01-00 CABLEBAND (1)

40 401-38411 OCC_CABLE_SUPPORT 1

41 SL-6040892-TN SCREWM4L=8 2

42 HX-0045400-00 TIEMOUNT 1

43 SL-4030891-SC SCREWM3L=8 1

44

#01

401-37025 STUD 4

45

#01

400-14043 PRISMBASE 1

46

#01

HX-0033500-0G SPACER 4

47

#01

400-32433 LOWHEADSCREWM3_10 4

48

#01

400-47508 OCCALIGHTPCBASM 1

- -

24.HMSCOMPONENTS

2

3

4

5

6

7

9

1 0

1 2

1 3

1 4

1 5

1 6

1 1

8

1

- -

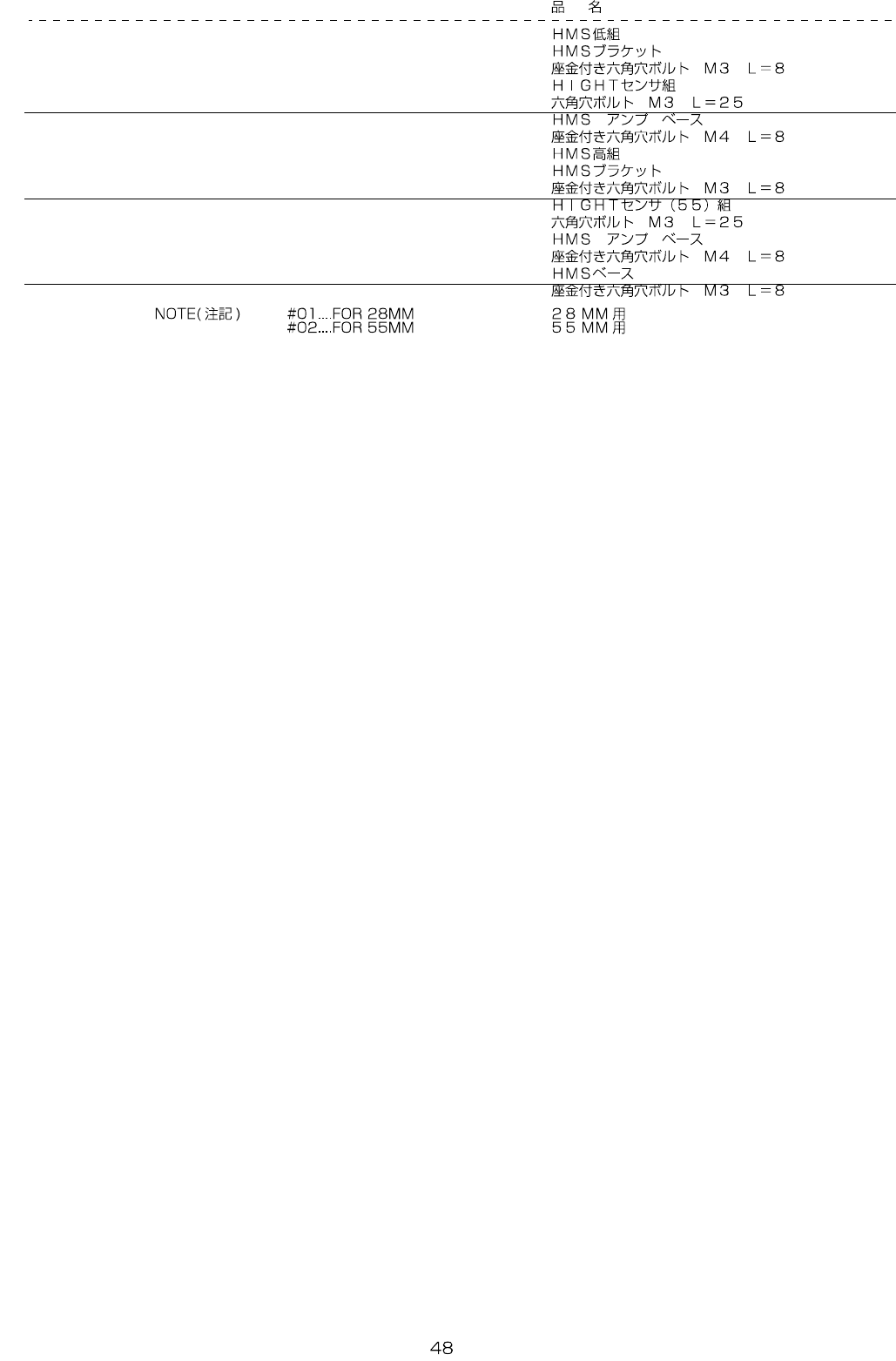

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#01

401-38500 HMS_LOWER_ASM 1

2 401-38412 HMS_BR (1)

3 SL-6030892-TN SCREWM3L=8 (2)

4 401-36485 HIGHTSENSORASM (2)

5 SM-6032502-TN SCREWM3L=25 (2)

6 L245E-021-000 HMSAMPBASE (1)

7 SL-6040892-TN SCREWM4L=8 (2)

8

#02

401-38501 HMS_UPPER_ASM 1

9 401-38412 HMS_BR (1)

10 SL-6030892-TN SCREWM3L=8 (2)

11 401-37330 HIGHTSENSOR(55)ASM (1)

12 SM-6032502-TN SCREWM3L=25 (2)

13 L245E-021-000 HMSAMPBASE (1)

14 SL-6040892-TN SCREWM4L=8 (2)

15 401-38413 HMS_BASE (1)

16 SL-6030892-TN SCREWM3L=8 (3)
