65.SYSTEMDIAGRAM(2) ..................................................................................................................................................129
66.SYSTEMDIAGRAM(3) ..................................................................................................................................................131
67.SYSTEMDIAGRAM(4) ..................................................................................................................................................133
68.SYSTEMDIAGRAM(5) ..................................................................................................................................................135
69.SYSTEMDIAGRAM(6) ..................................................................................................................................................137
70.SYSTEMDIAGRAM(7) ..................................................................................................................................................139
- -
MAINUNIT

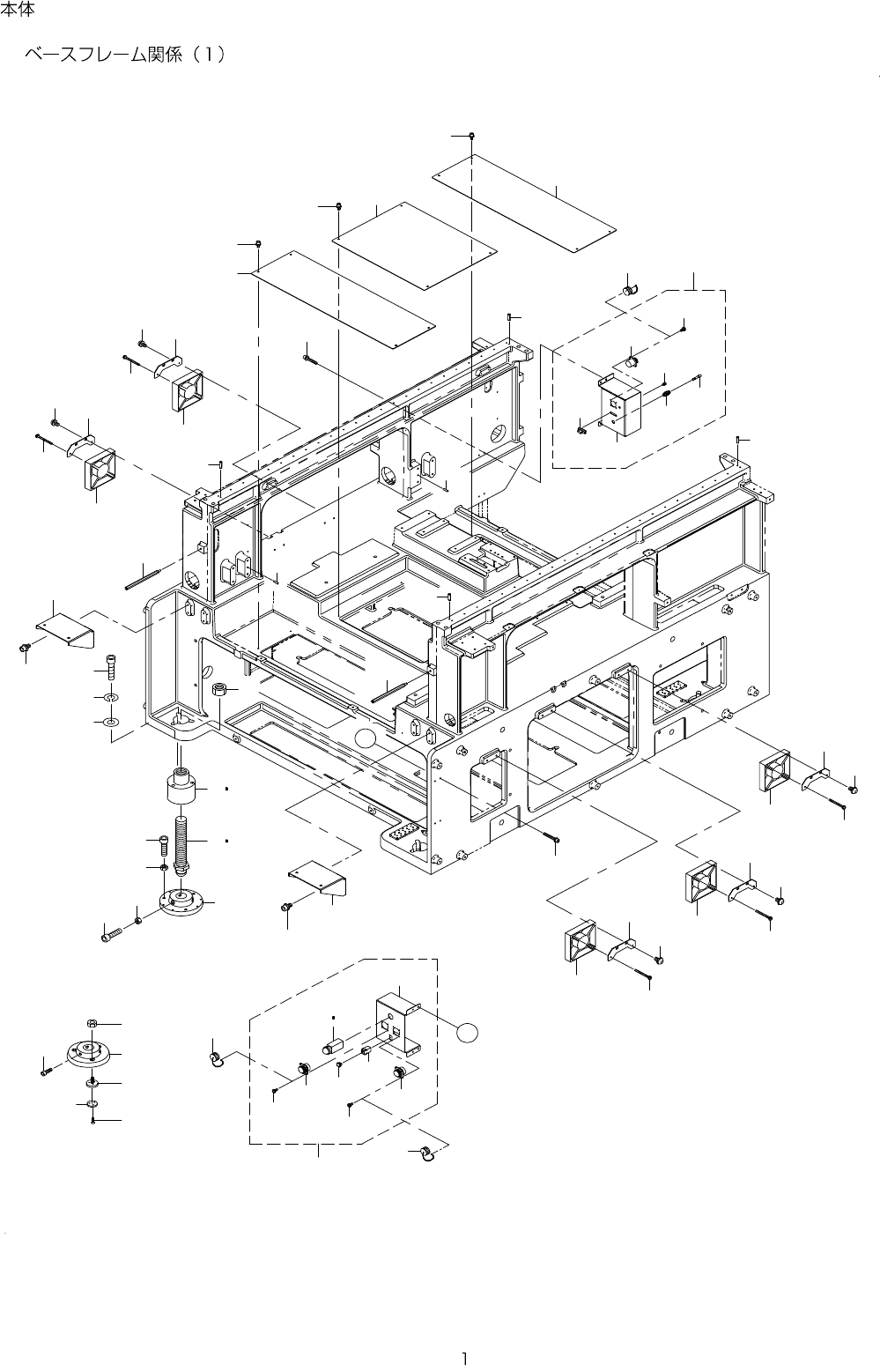

1. BASEFRAMECOMPONENTS(1)
2 6
2 5
2 2
2 1
2 0
2 2
2 1
2 0
4 6
1 4
1 3
1 4
1 0
1 1
9 4 4
1 2
6
1 3
7 1 9
4 8
1 6
4 7
5 0
4 9
1 5
1 7
3 5
4 0
3 7
1 8
2 8
3 2 3 3
3 0
3 1
2 9
2 9
2 7
4 6
3 4
4 3
4 2
3 8
3 9
3 6
4 1
1 8
1 8
1 8
2 1
2 2
2 0
2 0
2 1
2 2
2 5
2 5
2 2
2 1
2 0
2
2
3
4
4
4
5
2 4
2 4
5
A
A
2 3
2 3
8
2 5
2 5
1
1
4 5
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 PS-0500202-KP SPRINGPIN5X20 2
2 401-36709 BANK_PLATE 2
3 401-36710 BU_PLATE 1
4 SL-6040892-TN SCREWM4L=8 12
5 401-36711 FU_COVER_BR 2
6 E1035-729-000 ADJUSTERFOOT 4
7 400-00519 BASEFRAMENUT 4
8 E1044-729-000-A ADJUSTNUT 4
9 400-00403 ADJUSTBOLT 4
10 SM-6126002-TN SCREWM12L=60 12
11 WS-1220002-KN SPRINGWASHER 12
12 WP-1302501-SC WASHER13X24X2.5 12
13 SM-6083002-TN SCREWM8L=30 24
14 NM-6080002-SC NUTM8 12
15
#02
400-13307 FPPUSHER 12
16
#02
NM-6080001-SC NUTM8X1.25 12
17
#01
HK-0429900-7A CAP 1
18 PS-0400122-KP SPRINGPINTYPEW4X12 4
19
#01
400-00535 BASEFRAMENUT(EN) 4
20 401-08337 FANBR 5
21 401-33768 DCFAN 5
22 SL-4033091-SC SCREWM3L=30 10
23 401-36712 FU_COVER_POST 2
24 SL-6061292-TN SCREWM6L=12 8
25 SL-3061232-TN SCREWM6L=12 10
26 401-37042 IF_PANEL_ASSY 1
27 401-36735 IF_PANEL (1)
28 401-36512 SMEMAOUTCABLEASM (1)
29 SL-4030881-SC SCREWM3L=8 (8)
30 HK-0651200-80 CONNECTOR (1)
31 401-36511 SMEMAINCABLEASM (1)
32
#03
401-06608 POWERLAMP200VCABLEASM (1)
33
#04
401-06609 POWERLAMP400VCABLEASM (1)
34
#01
HX-0066000-00 DUSTCOVER (1)
35 401-37043 MTS_IF_PANEL_ASSY 1
36 401-36445 MTCPWRWIRELASM (1)
37 SL-4030881-SC SCREWM3L=8 (4)
38 PJ-2300062-00 UNION (1)
39 PX-9500010-00 PLUG (1)
40 SM-4860501-SB SCREWM2.6L=5 (2)
41 401-36736 MTS_IF_PANEL (1)
42 400-95126 MTCMTSI/FBRCABLEASM (1)
43 SL-6042592-TN SCREWM4L=25 4
44
#01
400-00404 ADJUSTBOLT(EN) 4
45 SL-6043092-TN SCREWM4L=30 4
46
#01
HK-0429901-4A CAP 2
47
#02
E6600-729-000 ADJUSTFOOTN 4
48
#02
SM-6082502-TN SCREW 12
49
#02
400-13306 FLICTIONPLATE 12
50
#02
SM-1030801-SC SCREWM3L=8 36
