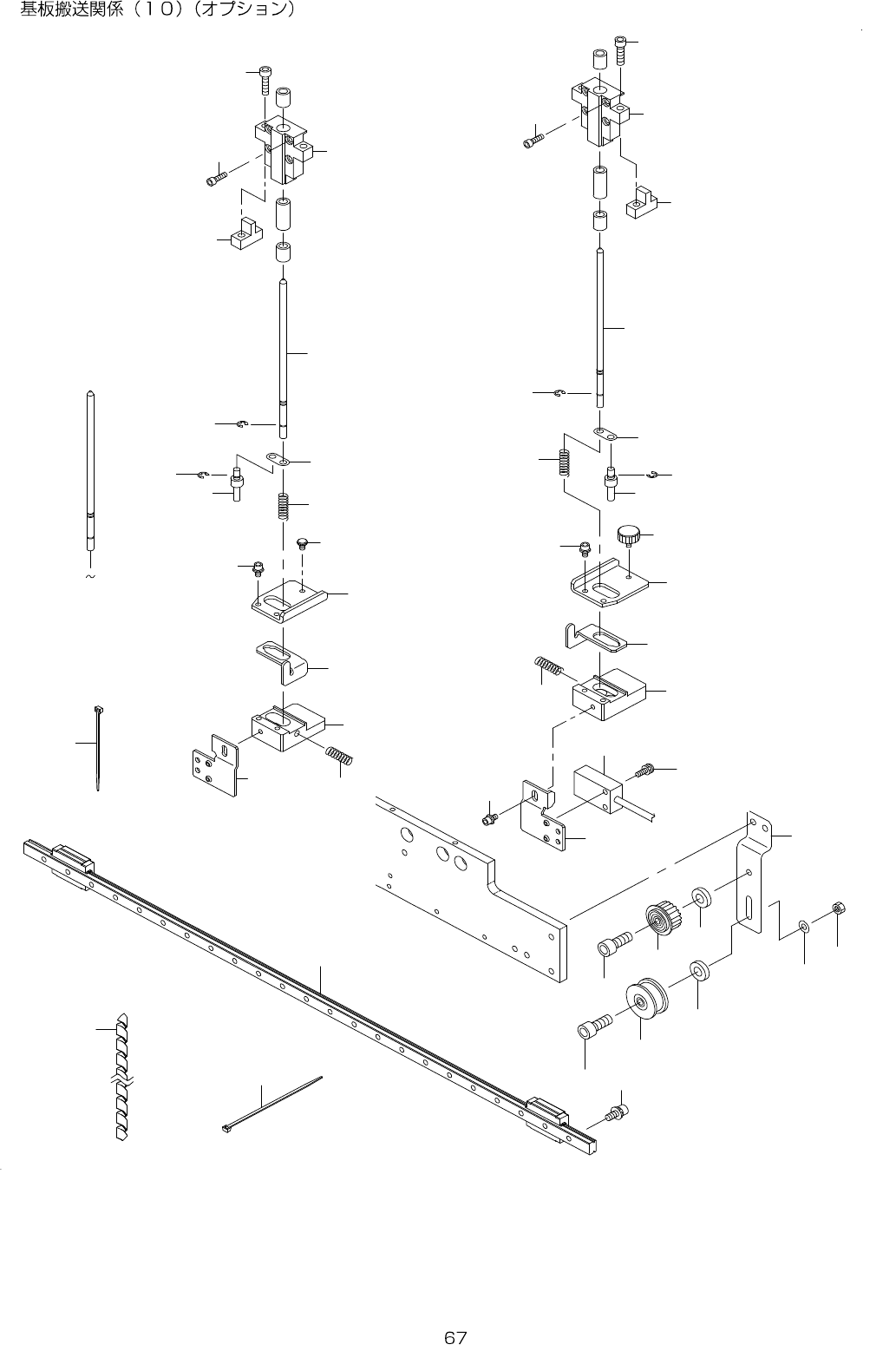

34.PWBCONVEYORCOMPONENTS(10)(OPTION)
4 7
3
5
1
4
2
5
1
2
4
4 8
6
4 6
4 5
2 7 4 4
1 3
1 4
2 4
1 2
1 7
2 1
1 7
1 6
1 5
1 4
1 3
1 2
2 4
2 2
2 0
6
8
8
7
1 9
1 8
1 1
1 0
9
2 6
2 3
2 3
2 5
5 1
5 7
5 2
5 0
4 9
5 4
5 3
5 5
5 6
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-00887 GUIDEBLOCKAASM 2
2 SM-6031002-TN SCREWM3L=10 6
3 401-10735 LINEARWAYCP 1
4 400-00877 GUIDEBLOCKCLAMP 2
5 SM-6041602-TN SCREWM4X16 2
6 400-15793 LOCKSPRING 2
7 L1792-721-000 DAMPERBLOCKR 1
8 SL-6030892-TN SCREWM3L=8 4
9 400-00891 STOPERSLIDELEVERL 1
10 400-00897 STOPERSLIDELEVERR 1
11 L179E-621-000 DAMPERBLOCKL 1
12 400-00978 DAMPERLOCKLINK 2
13 400-00950 DAMPERSPRING 2
14 RE-0300000-K0 E-RING3 6
15 EA-9500B00-00 CABLEBAND 1
16 HX-0031400-00 SPIRALTABE 0.3
17 400-01081 CENTERINGPIN4.0 2
18 400-15791 DAMPERPLATEL 1
19 400-15792 DAMPERPLATER 1
20 400-92576 T.PINSENSASM 1
21 SL-6030692-TN SCREWM3L=6 1
22 SL-4031091-SC SCREWM3L=10 2
23 RE-0300000-K0 E-RING3 2
24 400-00896 DAMPERLOCKPIN 2
25 E2148-721-000 SENSORBRACKETR 1
26 E2147-721-000 SENSORBRACKETL 1
27 400-01087 CENTERINGPIN3.4 1
28 400-01088 CENTERINGPIN3.3 1
29 400-01089 CENTERINGPIN3.2 1
30 400-01090 CENTERINGPIN3.1 1
31 400-01091 CENTERINGPIN3.0 1
32 400-01092 CENTERINGPIN2.9 1
33 400-01093 CENTERINGPIN2.8 1
34 400-01094 CENTERINGPIN2.7 1
35 400-01095 CENTERINGPIN2.6 1
36 400-01096 CENTERINGPIN2.5 1
37 400-01097 CENTERINGPIN2.0 1
38 400-01098 CENTERINGPIN1.9 1
39 400-01099 CENTERINGPIN1.8 1
40 400-01082 CENTERINGPIN3.9 1
41 400-01083 CENTERINGPIN3.8 1
42 400-01084 CENTERINGPIN3.7 1
43 400-01085 CENTERINGPIN3.6 1
44 400-01086 CENTERINGPIN3.5 1
45 E2141-725-000 BUHANDKNOBS 1
46 E2076-721-000 BUHANDKNOB 1
47 SM-6030802-TN SCREW 14
48 EA-9500B01-00 CABLEBAND 8
49 400-01046 IDLERPLATE(L) 1
50 400-00822 GUIDEPULLEYASM 1
51 E2079-700-000 BELT_PULLEY_SPACER_B 1
52 SM-6041602-TN SCREWM4X16 1
53 400-00824 IDLERASM 1
54 SM-6041602-TN SCREWM4X16 1
55 E2099-700-000 BACKUPBOSS 1
56 NM-6040001-SC NUTM4X0.7TYPE1 2
57 WP-0430801-SC WASHERM4 2
- -
35.PWBCONVEYORCOMPONENTS(11)(TYPEXL)
1
1 3
1 4
A
C
E
3 1
1 2
5
5
6
2
1 7
1 6
3 0
7
8
7
8
8
8
7
1 0
9
2 3
1 9
2 6
2 8
2 9
1 8
1 1
A
B
D
2 1
2 1
2 3
1 9
2 6
3
4
2 2
2 7
2 7
7
1 5
C
2 0
2 5
2 4
2 5
2 4
6
E
3 2
3 3
B
3 3
3 2
D
3 6
3 4
3 6
3 5
3 4
3 5
