- - 39. PWBCONVEY ORCOMPONENTS( 15)(TYPEXL) 2 6 2 5 2 3 2 4 2 2 2 6 2 5 2 3 2 4 2 2 2 0 2 0 2 6 2 1 2 1 1 2 9 1 5 6 5 7 1 1 1 0 8 1 0 1 3 5 1 4 6 7 1 1 1 4 1 6 2 7 2 7 1 9 2 7 2 8 2 5 2 3 2 9 2 4 2 2 1 9 2 6 2 1 1 7…

100%1 / 148
- -

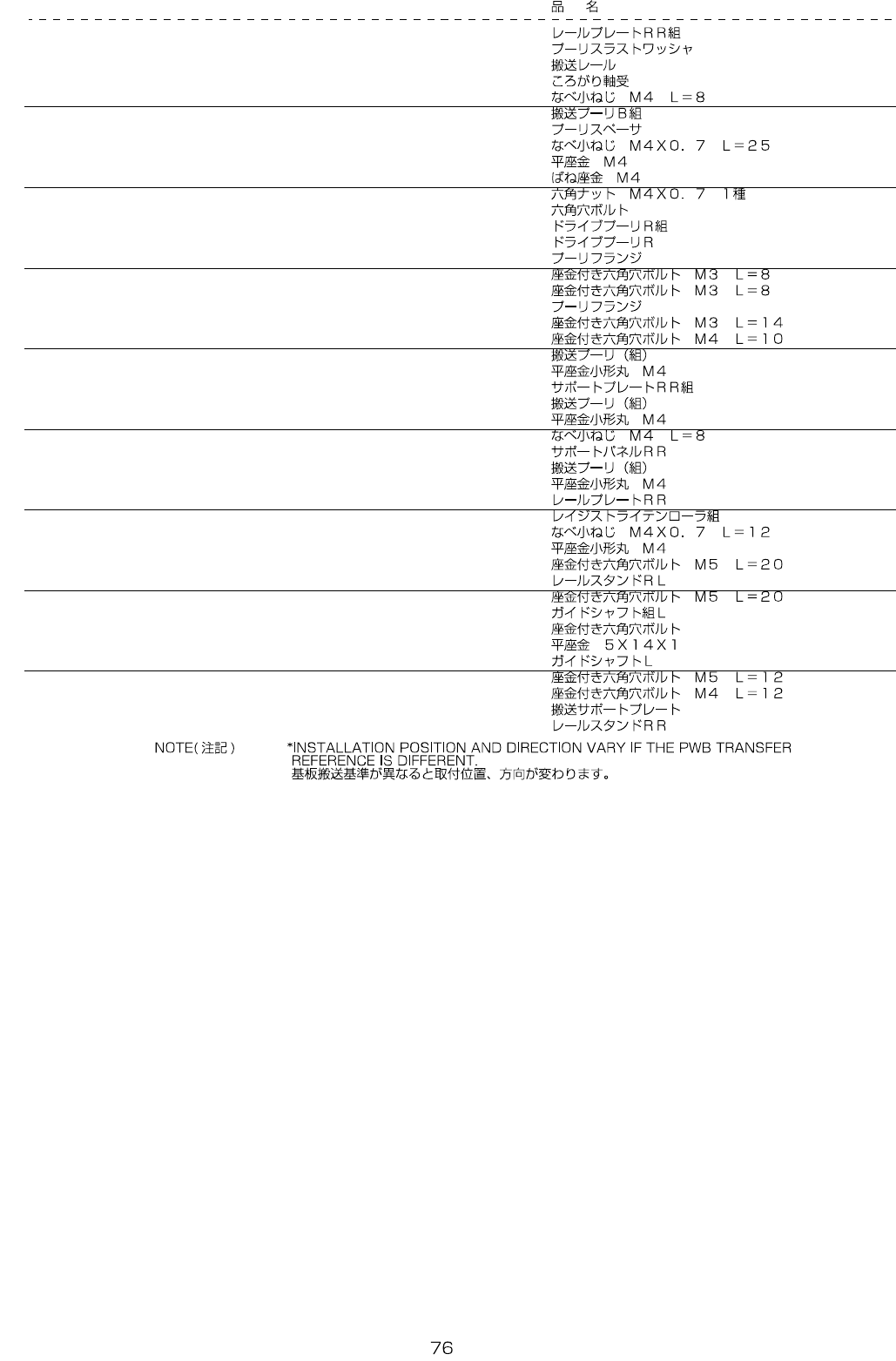

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-37180 RAIL_PLATE_RR_ASM 1
2 E3931-750-000 PULLEYWASHER (4)
3 401-38183 CONVEYOR_RAIL (1)
4 SB-8200001-00 BEARING (2)
5 SM-4040855-SC SCREW (2)
6 E2089-721-0A0 CONVEYORPULLEYBASM. (1)
7 E2055-721-000 PULLEYSPACER (1)
8 SM-4042501-SC SCREWM4X0.7L=25 (2)
9 WP-0430801-SC WASHERM4 (2)
10 WS-0410002-KN SPRINGWASHERM4 (2)
11 NM-6040001-SC NUTM4X0.7TYPE1 (2)
12 SM-6051002-TN SCREW (8)
13 400-00839 DRIVEPULLEYRASM (2)
14 400-00840 DRIVEPULLEYR (1)
15 E2160-721-000 PULLEYFLANGE (1)
16 SL-6030892-TN SCREWM3L=8 (3)
17 SL-6030892-TN SCREWM3L=8 (6)
18 E2160-721-000 PULLEYFLANGE (2)
19 SL-6031492-TN SCREWM3L=14 (4)
20 SL-6041092-TN SCREWM4L=10 (2)
21 E2111-715-0A0 CONVEYORPULLEYASM. (2)
22 WP-0430800-SC WASHERM4 (2)
23 401-37181 SUPPORTPLATERRASM (1)
24 E2111-715-0A0 CONVEYORPULLEYASM. (6)
25 WP-0430800-SC WASHERM4 (6)
26 SM-4040855-SC SCREW (6)
27 401-36816 SUPPORT_PLATE_RR (1)
28 E2111-715-0A0 CONVEYORPULLEYASM. (1)
29 WP-0430800-SC WASHERM4 (1)
30 401-36814 RAIL_PLATE_RR (1)
31 401-38303 RESIST_LIGHTEN_ROLLER_ASM (2)
32 SM-4041201-SC SCREWM4X0.7L=12 (2)
33 WP-0430800-SC WASHERM4 (2)
34 SL-6052092-TN SCREWM5L=20 2
35 401-36817 RAIL_STAND_RL 1
36 SL-6052092-TN SCREWM5L=20 2
37 401-37167 GUIDE_SHAFT_ASM_L 4
38 SL-6052042-TN SCREW (1)
39 WP-0501046-SC WASHER5X14X1 (2)
40 401-36819 GUIDE_SHAFT_L (1)
41 SL-6051292-TN SCREWM5L=12 (1)
42 SL-6041292-TN SCREWM4L=12 4
43 401-46998 CONVEYOR_SUPPORT_PLATE 1
44 401-36818 RAIL_STAND_RR 1
- -
39.PWBCONVEYORCOMPONENTS(15)(TYPEXL)
2 6
2 5
2 3
2 4
2 2
2 6
2 5
2 3
2 4
2 2
2 0
2 0
2 6
2 1
2 1
1 2
9
1 5
6
5
7
1 1
1 0
8
1 0
1 3
5
1 4
6
7
1 1
1 4
1 6
2 7
2 7
1 9
2 7
2 8
2 5
2 3
2 9
2 4
2 2
1 9
2 6
2 1
1 7
3 0
1 7
1 8
3 0
1 8
2 6
2 6
1 7
1 8
3 0
3 3
3 3
3 1
1 2
9
1 5
8
1 9
4
3 4
2 8
2 8
2
3 5
3 2 3 6
3
1
- -

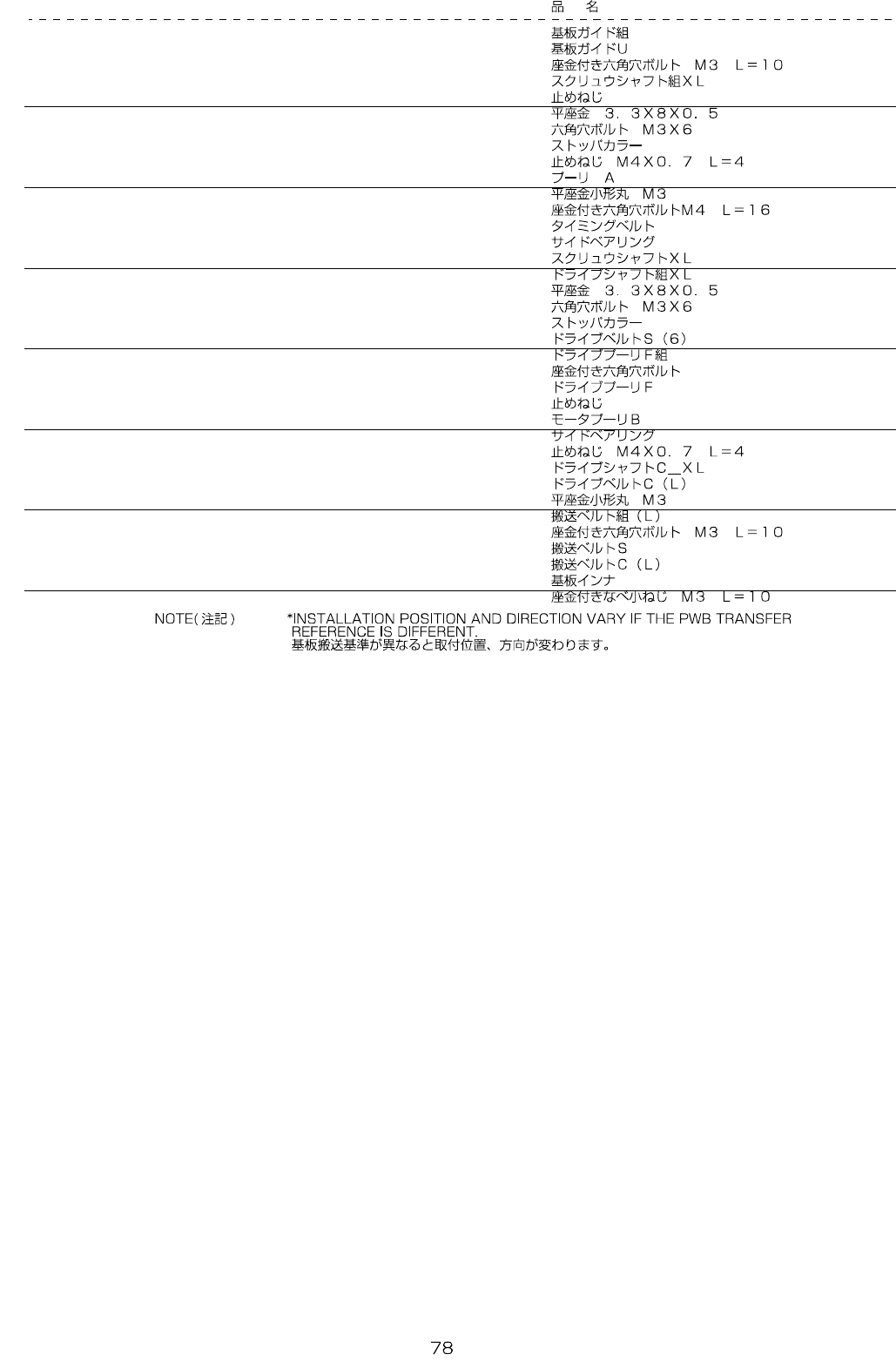

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-00860 PWBGUIDEASM 1
2 400-00861 PWBGUIDEU (8)
3 SL-6031092-TN SCREWM3L=10 (16)
4 401-37200 SCREW_SHAFT_ASM_XL 1
5 SM-8040602-TP SCREWM4X0.7L=6 (4)
6 WP-0330516-SC WASHER3.3X8X0.5 (4)
7 SM-6030602-TN SCREWM3X6 (4)
8 E2141-721-000 STOPPERCOLLAR (2)
9 SM-8040402-TP SCREWM4X0.7L=4 (4)
10 E2156-721-000 PULLEYA (2)
11 WP-0320500-SF WASHERM3 (8)
12 SL-6041692-TN SCREWM4L=16 (8)
13 E2146-721-000 TIMINGBELT (1)
14 SB-1080002-00 SIDEBEARING (4)
15 400-97730 SCREW_SHAFT_XL (2)
16 401-37201 DRIVE_SHAFT_ASM_XL 1
17 WP-0330516-SC WASHER3.3X8X0.5 (6)
18 SM-6030602-TN SCREWM3X6 (6)
19 E2141-721-000 STOPPERCOLLAR (3)
20 400-46033 DRIVEBELTS(6) (2)
21 400-00849 DRIVEPULLEYFASM (3)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVEPULLEYF (1)
24 SM-8040602-TP SCREWM4X0.7L=6 (2)
25 400-00851 MOTORPULLEYB (1)
26 SB-1080002-00 SIDEBEARING (6)
27 SM-8040402-TP SCREWM4X0.7L=4 (6)
28 400-98132 DRIVE_SHAFT_C_XL (3)
29 400-01005 DRIVEBELTC(L) (1)
30 WP-0320500-SF WASHERM3 (12)
31 400-01068 CONVEYORBELTASM(L) 1
32 SL-6031092-TN SCREWM3L=10 (16)
33 400-00863 CONVEYORBELTS (4)
34 400-01070 CONVEYORBELTC(L) (2)
35 E2046-725-000 PWBINNER (12)
36 SL-4031091-SC SCREWM3L=10 (8)
