0108-003 9-1 ㇱຠ⇟ภ ㇱ ຠ ฬ ⠨ PART No. PART NAME REMARKS CT-7280L-08 CT-7280L-12 CT-7280HL-08 CT-7280HL-12 1 630 080 2443 FRAME(CASSET TE BODY) 1111 7 0 6 T - - 0 1 B - 0 0 1 2 630 037 0294 PIN,LOCA TE 1111 7 0 6 T - - 0 1…
9903-001
72mm ࠹ࡊࡈࠖ࠳ 72mm TAPE FEEDER

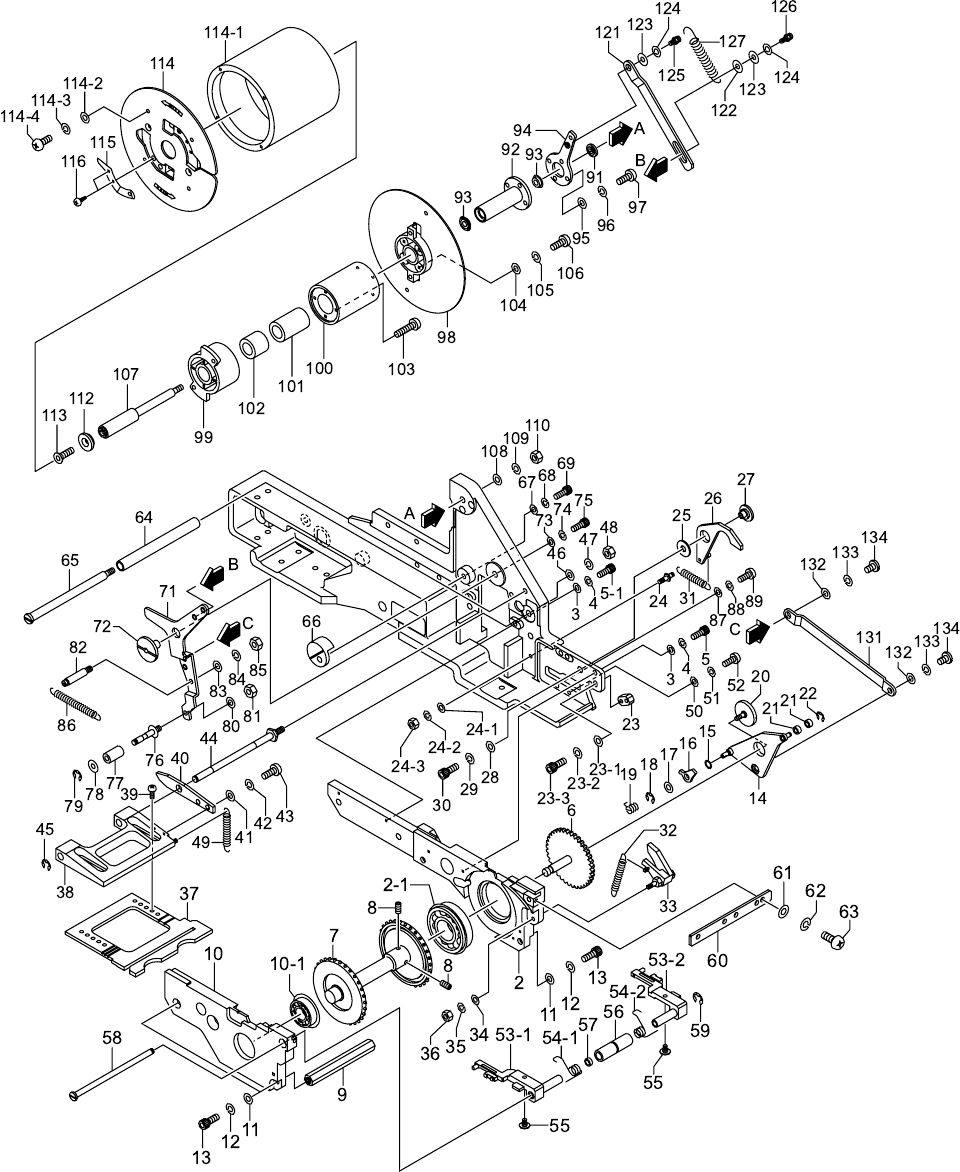

Fig. 9-1 ࠞ࠶࠻ࡏ࠺ࠖㇱ Cassette Body Section
0108-003
9-1
ㇱຠ⇟ภ ㇱ ຠ ฬ ⠨
PART No. PART NAME REMARKS
CT-7280L-08
CT-7280L-12
CT-7280HL-08
CT-7280HL-12
1 630 080 2443 FRAME(CASSETTE BODY) 1111 706T--01B-001
2 630 037 0294 PIN,LOCATE 1111 706T--01H-003
4 630 039 3002 PLATE 2222 706T--01B-070
5 630 039 3200 PIN,LOCATE 1111 706T--01B-072
6 630 039 3187 PIN,LOCATE 1111 706T--01B-071
7 411 141 4008 WASHER V 4X9X0.8 2222 FW4
8 411 141 2905 WASHER SPR 4 2222 SW4
9 411 141 0307 NUT HEX 4 2222 M4
11 630 054 4800 BRACKET 1 1 706T--01B-003
12 630 070 7601 BRACKET(GRIP) 1 1 706T--01B-004
13 411 054 8506 NUT HEX 4 1 1 M4 F
14 411 113 4708 SCR FLT 4X10 1 1 706T--01H-012
15 630 036 9696 BOLT(FLT HEX-SCT) 2 2 706T--01H-002
16 630 041 6206 TUBE,WIRING 1 1 706T--01H-009
18 630 010 8248 PIN,LOCATE 1111 706T--01B-005
19 630 043 2374 LEVER(LOCATE) 1111 706T--01B-131
20 411 141 4701 WASHER V 10X21X2 1111 FW10
21 411 000 7102 RING C 10 1111 706T--01H-019
22 411 141 4503 WASHER V 8X17X1.6 1111 FW8
23 411 141 3100 WASHER SPR 8 1111 SW8
24 411 141 1007 NUT HEX 8 1111 M8-3
25 630 010 5957 SPRING,COMP 1111 706T--01B-076
26 630 039 3217 PLATE 1111 706T--01B-051
28 411 141 2905 WASHER SPR 4 1111 SW4
29 630 000 7602 BOLT,HEX-SCT 1111 M4X6
35 630 077 4115 STAY 1111 706T--01B-113
35
-1
411 141 3902 WASHER V 3X7X0.5 2222 FW3
35
-2
411 141 2806 WASHER SPR 3 2222 SW3
35
-3
630 000 7527 BOLT,HEX-SCT 2222 M3X10
36 630 077 4184 PLATE 1111 706T--01B-112
37 411 002 2600 SCR FLT 3X6
䋴䋴䋴䋴
M3X6 FLT
GRAY
ᵈᗧ
NOTE
ᢙ㊂
Q'ty
⇟
ภ
Key No.
9903-001
72mm ࠹ࡊࡈࠖ࠳ 72mm TAPE FEEDER
Fig. 9-2 ࠹ࡊ㚟േㇱ Tape Driving Section
