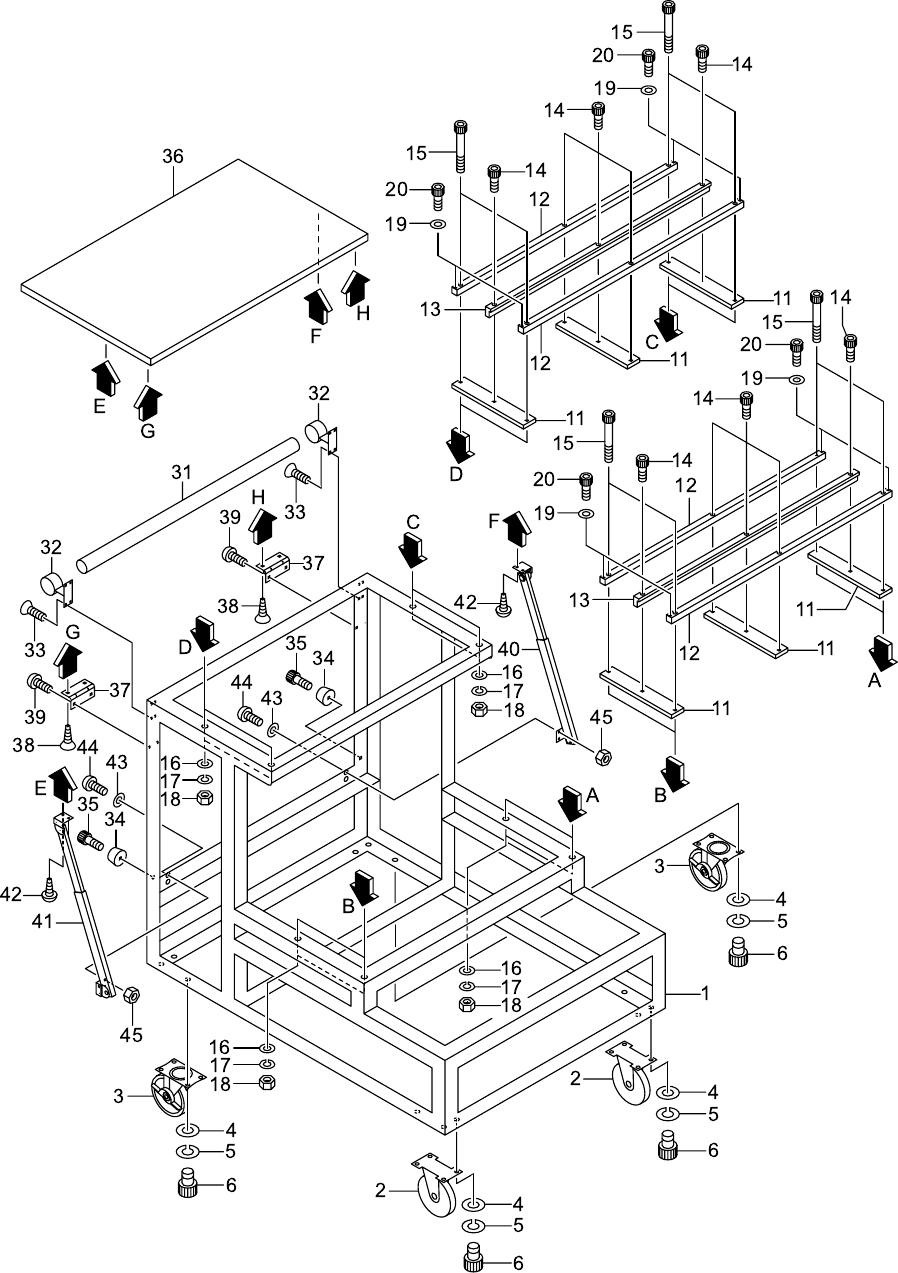

9903-002 ࠞ࠶࠻ FEEDER CART Fig. 21-1 C R -3 0 㧔ዊ ࡞↪㧕 CR-30 (for Small Reel)
0108-002
16-9
ㇱຠ⇟ภ ㇱ ຠ ฬ ⠨
PART No. PART NAME REMARKS
CT-7280HL-08,12
5 630 086 4830 PIN,LOCATE 706HT-01B-003
10 630 091 0421 ASSY,BRACKET(TH-7280)
11 630 085 9607 BRACKET 706HT-01B-001
12 630 070 7601 BRACKET(GRIP) 706HT-01B-002
12 -1 630 085 1526 UNIT,I/O 706HT-01H-001
13 411 054 8506 NUT HEX 4 M4 F
14 411 113 4708 SCR FLT 4X10 M4X10 FLT
16 630 086 5530 TUBE,WIRING 706HT-01H-002
17 411 140 7208 SCR FLT 4X6 M4X6 FLT
2
1
1
1
1
ᵈᗧ
NOTE
⇟
ภ
Key No.
(GRAY)
GRAY
ᢙ㊂
Q'ty
1
1
1
1
9903-002
ࠞ࠶࠻ FEEDER CART
Fig. 21-1 CR-30㧔ዊ࡞↪㧕 CR-30 (for Small Reel)
9903-002
21-1
ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂ ⠨
PART No. PART NAME Q'ty REMARKS
1 630 047 1786 SP(FRAME) 1 026B--02B-001
2 630 031 4540 CASTER 2 026B--01H-009
3 630 031 4557 CASTER 2 026B--01H-008
4 411 141 4503 WASHER V 8X17X1.6
12
FW8
5 411 141 3100 WASHER SPR 8
12
SW8
6 630 000 7985 BOLT,HEX-SCT
12
M8X10
11 630 047 1816 SP(PLATE) 6 026B--02B-004
12 630 047 1793 SP(PLATE) 4 026B--02B-002
13 630 047 1809 SP(PLATE) 2 026B--02B-003
14 630 000 7756 BOLT,HEX-SCT
10
M5X12
15 630 000 7794 BOLT,HEX-SCT 8 M5X30
16 411 141 4107 WASHER V 5X10X1 8 FW5
17 411 141 6705 WASHER SPR 5 8 SW5
18 411 141 0505 NUT HEX 5 8 M5
19 630 010 8248 WASHER V 4X9X0.8 8 FW4
20 630 000 7626 LEVER(LOCATE) 8 M4X10
31 630 047 1823 SP(PIPE) 1 026B--02B-005
32 630 040 3466 HOLDER 2 026B--01H-003
33 411 034 7208 SCR FLT 3X8 8 M3X8 FLT
34 630 040 3497 MECH PARTS 2 026B--01H-007
35 630 000 7626 BOLT,HEX-SCT 2 M4X10
36 630 040 4043 PLATE 1 026B--01H-006
37 630 040 3480 HINGE 2 026B--01H-005
38 411 155 4803 SCR WOOD FLT 3.1X10 4 026B--01H-011
39 411 040 6202 SCR PAN 3X10 4 M3X10 PAN
40
630 040 3428 STAY 1 026B--01H-001
41
630 040 3442 STAY 1 026B--01H-002
42
411 155 4902 SCR WOOD PAN 5.1X16 4 026B--01H-010
43
411 088 1702 WASHER V 5X10X1 4 FW5 F
44
411 043 6803 SCR PAN 5X12 4 M5X12 PAN
45
411 118 8503 NUT HEX 5 4 M5 F
⇟
ภ
Key No.
ᵈᗧ
NOTE
