0108-003 12mm ᏷࠹࡯ࡊࡈࠖ࡯࠳ 12mm TAPE FEEDER Fig. 2-3 ዊ࡝࡯࡞ࡎ࡞࠳ Small Reel Holder RL-1251S RL-1251S

MEMO

0108-003

12mm ᏷࠹࡯ࡊࡈࠖ࡯࠳ 12mm TAPE FEEDER

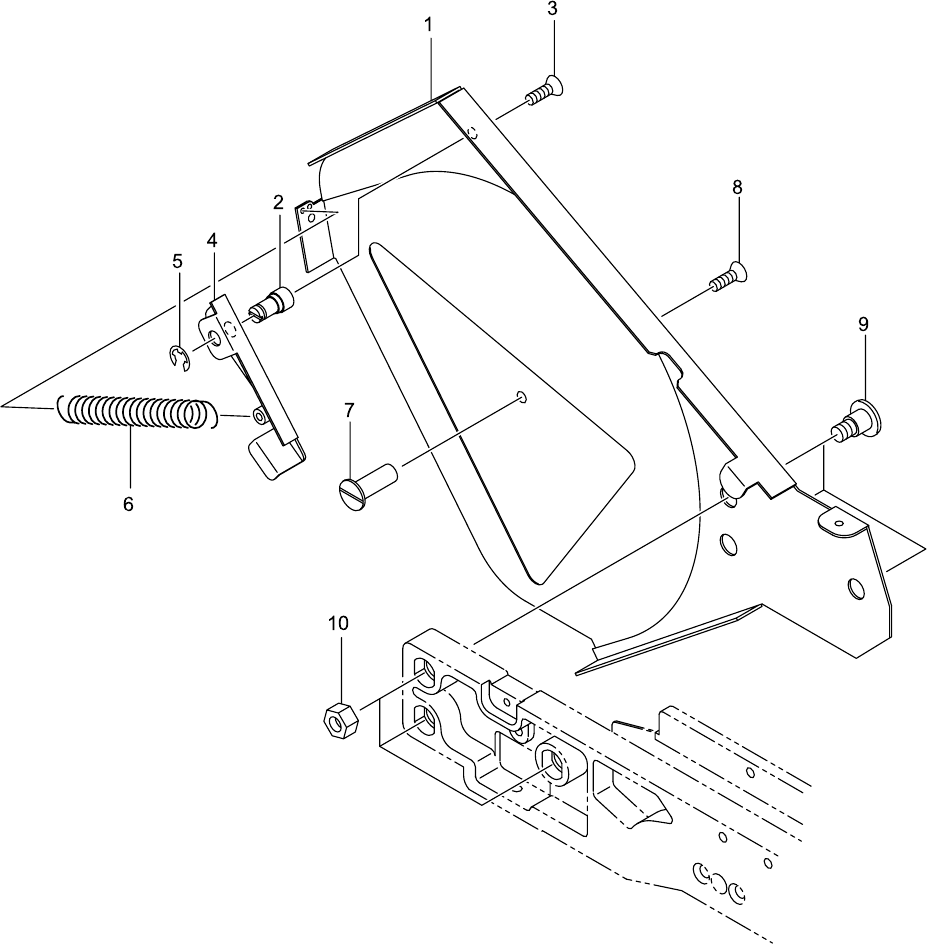

Fig. 2-3 ዊ࡝࡯࡞ࡎ࡞࠳ Small Reel Holder

RL-1251S RL-1251S

0003-003

2-3

ㇱຠ⇟ภ ㇱ ຠ ฬ ஻ ⠨

PART No. PART NAME REMARKS

CT-1252S,PS

CT-1260S

CT-1261S

CT-1280S,PS

CT-1281S,PS

CT-1252TS,HS

CT-1260TS

CT-1261TS

CT-1280TS,HS

CT-1281TS,HS

1 630 039 3613 FRAME 582GS-01B-001

2 630 039 3637 PIN,LOCATE 582GS-01B-004

3 630 036 0974 BOLT(FLT HEX-SCT) 582GS-01H-001

4 630 050 6235 LEVER(ASSY BRAKE)

5 411 001 0201 RING E 5 582GS-01H-002

6 630 039 3453 SPRING,TENSION 582GS-01B-005

7 630 040 4012 PIN,LOCATE 582GS-01B-006

8 630 036 0974 BOLT(FLT HEX-SCT) 582GS-01H-001

9 630 010 6534 BOLT(REEL HOLDER) 582GS-01B-007

10 411 004 6903 NUT HEX 6 M6-3 F

ᢙ㊂

Q'ty

⷗಴⇟

ภ

Key No.

ᵈᗧ

NOTE
