1-12 气路图及实际贴装图 5OM-1752 1306-002 定位单元 ( 气路图 ) ·通常 Pipe φ 8 900 mm φ 6 180 mm φ 6 230 mm φ 6 380 mm φ 6 400 mm φ 6 2100 mm φ 6 2000 mm A B Left Side Cylinder Right Side Cylinder B A A B EA EB P 2 1 3 5 6 6 From Main Body …
1-11
气路图及实际贴装图
5OM-1752

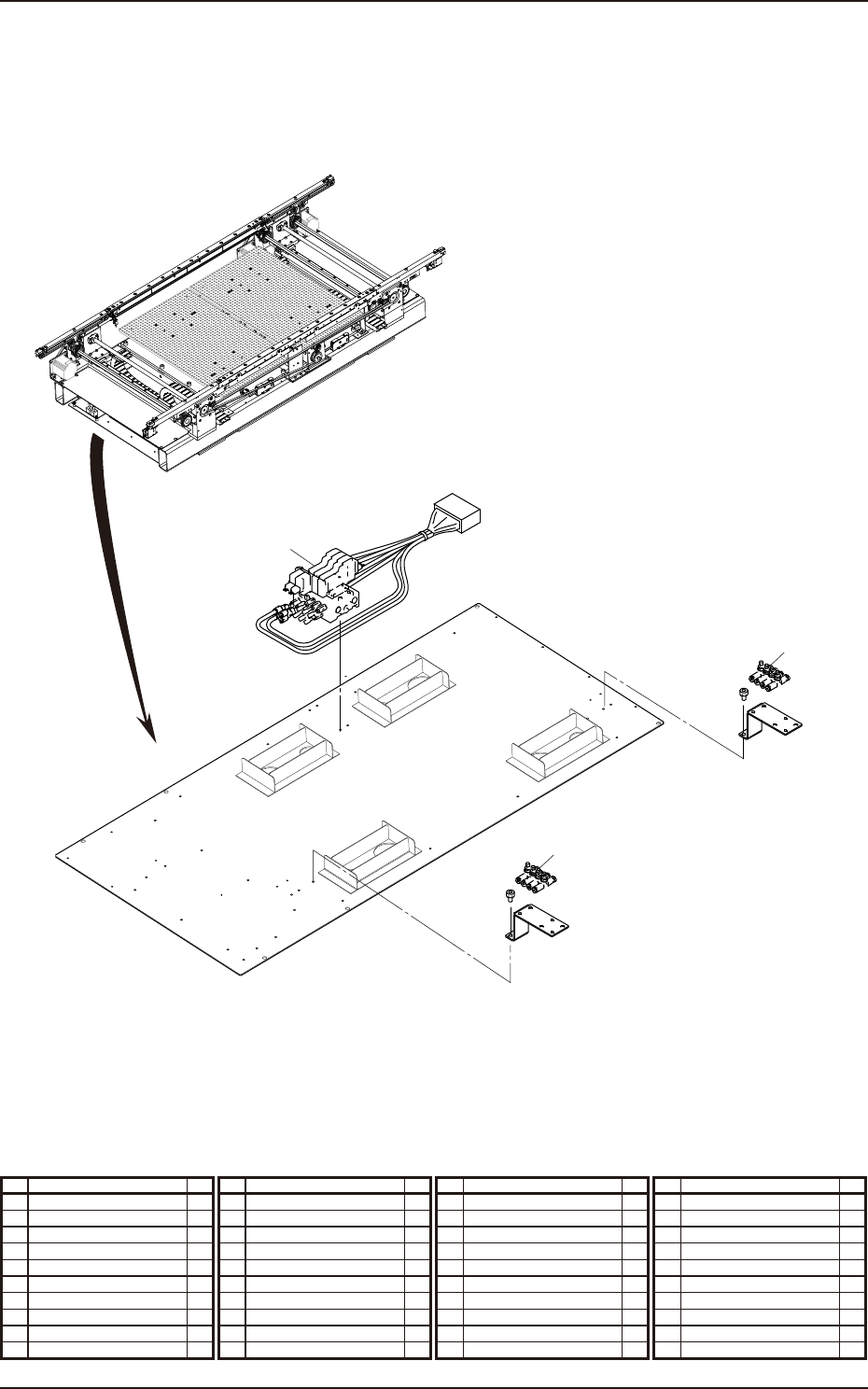

传送带 ( 实际贴装图 2_KYX)
6
11
12
Fig_1-8SA
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
6 Solenoid Valve 1
11 Speed Controller 4
12 Speed Controller 4
1-12
气路图及实际贴装图
5OM-1752
1306-002

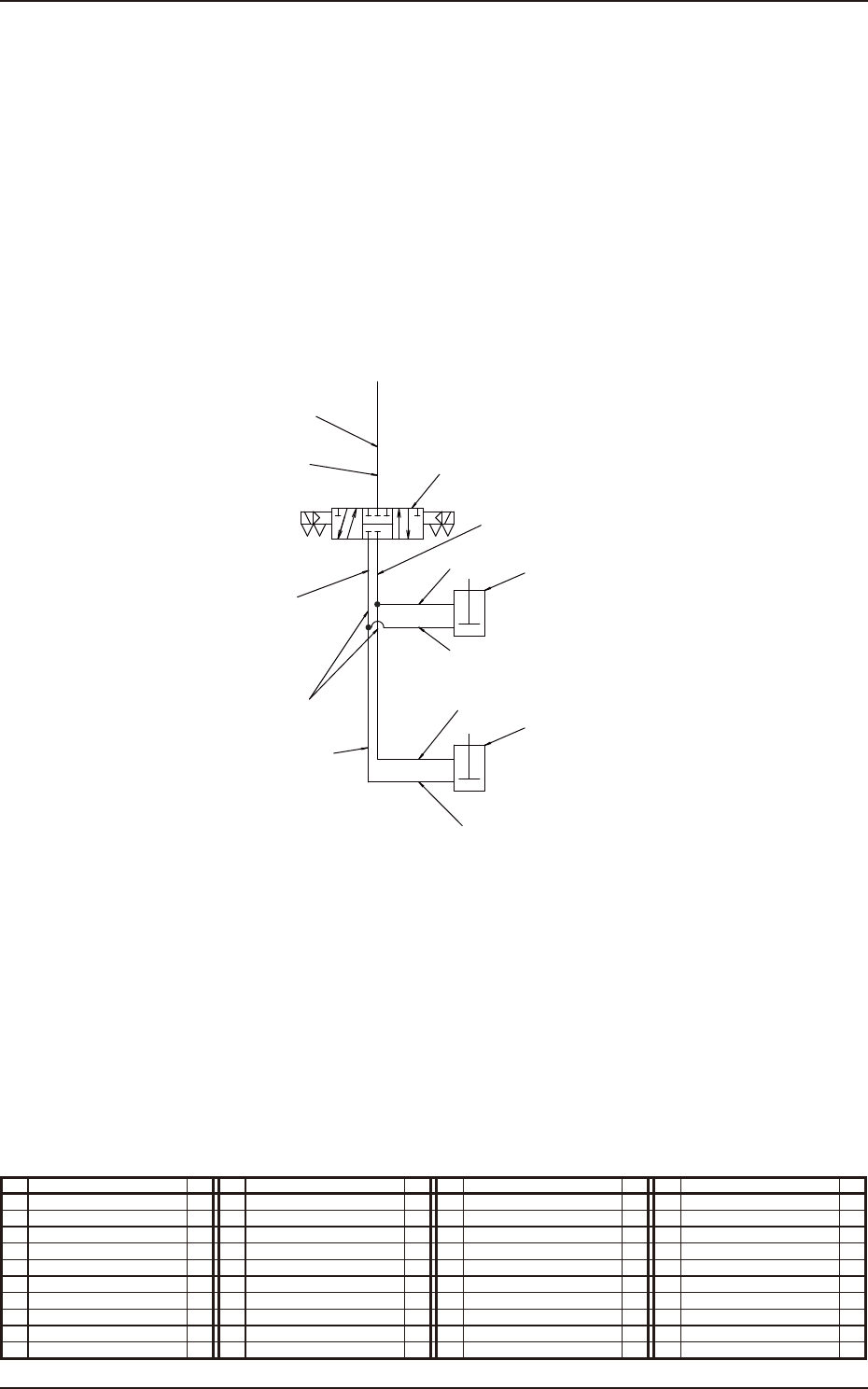

定位单元 ( 气路图 )
·通常
Pipe
φ
8
900 mm
φ6
180 mm
φ6
230 mm
φ6
380 mm
φ6
400 mm
φ6
2100 mm
φ6
2000 mm
A
B
Left Side Cylinder
Right Side Cylinder
B
A
A
B
EA
EB
P
2
1
3
5
6
6
From Main Body
Positioning U/D
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
6 1
2 Tube
φ
8 1
3 Union Y 2
5 Solenoid Valve 1
6 Cylinder 2
1-13
气路图及实际贴装图
5OM-1752
1306-002
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
2 Tube
φ
8 1
4 Tube
φ
4 1

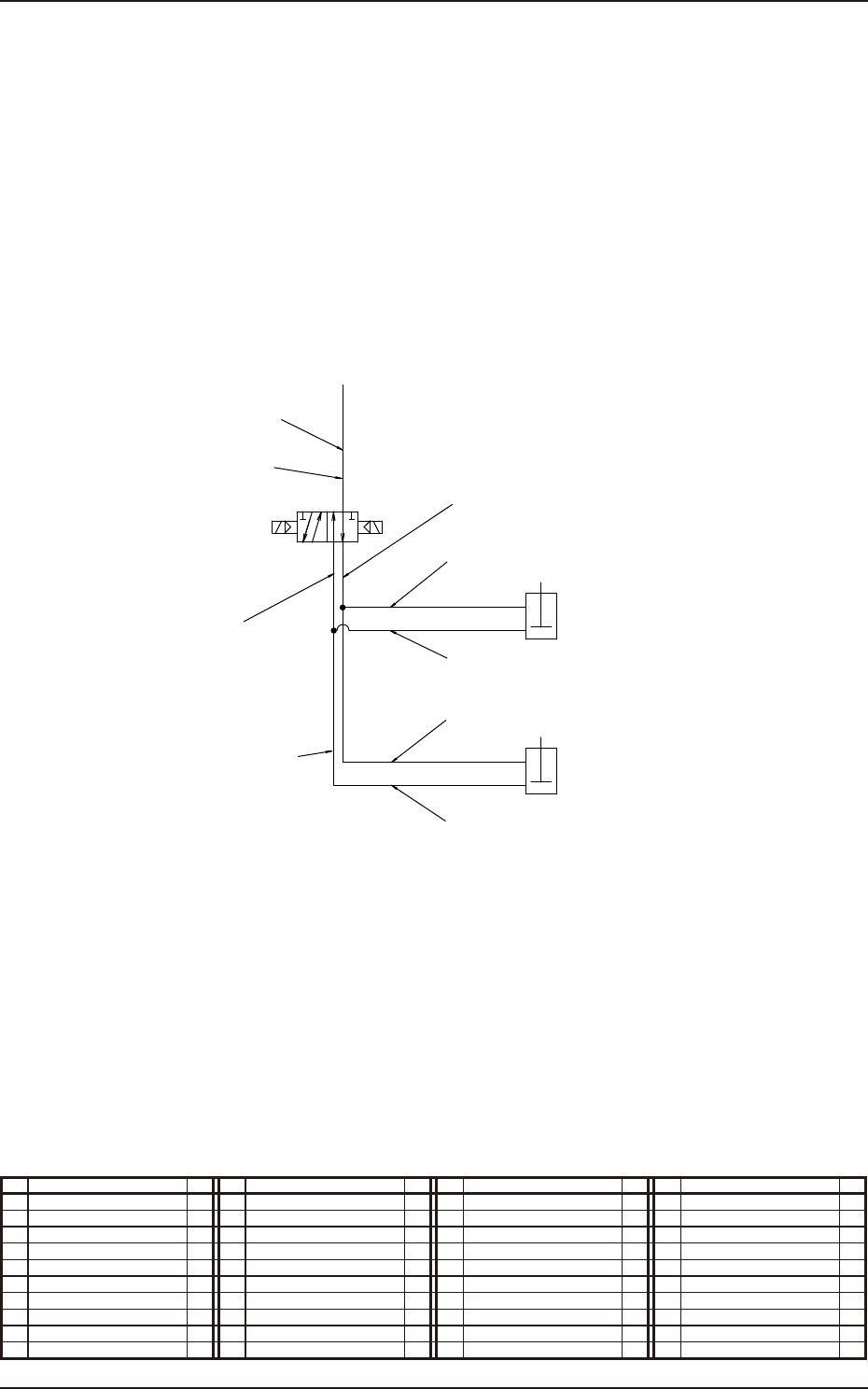

·料盘拉钩推车安装时
A
B
Pipe
φ
6
600 mm
φ4
40 mm
φ4
40 mm
φ4
2700 mm
φ4
2700 mm
Positioning Unit Lowering Prevention
Left Side Cylinder
Right Side Cylinder
φ4
200 mm
φ4
140 mm
B
A
B
A
EB
P
EA
2
4
From Main Body
