2-17 传感器及负载配置图 5OM-1752 1306-002 元件识别照相机布局 E191 E193 E192 B61 Symbol Name Symbol Name B61 Component Recognition Camera E191 Component Recognition Ring Lighting E192 Component Recognition Coaxial Lighting E193 Standard Ma…
2-16
传感器及负载配置图
5OM-1752
1306-002

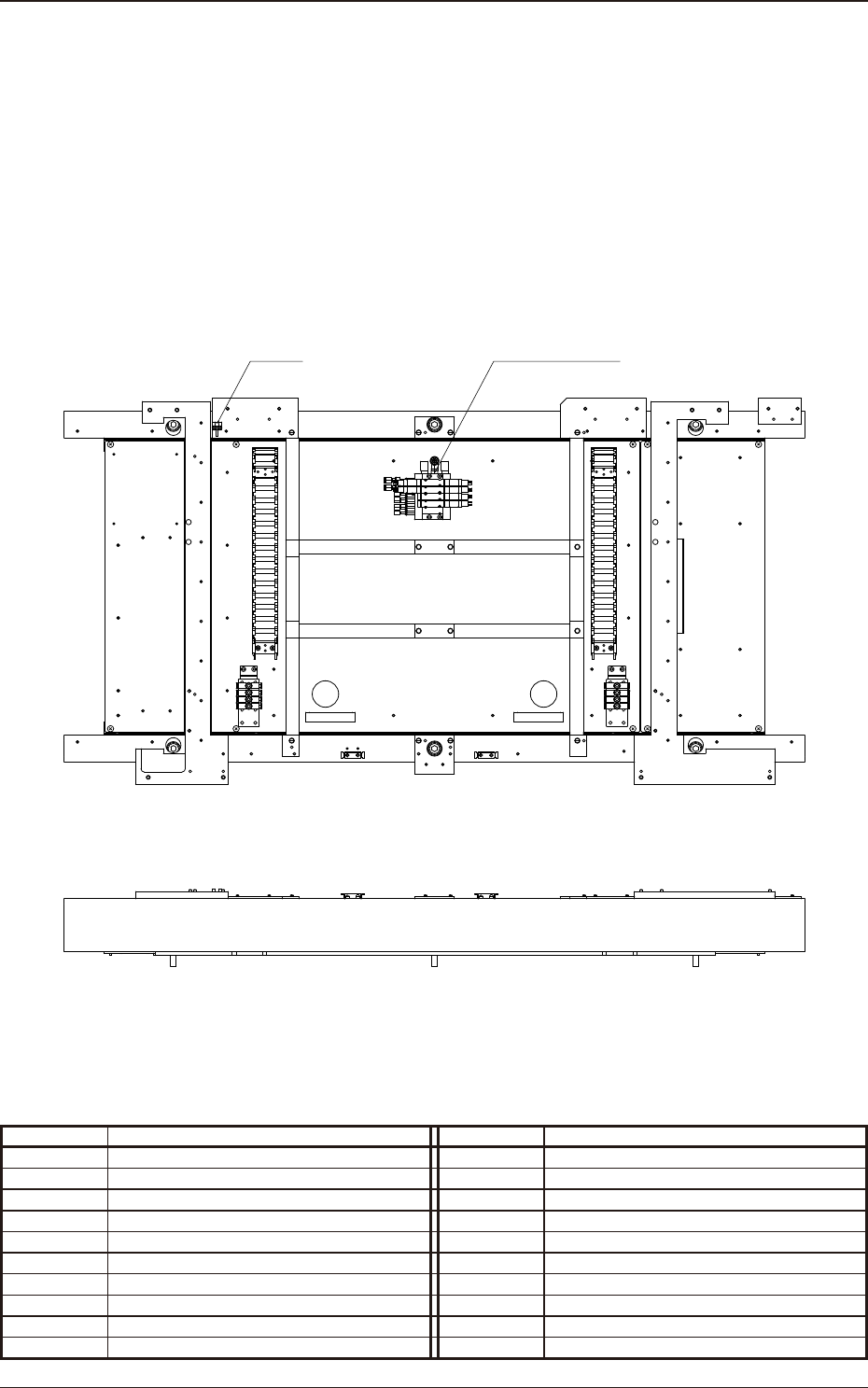

传送带部布局 ( 内侧 )
B1005 Y0810 to Y0815
Symbol Name Symbol Name
B1005 Movable Chute Origin Sensor
Y0810
Z-Clamp Left Cylinder Valve Descent
Y0811
Z-Clamp Left Cylinder Valve Ascent
Y0812
Z-Clamp Right Cylinder Valve Descent
Y0813
Z-Clamp Right Cylinder Valve Ascent
Y0814 Left PCB Stopper Lifting Valve
Y0815 Right PCB Stopper Lifting Valve
2-17
传感器及负载配置图
5OM-1752
1306-002

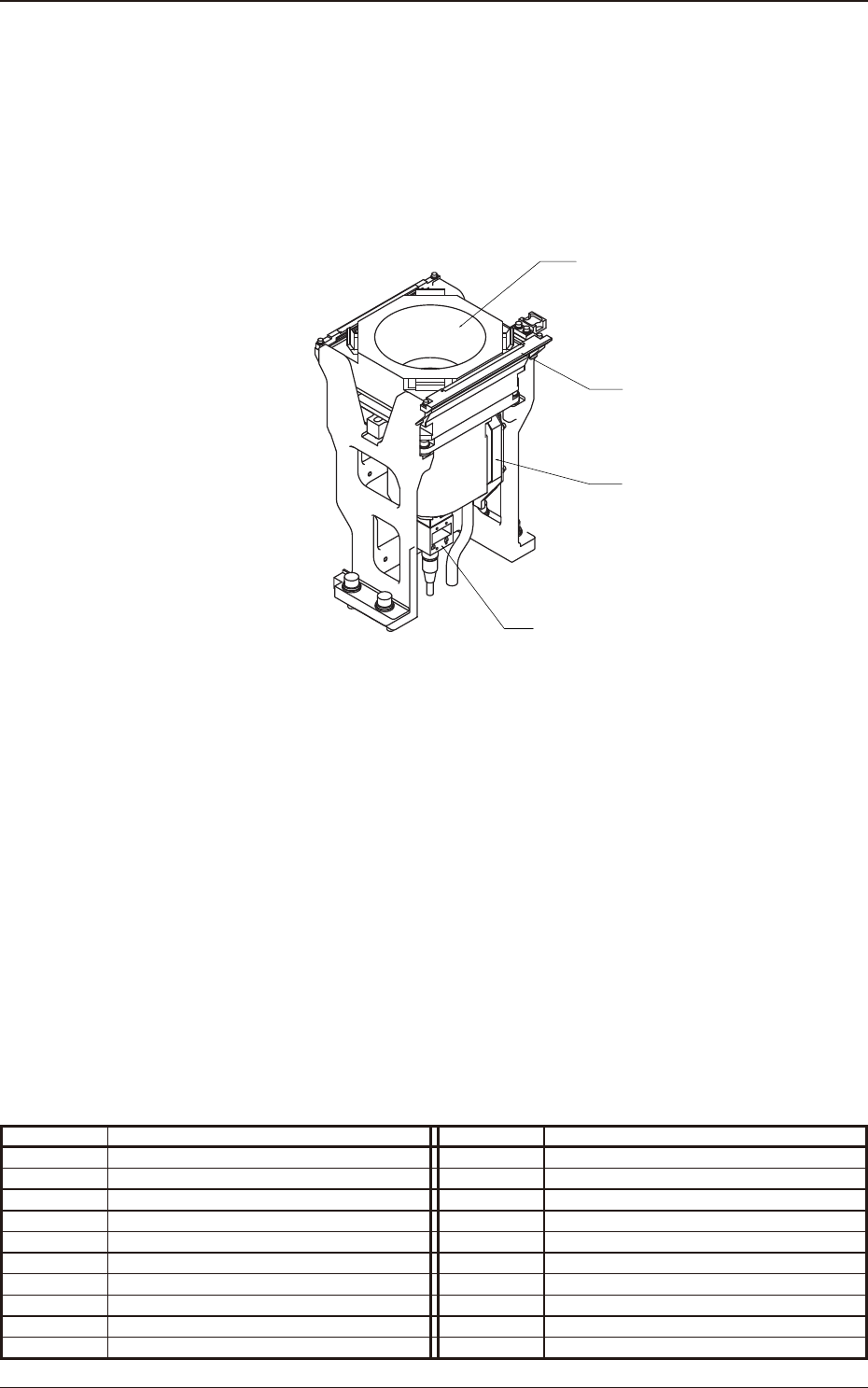

元件识别照相机布局
E191
E193
E192
B61
Symbol Name Symbol Name
B61 Component Recognition Camera
E191 Component Recognition Ring Lighting
E192 Component Recognition Coaxial Lighting
E193 Standard Mark Lighting A
2-18
传感器及负载配置图
5OM-1752
1306-002

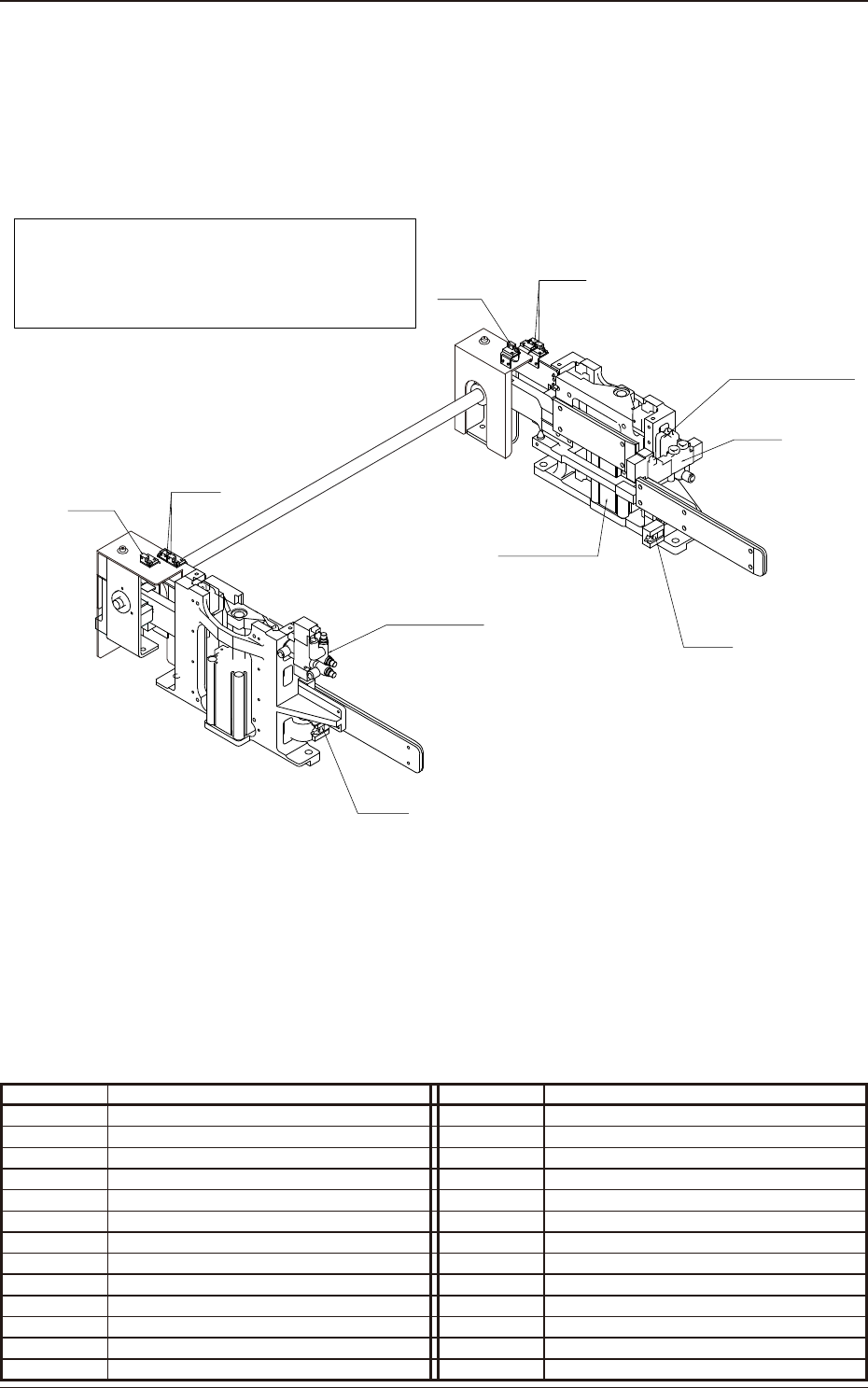

定位部布局
B0521
B0520
B0515
B0514
Y0632,Y0932
Y0933,Y0933
B0614,B0615
B0914,B0915
B0611
B0911
B0515,0521 Amp
B0514,0520 Amp
Y0642
Y0942
B0610
B0910
B0521
B0520
B0515
B0514
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending Y0932 Feeder Base 1 Ascending
Y0633 Feeder Base 2 Descending Y0933 Feeder Base 1 Descending
Y0642
PCB Positioning Unit Drop Prevention Stopper 2
Y0942
PCB Positioning Unit Drop Prevention Stopper 1
B0515 Pick-up Error Detection (Front) B0514 Pick-up Error Detection (Rear)
B0521 Feeder Disengaged Latch Detection (Front) B0520 Feeder Disengaged Latch Detection (Rear)
B0515,0521Amp
Amplier
B0514,0520Amp
Amplier
B0610
Feeder Base 2 Y Direction Positioning Check 1
B0910
Feeder Base 1 Y Direction Positioning Check 1
B0611
Feeder Base 2 Y Direction Positioning Check 2
B0911
Feeder Base 1 Y Direction Positioning Check 2
B0614 Cylinder Upper Limit Detection (Front) B0914 Cylinder Upper Limit Detection (Rear)
B0615 Cylinder Lower Limit Detection (Front) B0915 Cylinder Lower Limit Detection (Rear)
