4 Installation
4.2 Installing ASM ProcessEngine
Installation Guide ASM ProcessEngine 2.0 (Pre-Placement) (R18-1) 10/2018 17

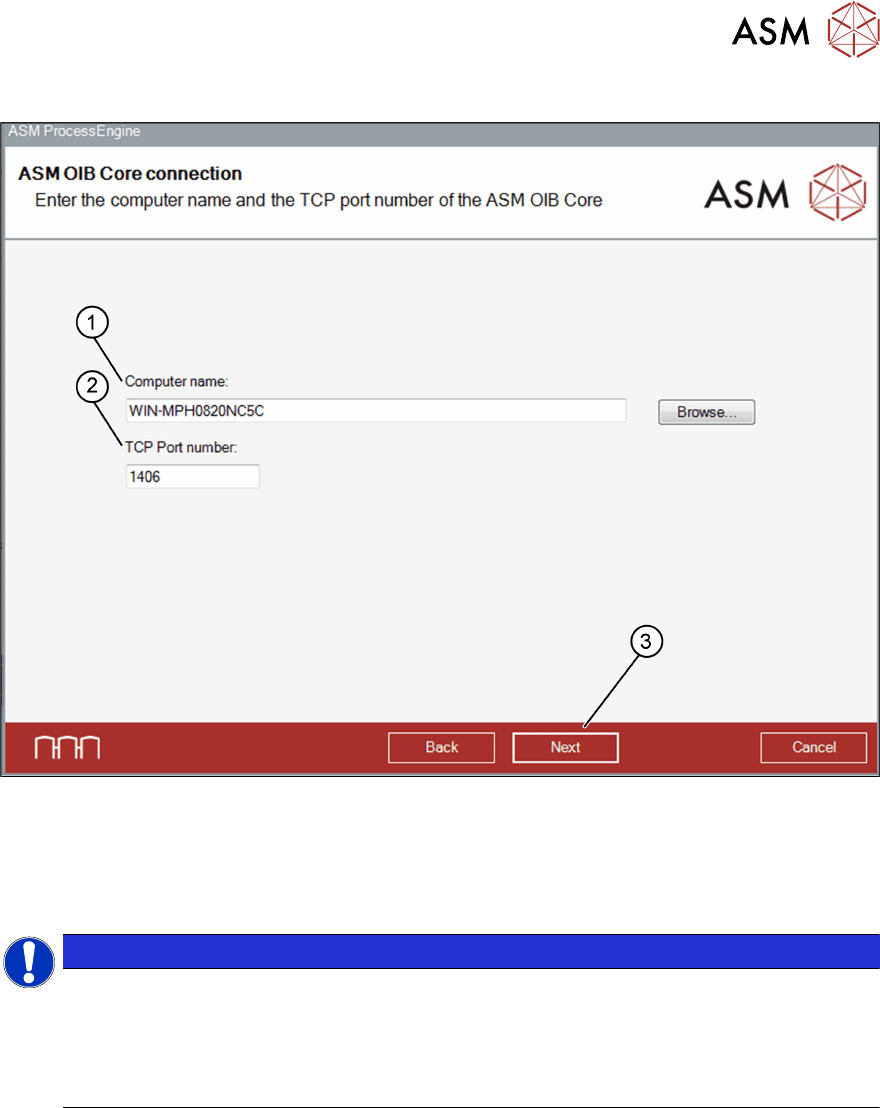

ASM OIB Core connection dialog box
► In the Computer name: field (1), browse to the relevant computer on which the OIB Core is
installed.
► In the TCP Port number: field (2), enter the port number of the specified computer. The de-
fault port number for the OIB Core is: 1406.
► Click Next (3) to continue.
NOTICE
Default user account
A default account and a default password will be created in the User Manager, if you install
the OIB Core Configuration for User Management package:
Account: ProcessEngineUser
Password: ProcessEngine
The SQL Server Login dialog box opens.
4 Installation
4.2 Installing ASM ProcessEngine
18 Installation Guide ASM ProcessEngine 2.0 (Pre-Placement) (R18-1) 10/2018

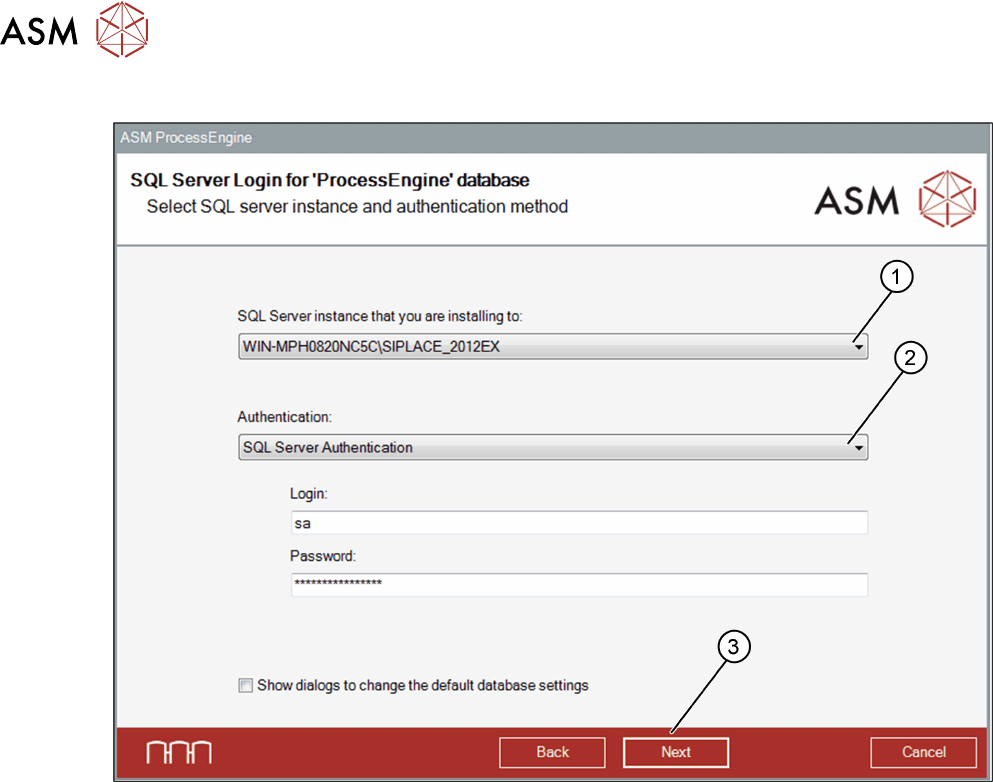

SQL Server Login dialog box
► From the list (1), select the SQL server instance on which the ProcessEngine database will be
installed.
► From the list (2), select the SQL Server Authentication… to connect to the SQL server.
► The default login name sa and the default password are set and should not be changed.
The database will be installed using this account.
► Click Next (3).
The Ready to install… dialog box opens.
4 Installation
4.2 Installing ASM ProcessEngine
Installation Guide ASM ProcessEngine 2.0 (Pre-Placement) (R18-1) 10/2018 19
Ready to install… dialog box
► Click Install (1), to start the installation of ASM ProcessEngine.
Once the installation procedure has finished, the Completed… dialog box opens.
