18 Component Supply: Component Bar Code Scanner for Set-Up and Refill Check (Option) Technical Data Connection Station computer Data entry Bar code scanner or keyboard Number of characters Max. 40 Restrictions Bar codes …

Component Supply:

Guard for Feeder Locations

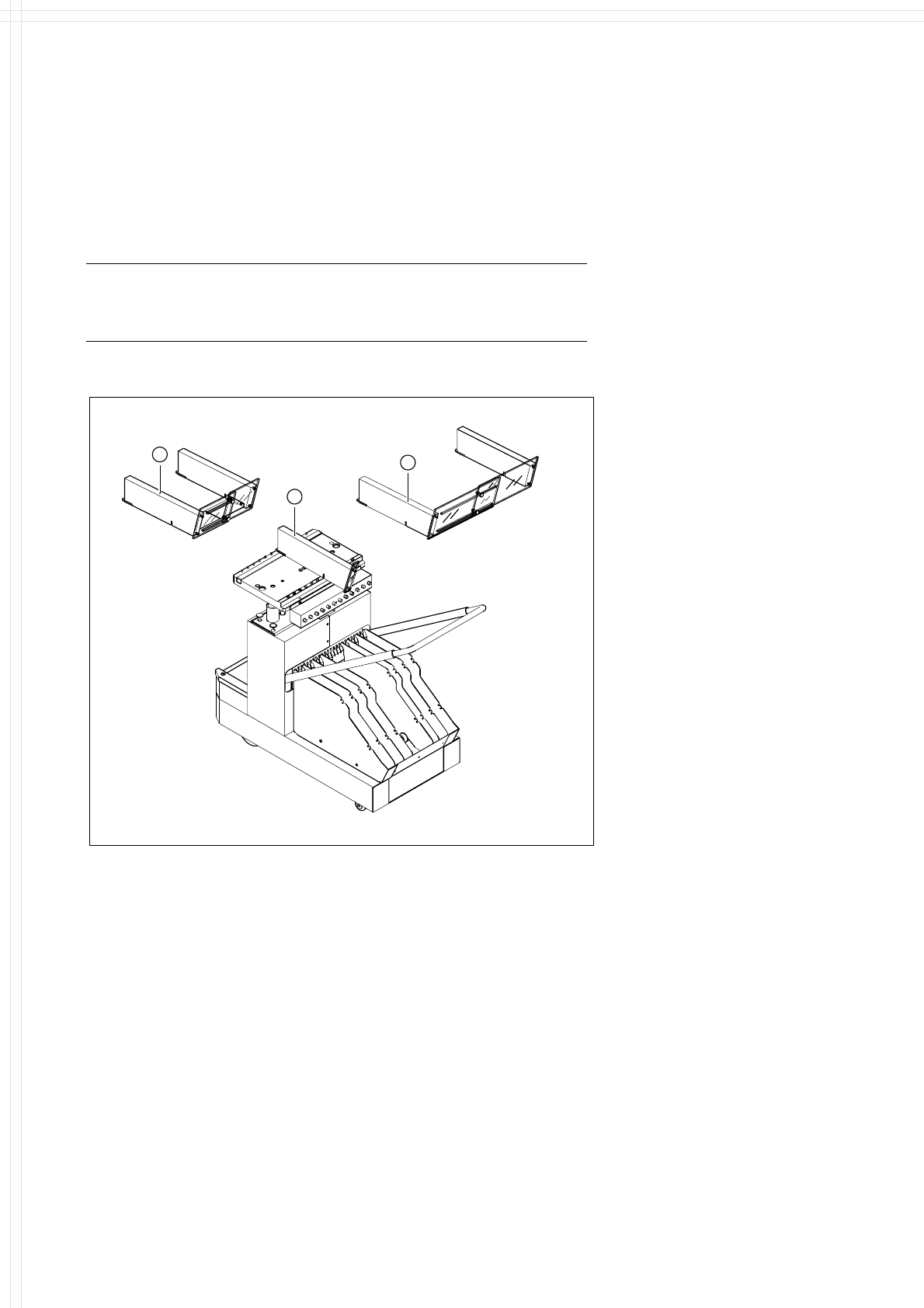

The following guard-variants can be used:

1 SIPLACE guard for 1 location

2 SIPLACE guard for 6 - 10 locations

3 SIPLACE guard for 11 - 20 locations

Description

Some local safety requirements

dictate that all feeder locations

must be equipped with feeders.

If the feeder set-up does not fill all

feeder locations, guards may be

used in place of the modules.

SAFETY

WARNING

Various Guards for Feeder Locations

Component Supply:

Component Bar Code Scanner for Set-Up and Refill Check

(Option)

Technical Data

Connection Station computer

Data entry Bar code scanner or keyboard

Number of characters Max. 40

Restrictions Bar codes beginning with number 1, 2,

3 or 4 and with less than 5 characters

Number of bar codes Max. 6 per component

Number of filters to blank out

data

Max. 1 per bar code

Preset types of codes Code 39 (standard or full ASCII),

Code 2 from 5 interleaved and normal,

Code 128, UPC/EAN/JAN codes

(more upon request)

Description

The component bar code scanner

enables a speedy, reliable set-up

and component replenishment

verification. To this end the bar

codes of the tracks (on the track

scale on the feeder table) and the

components allocated to them (bar

code labels on tapes, Bulk Cases,

etc.) are read in with a hand scan-

ner. An audible and optical signal

acknowledges a successful read-

ing operation. If a label is dam-

aged, the bar code can also be en-

tered at the keyboard.

The allocation of the components

to their respective track is de-

scribed in the set-up data. If the

data received from the bar code

scanner does not correspond with

the set-up data, an error message

is displayed.

Component

Control

Set-Up File

Track

Bar Code

If the set-up check is switched on,

it becomes a mandatory step in

the set-up process. If it is

switched off, the set-up check is

optional.

Component

Bar Code

Scanner

The scanner checks the corresponding track and the components.

Component Supply:

SIPLACE External Set-Up Station (Option)

Technical Data

Operating system Windows NT 4.0

Set-up check Per bar code scanner

Component table change Time expanded: 2 min / table side

Description

The component changeover tables

can be set up and checked at an

external SIPLACE set-up station

quickly and without machine idle

time. The costs for production in-

volving a wide variety of compo-

nents are greatly reduced. During

the bar code check outside the

machine, 10 minutes of machine

standstill are eliminated per set-up

change. All current data from up to

4 lines are accessible over a link to

the line computer via a Local Area

Network (LAN).

Line

LAN

Line Computer

PC for External set-up

LAN Scanner

Additional changeover tables are

required for optimal use of the

set-up station.

Serial Interface

Tape Reel

with

Bar Code

Mobile

Changeover

Table

Mobile

Changeover

Tables

Example for SIPLACE Set-Up Station
