28
Machine Criteria:
Mapping (Option)
Technical Data
Dimensions of the mapping
test plate
508 x 450 mm
2
(for single conveyor)
508 x 380 mm
2
(for flexible dual conveyor)
Number of measurement
points
13 x 11 (standard resolution)
26 x 21 (high resolution)
Ambient temperature
during calibration
+ 20° ± 3°C
Components of the option Test plate (special glass)
Calculation data (disk)
Case for secure storage
Description
Slight distortions of the gantry
axes cannot always be avoided
despite the highly stable machine
frame. With the aid of the map-
ping approach, the high placement
precision of the machine is main-
tained throughout its service life.
With this calibrating procedure,
which can be conducted quickly
and easily, the PCB camera recog-
nizes the fiducials on a mapping
calibration plate placed in its oper-
ating area. This board has highly
accurate marks on it. Any distor-
tions are located by comparing the
nominal grid on the mapping board
with the actual grid ”drawn” by
the placement head. These distor-
tions are then considered when
calculating all further positioning of
the X-/Y-axis and are thus com-
pensated for.
Nominal Grid of Mapping Plate and Actual Grid with
Deviations Due to Gantry
Corrected
Position
29
SIPLACE Software Architecture:
Line Programming System
Station Computer
Functions
Line Programming System for
Software
Data Preparation
Optimization
Line control
Line monitoring
Data management
LRL 503.xx (Linux) or
SIPLACE Pro 2.x (Windows XP)
Station Computer for
Software
Machine control
Machine monitoring
Machine operation
SW 503.xx
SW 505.xx
Description
Line Programming System
The Line Programming Systems
program, optimize and control
complete SIPLACE placement
lines. Consequently secondary
times are reduced and maximum
productivity is guaranteed.
To meet these targets, two
software programs can be used:
The Linux based LRL (Linux Line
Computer), or SIPLACE Pro,
which runs on standard PC
with Windows XP.
Station Computer
The station computer in conjunc-
tion with the machine controller
with its realtime capability per-
forms the following jobs: digital
control of the machine gantry
systems; control of PCB input
and output and of PCB transport;
monitoring functions, handling of
malfunctions and output of error
messages (including Help system);
ensuring the optimal quality of the
placement process.
For more details and information on
further software options please see
SIPLACE Software Specification.
Line Programming System
Station Computer
30
Technical Data:
Signal Interfaces
Signal Interface (20-Pin Ribbon Cable Connector)
to upstream station x3 to downstream station x4
Pin 13 GND 24 V Pin 10 Reserved
Pin 14 Arrived Pin 9 Reserved
Pin 15 Permission Pin 8 Reserved
Pin 19 Request Pin 4 +30 V DC
unsaturated
Pin 20 GND 24 V for request / re-
leased (contact separation)
Pin 5 GND 24 V
Pin 18 Released Pin 6 +24 V DC
Pin 12 Trouble signal loop Pin 11 Trouble signal loop
Pin 11 Pin 12
Pin 3 +24 V DC Pin 15 Permission
Pin 2 GND 24 V Pin 13 GND 24 V for per-
mission / arrived
(contact separation)
Pin 1 +30 V DC unsaturated Pin 14 Arrived
Pin 8 Reserved Pin 18 Released
Pin 9 Reserved Pin 19 Released
Pin 10 Reserved Pin 20 GND 24 V

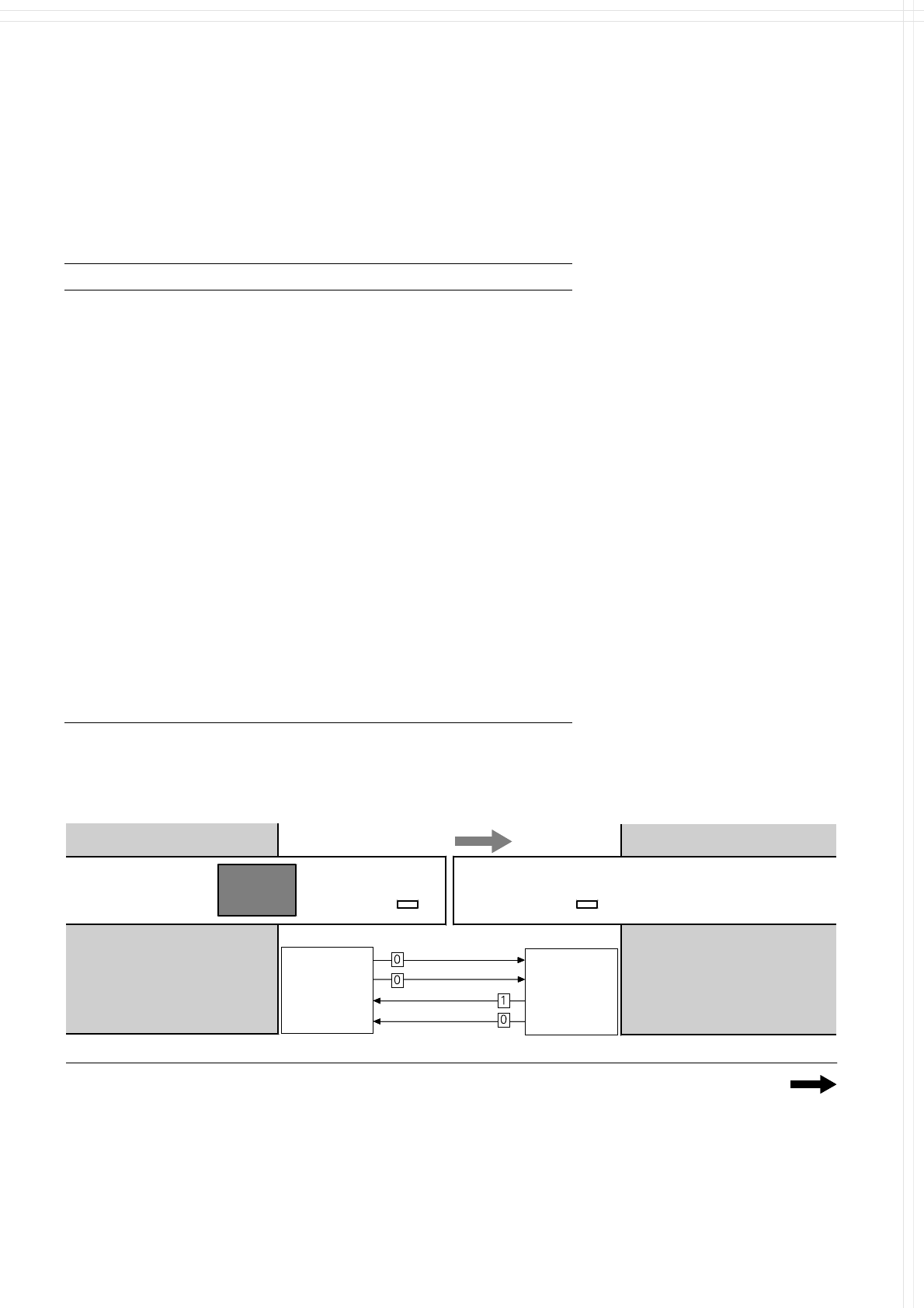

1. After switching-on the station
Transport Direction
PCB
Sensor
PCB
Sensor
Conveyor Section 1
Conveyor Section 2
Conveyor 1 is On Conveyor 2 is Off
Station n
transports
PCB
to delivery
Station n+1
is ready to
receive PCBs
Requirement
Delivery
Permission
Receival
Requirement
Delivery
Permission
Receival
