32 Technical Data: Connections Connections and Energy Required Mains voltage requirement 219/380 V ∼ / 230/400 V ∼ / 239/415 V ∼ / 133/230 V ∼ / 117/204 V ∼ ± 5%, 50/60Hz Power 4 kW Circuit braker 3 x 16 A (380 / 400 / 4…
31
Technical Data:
Signal Interfaces

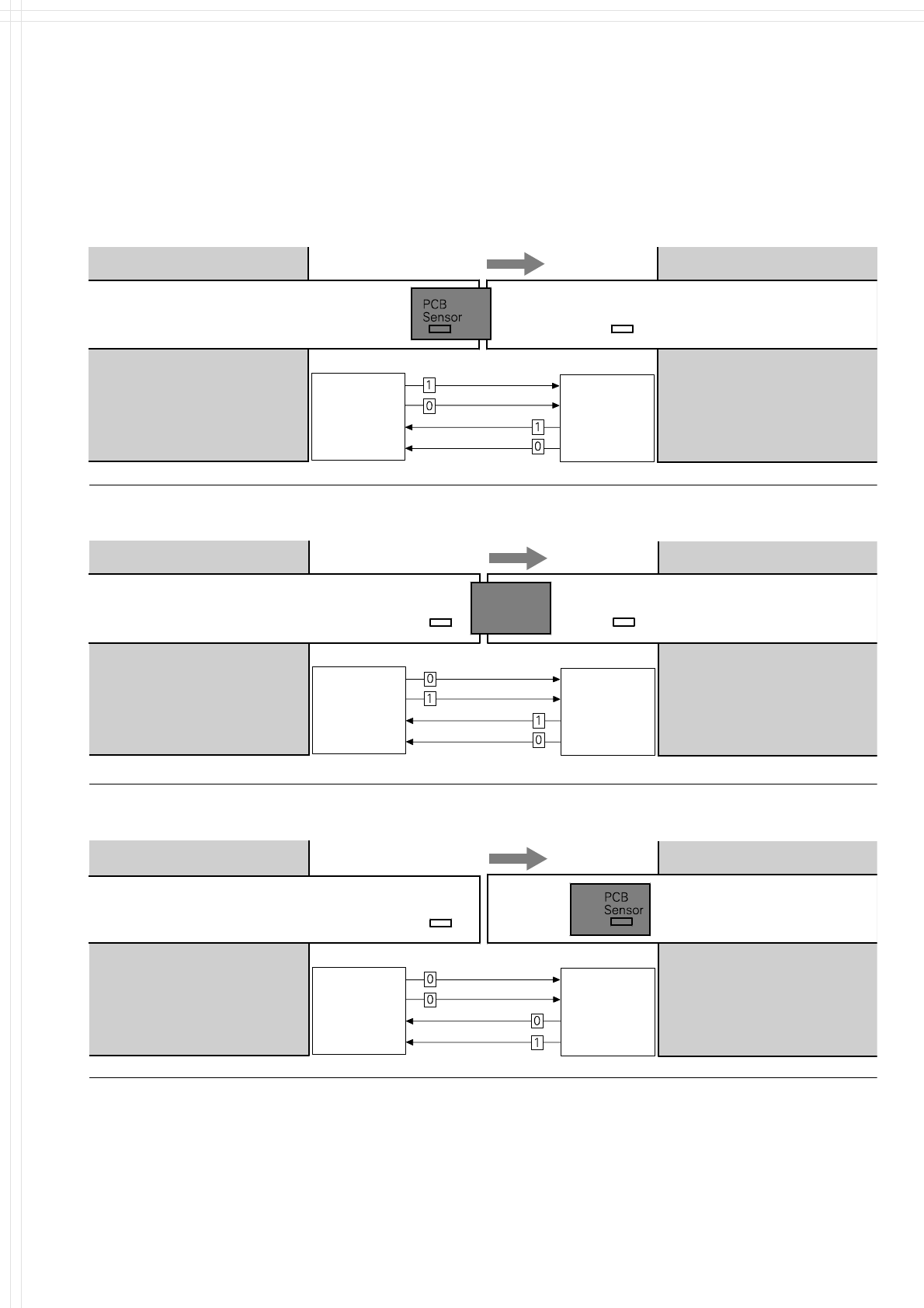

2. PCB handling has started
Transport Direction
Conveyor 1 is On Conveyor 2 is On
Conveyor Section 1
Conveyor Section 2
Station n
delivers PCB
to station n+1
Station n+1
waits for PCB
from station n
PCB
Sensor
Requirement
Delivery
Requirement
Delivery
Permission
Receival
Permission
Receival
Transport Direction
Conveyor Section 1
PCB
Sensor
Conveyor Section 2
PCB
Sensor
Station n
has just
delivered PCB
Station n+1
waits for PCB from
station n, but has
not received it
Requirement
Delivery
Permission
Receival
Requirement
Delivery
Permission
Receival
3. PCB is at delivery
Conveyor 1 is Off Conveyor 2 is On
Conveyor 1 is Off Conveyor 2 is On
Transport Direction
Conveyor Section 1
PCB
Sensor
4. PCB transport is finished
Conveyor Section 2
Station n
Station n+1
has just received
the PCB
Requirement
Delivery
Permission
Receival
Requirement
Delivery
Permission
Receival
A detailed documentation of the
PCB transport signal interface is
available on request.
32
Technical Data:
Connections
Connections and Energy Required
Mains voltage requirement
219/380 V∼ / 230/400 V∼ / 239/415 V∼ /
133/230 V∼ / 117/204 V∼ ± 5%, 50/60Hz
Power 4 kW
Circuit braker 3 x 16 A (380 / 400 / 415)
3 x 32 A (204 / 230)
Power outage max. 20 ms
Compressed air requirements 6.5 - 10 bar, 950 Nl/min, tube ¾"
Vacuum pump (Option) 6 - 10 bar, 400 Nl/min, tube ¾"
Compressed Air Specification
Particles: max. particle size by density,
based on ISO/DIS 8573-1 Class
Particle size
Particle density
0.1 µm
0.1 mg/m³
Dew: Pressure dewpoint
Dewpoint
Class 4
+ 3° C
Oil: Max. oil content
Particle density
Class 1
0.01 mg/m³
Power Supply
5 m cable with
CEKON-connector
3 x 16 A
PC
+ LAN
+ Signal Interface
Compressed Air
Transport Inlet
Transport Outlet
PCB Transport
Direction
33
Technical Data:
Dimensions and Set-Up Conditions
Values
Length 2385 mm
Width of basic module 2022 mm
Width with four changeover tables 2860 mm
Height with warning lamp 1700 mm standard height / 830 mm
1770 mm optional / 900 mm
1800 mm optional / 930 mm
1820 mm SMEMA height / 950 mm
a
Weight of basic module 3000 kg
Weight without transport in-/outlet 2800 kg
Weight with four changeover tables 3500 kg
Room temperature
Humidity
Between 15° and 35°C
30 - 80%, on average not higher than
45%, so that no condensation can
ever form on the machine
Maximum sound level 74 dB
A
a) SMEMA interface can be adopted by software.
All Units in mm
1700
Compressed Air
PCB Transport Direction
PCB Conveyor Height
830 ± 15 mm (standard)
900 ± 15 mm (option)
930 ± 15 mm (option)
950 ± 15 mm (option)
SMEMA
Power
Supply
2920
Handle
to handle
800
1541
2022
2385
2860
with Tape
Container
Foot height 120 mm
SIPLACE HS-60
