33 Technical Data: Dimensions and Set-Up Conditions Values Length 2385 mm Width of basic module 2022 mm Width with four changeover tables 2860 mm Height with warning lamp 1700 mm standard height / 830 mm 1770 mm optional…
32
Technical Data:
Connections
Connections and Energy Required
Mains voltage requirement
219/380 V∼ / 230/400 V∼ / 239/415 V∼ /
133/230 V∼ / 117/204 V∼ ± 5%, 50/60Hz
Power 4 kW
Circuit braker 3 x 16 A (380 / 400 / 415)
3 x 32 A (204 / 230)
Power outage max. 20 ms
Compressed air requirements 6.5 - 10 bar, 950 Nl/min, tube ¾"
Vacuum pump (Option) 6 - 10 bar, 400 Nl/min, tube ¾"
Compressed Air Specification
Particles: max. particle size by density,
based on ISO/DIS 8573-1 Class
Particle size
Particle density
0.1 µm
0.1 mg/m³
Dew: Pressure dewpoint
Dewpoint
Class 4
+ 3° C
Oil: Max. oil content
Particle density
Class 1
0.01 mg/m³
Power Supply
5 m cable with
CEKON-connector
3 x 16 A
PC
+ LAN
+ Signal Interface
Compressed Air
Transport Inlet
Transport Outlet
PCB Transport
Direction
33
Technical Data:
Dimensions and Set-Up Conditions
Values
Length 2385 mm
Width of basic module 2022 mm
Width with four changeover tables 2860 mm
Height with warning lamp 1700 mm standard height / 830 mm
1770 mm optional / 900 mm
1800 mm optional / 930 mm
1820 mm SMEMA height / 950 mm
a
Weight of basic module 3000 kg
Weight without transport in-/outlet 2800 kg
Weight with four changeover tables 3500 kg
Room temperature
Humidity
Between 15° and 35°C
30 - 80%, on average not higher than
45%, so that no condensation can
ever form on the machine
Maximum sound level 74 dB
A
a) SMEMA interface can be adopted by software.
All Units in mm
1700
Compressed Air
PCB Transport Direction
PCB Conveyor Height
830 ± 15 mm (standard)
900 ± 15 mm (option)
930 ± 15 mm (option)
950 ± 15 mm (option)
SMEMA
Power
Supply
2920
Handle
to handle
800
1541
2022
2385
2860
with Tape
Container
Foot height 120 mm
SIPLACE HS-60
34
Technical Data:
Transporting and Commissioning
Transport dimensions
Length with packing
Width with packing
Height with packing
2560 mm
2380 mm
1495 mm
Description
Transporting
Use a fork lift with a lifting force
of 6 tons to move the SIPLACE
HS-60 placement machine. Forks
2.5 m long are required for a
packed machine, 2 m for an un-
packed one.
Center of gravity (X,Y coordinates) 0 mm, 0 mm
Floor load (more details about floor characteristics on request)
Total weight of equipped machine 3.5 metric tons
Permissible surface load sub-floor
(load per unit area on mounting feet)
(based on assumed distribution of
machine weight to three machine leg-
s
a
)
11.25 kg/cm
2
a) Worst case scenario; 6 legs per machine installed, area per leg: 104 cm
2
.
Pick the machine up with the fork
lift at the locations especially de-
signed and identified as being for
this purpose.
When setting up the SIPLACE
HS-60, make certain that the
surface it is placed on possesses
the required load bearing capacity.
Commissioning
For commissioning, install the fol-
lowing components which were
not premounted upon delivery:
Footprints
PCB Transport Direction
Dimension of
Transport Box
X
Monitor
Keyboard
Warning lamp
Component changeover tables.
696
(0, 0)
Y
487
388
All Units in mm

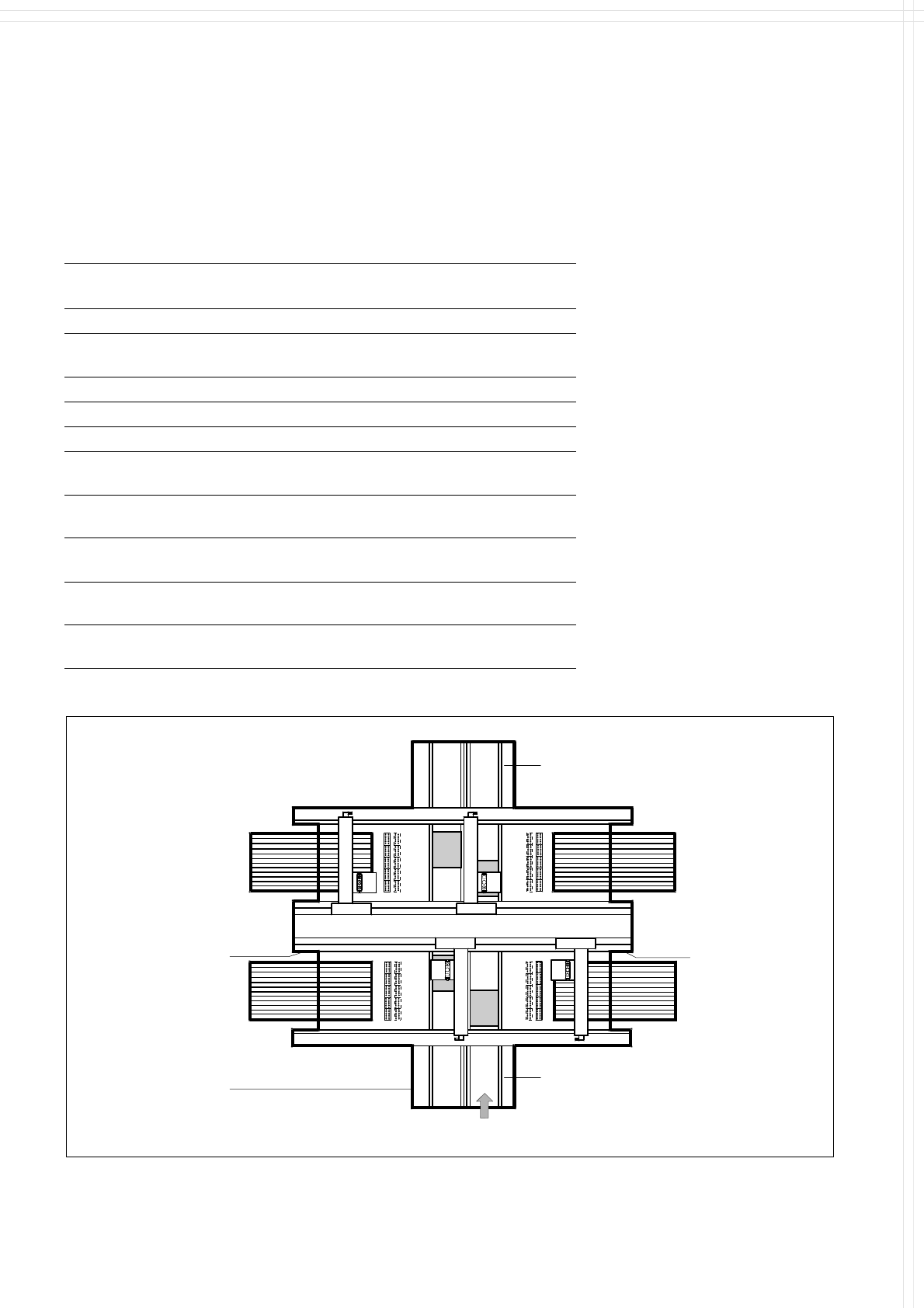

Center of Gravity of SIPLACE HS-60
