3
Machine Description
Technical Data
Type of placement head 12-Nozzle Collect & Place Head
Number of gantries 4
Benchmark placement rate
a
60,000 cph
Component Range 0.6 x 0.3 mm
2
(0201) to 18.7 x 18.7 mm
2
Max. placement accuracy (at 4 σ)
a
80/75 µm
PCB dimensions (L x W)
Single conveyor
Dual conveyor
Dual conveyor in
single conveyor mode
50 x 50 mm
2
to 368 x 460 mm
2
/
2" x 2" to 14.5" x 18";
LBO
b
: 50 x 110 mm
2
to 610 x 460 mm
2
,
width up to 508 mm on request.
50 x 50 mm
2
to 368 x 216 mm
2
/
2" x 2" to 14.5" x 8.5";
LBO
b
: 50 x 110 mm
2
to 610 x 216 mm
2
,
width up to 242 mm on request.
50 x 50 mm
2
to 368 x 380 mm
2
/
2" x 2" to 14.5" x 15";
LBO
b
: 50 x 110 mm
2
to 610 x 380 mm
2
,
width up to 430 mm on request.
Feeding capacity 144 tracks, 8 mm tape
Component table Quick changeover table with integrated
wheels, reel holder and scrap bin
Types of Feeder modules Tapes, Bulk Cases, Surf Tape feeders,
application-specific OEM feeders
Operating system Microsoft Windows / RMOS
Power 4 kW
Compr. air requirements 6.5 - 10 bar, 950 Nl/min, tube ¾"
Vacuum pump (Option) 6 - 10 bar, 400 Nl/min, tube ¾"
a) As defined in Scope of Service and Delivery SIPLACE.
b) Long Board Option.
Description

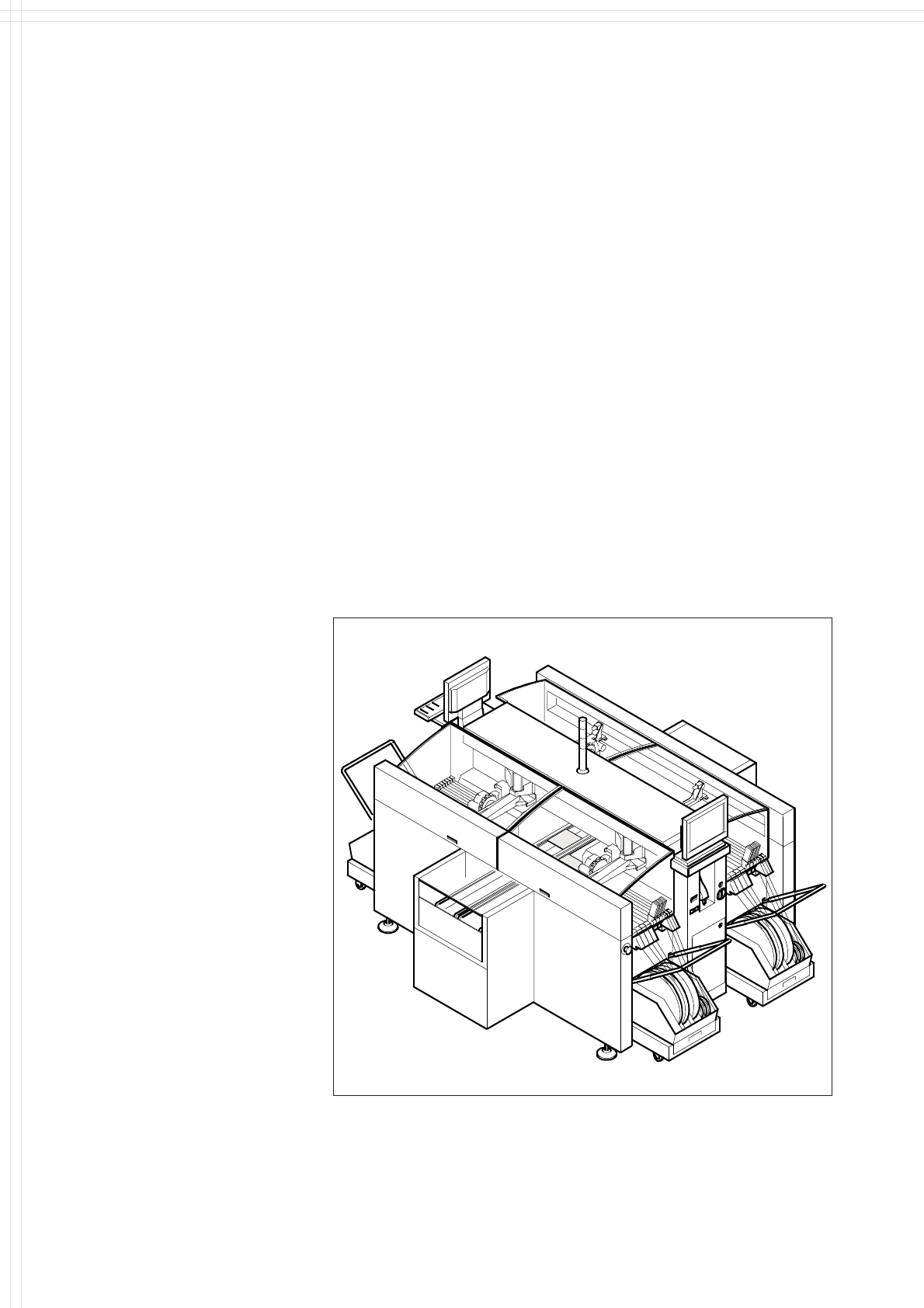

The SIPLACE HS-60 SMD place-
ment system combines very high
placement speed with both accu-
racy and flexibility.
SIPLACE HS-60 machines are
equipped with four X-Y-main gan-
tries. Each gantry features a star-
shaped
12-Nozzle Collect & Place Head. The
placement heads alternately pick up
components from a stationary feeder
bank and place these components
on the stationary PCB.
Due to the efficient heads as well as
the high acceleration the benchmark
placement rate of 60,000 cph of the
SIPLACE HS-60 is uncompared.
The SIPLACE HS-60 funds upon the
modular SIPLACE platform and thus
shows distinct advantages:
Component tapes of all sizes
can be replenished by splicing a
new reel of components to the
end of a depleting reel. This eli-
minates machine stoppage due
to component replenishment.
Stationary, vibration-free feed-
ers ensure a reliable pick-up of
even the smallest components
(e.g., 0201 chips).
Thanks to the Collect & Place
principle the path can be mini-
mized and the sequence of
placement optimally adjusted.
With the linear drive SIPLACE
HS-60 reaches an impressive
placement accuracy and lowest
dpm rates.
Speed coupled with economic ef-
ficiency and set-up reliability is the
SIPLACE HS-60´s recipe for suc-
cess. Components are pre-picked
as the PCB is transported into the
placement area. The placement
sequence is optimized for speed:
While one Collect & Place Head is
placing components, the second
head is picking up the next series
of components to be placed.
Among others, the following
options are available for the
SIPLACE HS-60:
Additional changeover tables
enables the reduction of job
set-up time increasing machine
utilisation.
Dual Conveyor eliminates the
non-productive PCB loading
times thus increasing machines
operating efficiency.
4
Automatic nozzle changers for
both changeover and storage of
nozzles.
PCB Barcode Reader used for
product controlled production
changeover.
Component Bar Code Scanner
used for feeder set-up verification.
XXXCeramic Substrat Centering.
Component sensor.
