MEMO
MODEL CV-G100
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
RE-1 list-1
51 4230251904 FUSE 250V 1.6A 1 -F060 806RE-110-151 4S300028
52 6301290935 FUSE HOLDER 1 806RE-110-152 4J200037
53 6301290959 ACCESSORY,WIRING 1 806RE-110-153 23N30631
54 6300002713 SWITCH,BUTTON 1 -S161(-H161)
806RE-110-154 4S1B0032
55 6301031507 ACCESSORY,SW 1 806RE-110-155 23H20062
56 6300689723 RELAY 1 -K80 806RE-110-156 4S200097
57 6300492064 SOCKET 1 806RE-110-157 4J120082
58 6300854152 RELAY 1 -K81,-K82,-K83
806RE-110-158 4S200112
59 6300001051 BRACKET,WIRING 2 806RE-110-159 23N10004
60 6301343983 CORD 1 806RE-010-160 4W203098
61 6301347578 CORD 1 806RE-010-161 4W203120
62 6300763485 NAME PLATE,PARTS 1 806RE-110-162 6P441037
63 6301325064 RAIL,WIRING 1 806RE-110-163 23N00100
64 4110435004 SCR PAN 4X8 2 M4X8 PAN 221E0510
65 4110417208 SCR PAN 3X5 1 M3X5 PAN
66 4110864408 WASHER SPR 3 1 SW3 F 221H0280
67 4111191909 WASHER V 3X7X0.5 1 FW3 F 221H0311
68 4110081706 WASHER SPR 4 2 SW4 F 221H0283
69 4111192104 WASHER V 4X9X0.8 2 FW4 F 221H0314
RE-1
MEMO
0801-002
G -S013-16,17,18,19 G -S013-16,17,18,19

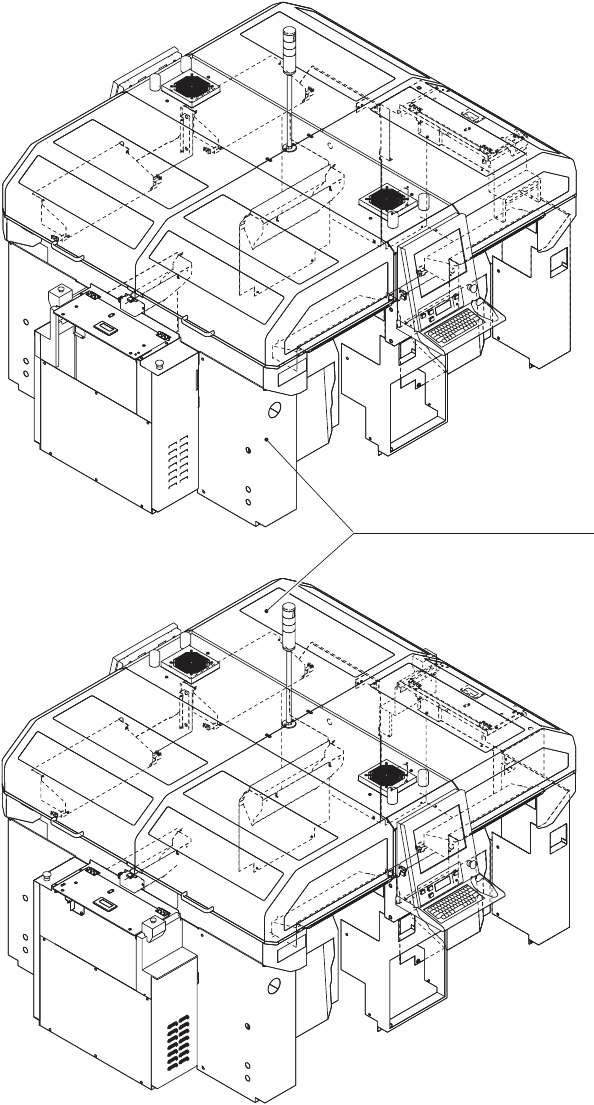

リサイクルコンベア取付
Main Machine Modification For
本体対応
Attaching Recycle Conveyor
注)
イラストはGXH本体にリサイクルコンベアを装着した場合の、
本体対応箇所を示しております。
BLOCK1,4
BLOCK2,3
Notice) The illustration shows the locations to be treated in t
he main unit
when the recycle conveyor is mounted onto the GXH Main Machine.
カバー部Fig.G COVER SECTION
UNIT
