1 – 6 91 5 5 1 8 81 7 1 0 01 1 0 0 1 90 4 9 0 4 Color ring for nozzle family Color ring for nozzle size color point The color coding of the nozzle s ty pes is indicated by color bars ne xt to the pic tures of the nozzles…
1 – 5
C&P-6
Collect & Place 6-Segment
C&P-12
Collect & Place 12-Segment
C&P-20
Collect & Place 20-Segment
Twinhead
The names of the package form (GF) files correspond to the
original file names in the package form (GF) editor of the line computer.
The nozzles that can be used for the package form(s) are shown in the four main columns
headed “Placement Head C&P-6, C&P-12, C6P-20, Twin”.

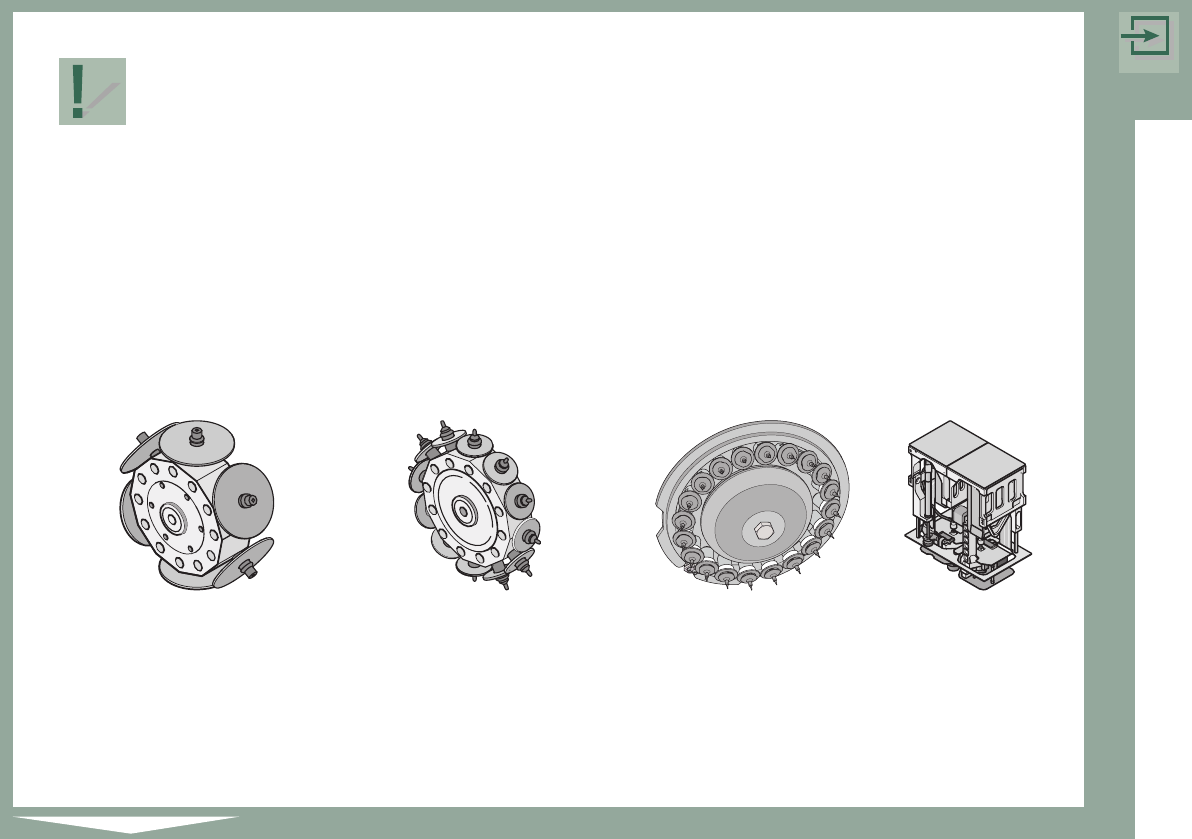

The following placement heads are used on SIPLACE machines of the X-Series:
Introduction
1 – 6
915
518
817
1001
1
0
0
1
904
9
0
4
Color ring for
nozzle family
Color ring for
nozzle size
color point

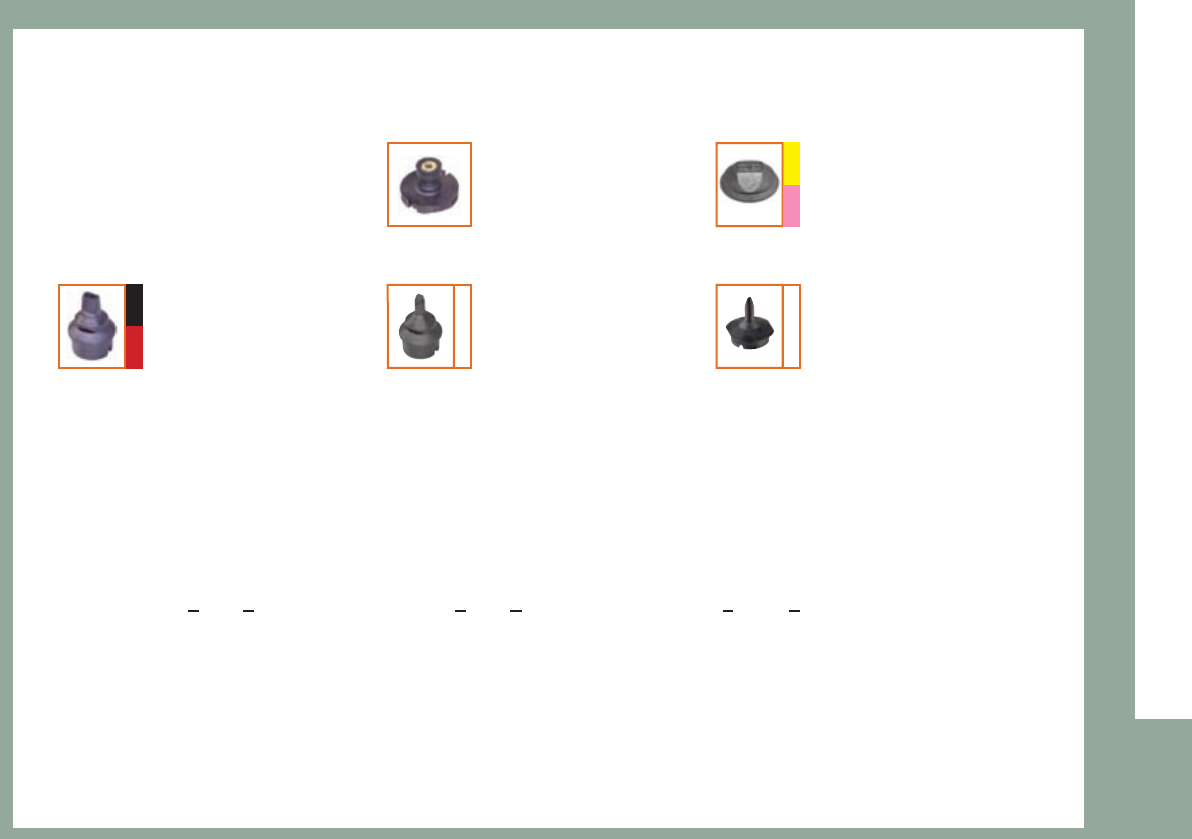

The color coding of the nozzles types is indicated by color bars next to the pictures of the nozzles.
Here are some examples:
Color ring for
nozzle family
Color ring for
nozzle size
Numbercode
nozzle family
nozzle size
Nozzle Series

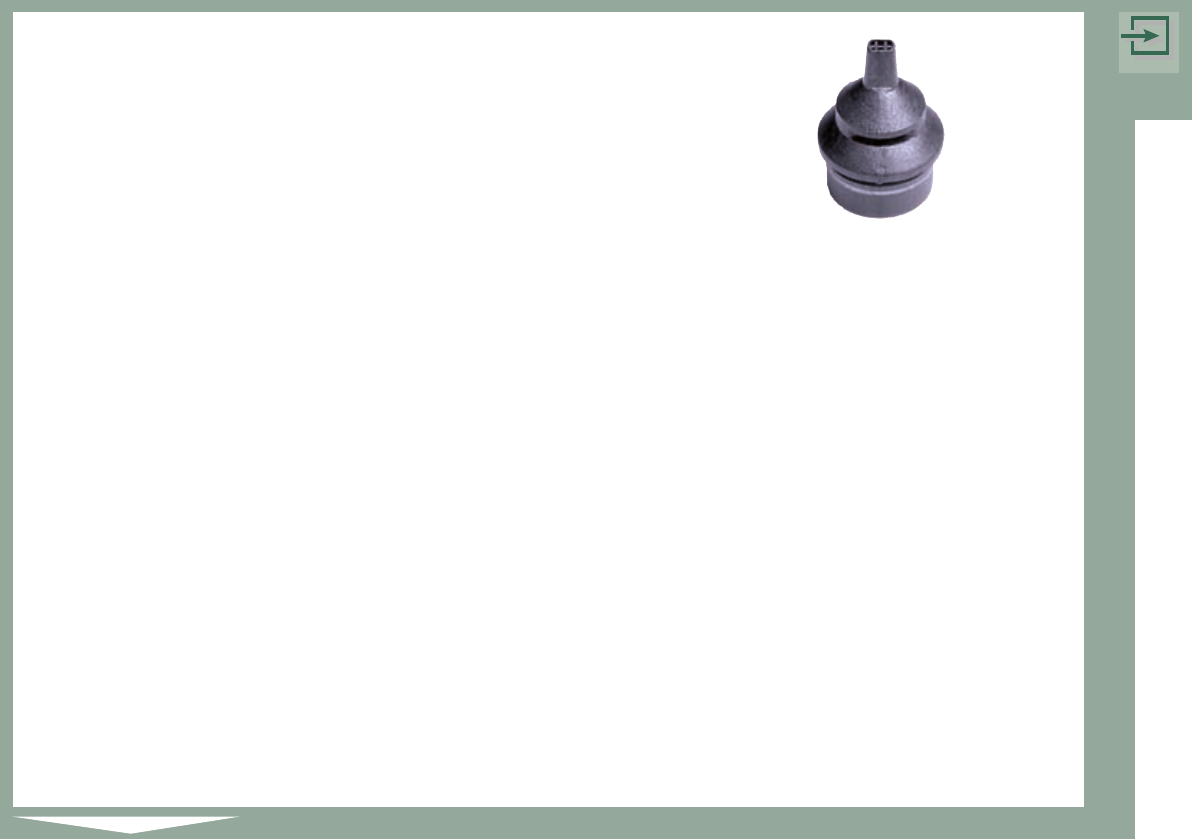

The nozzles are categorized in different nozzle series. The nozzle series can be identified
by the hundreds digit of the type number.
Example: type 516 = 5xx, nozzle series; type 920 = 9xx, nozzle series, type 1033 = 1xx, nozzle series etc.
Numbercode
nozzle family
material
nozzle size
1 – 7
Nozzle Families and Color Coding
5xx Nozzle Series:
The nozzles of the 5xx series are marked with a color point and equipped with
an adapter.
8xx and 9xx Nozzle Series:
For better differentiation between the nozzle types there are two color rings around the side of the nozzle
base. The first color ring indicates the nozzle size, and the second indicates the nozzle material and thus the
nozzle family. This identification is no more valid for ceramic nozzles (9xx).
9xx Ceramic Nozzle Series:
To make the recognition even easier and to avoid accidental disposal this ceramic nozzle family is marked with
3 digit numbers.
1xxx Nozzle Series:
All nozzles of this family have a 4-digit nozzle type identification number directly on the nozzle.
